Dash Fabrication – Part 1¶
Since the interior was gutted, I needed a way to mount critical electronics and gauges. I decided to fabricate my own dash out of sheet metal.
Info
This post was originally published in 2018, and has been adopted to this static-site from wordpress. The build has since been retired.

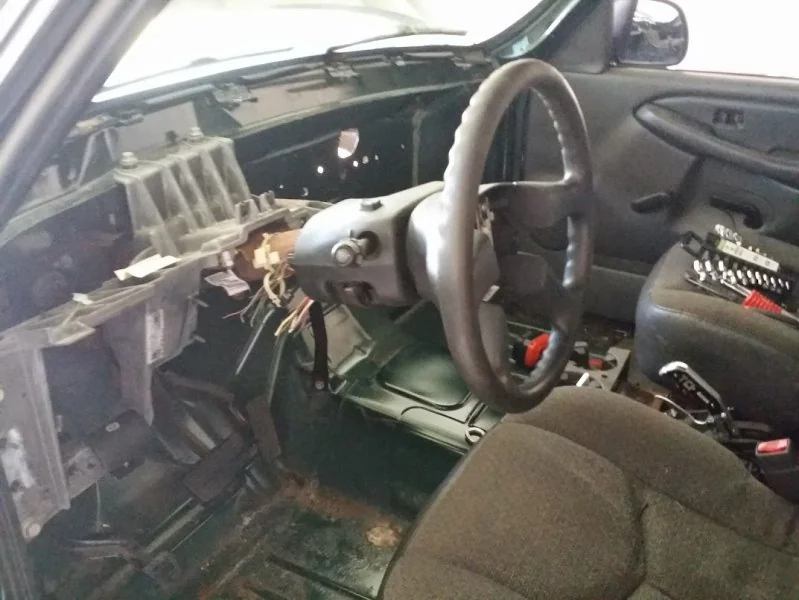

The current state of the interior when I started the fabrication.
The dash was fabricated out of 16ga cold-rolled steel. In hindsight, I could/should have used 6061 aluminum for only around 40$ more. However- I was satisfied with the end result, which will be seen in later posts.

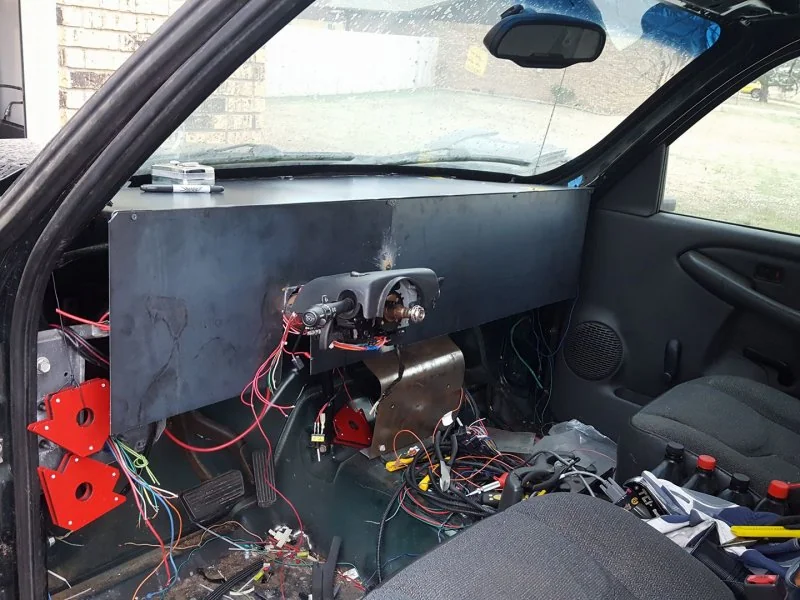

Here is the initial draft of the dash being mocked up. Ignore the flux-core mig splatter, this work was completed before I owned my TIG welder. Notice the rusty piece of sheet metal in the center. This was the original fuse-box assembly I created.

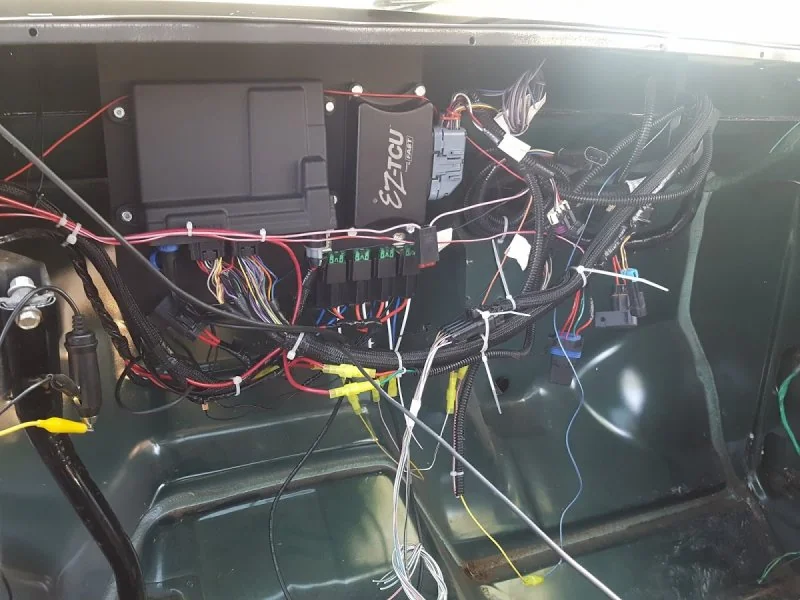

A panel was mounted underneath the dash to hold the ECU and TCU. I created a simple cable management hook to hold the excess wire lengths from the passenger's side floorboard.

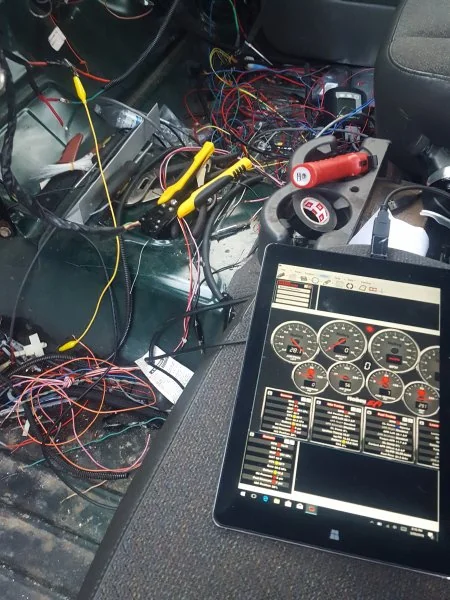

A image of some of the wiring mess as i was working on doing the electronics work.

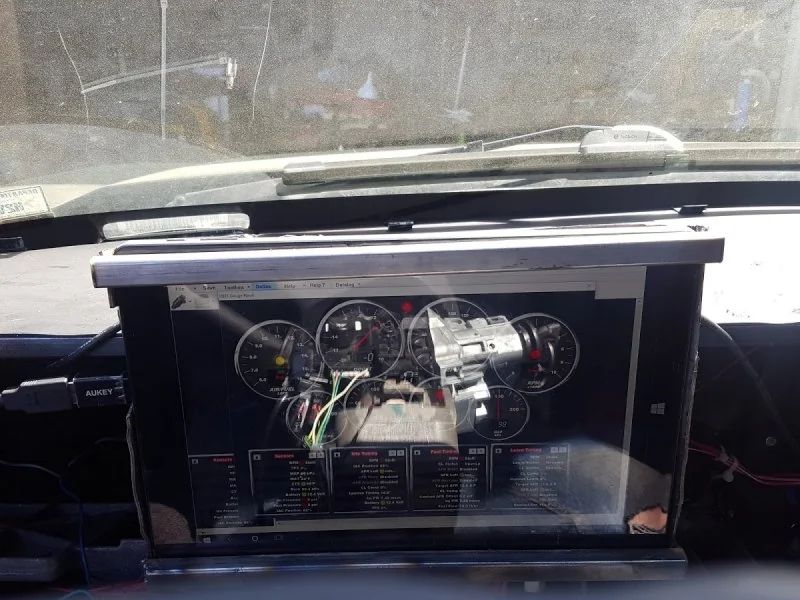

I created a temporary tablet mount for my cheap tablet, out of some of the excess steel I had laying around. This was utilized before I had a proper dash instrumentation.
