Turbo downpipe fabrication

While originally it was discussed to direct the exhaust straight out the hood. I changed my mind and decided to utilize a full-exhaust system. The first job was to fabricate a downpipe to direct the hot exhaust under the cab, instead of out the hood.

Info

This post was originally published in 2018, and has been adopted to this static-site from wordpress. The build has since been retired.

The shop who installed the hot side, provided me with a downpipe from another project which was not being utilized. I used this piece of scrap tubing as the starting point for my downpipe.

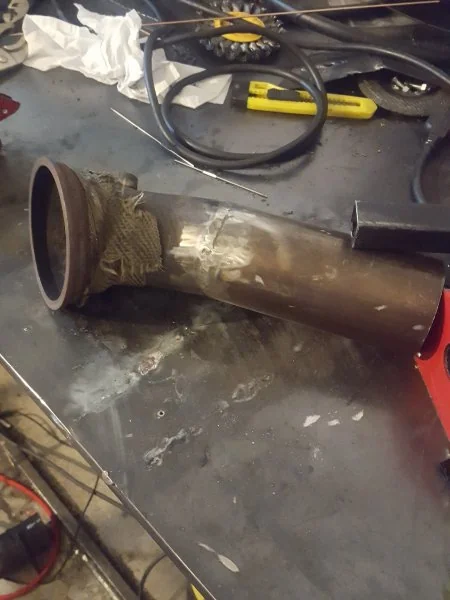

After some strategic cuts, I was able to get the downpipe routed in the proper direction. After some strategic cuts, I was able to get the downpipe routed in the proper direction.

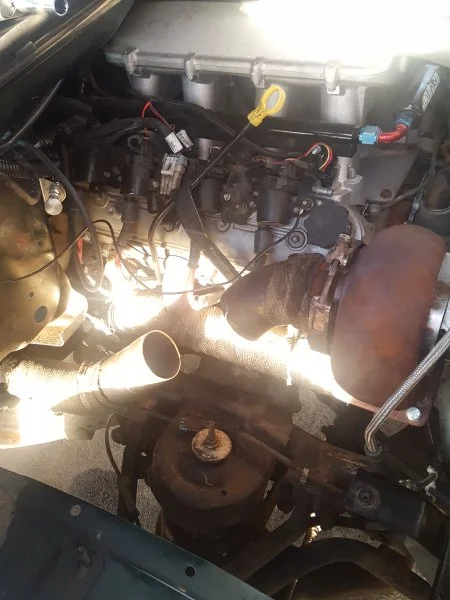

A section welding to the output-side of the turbo. A section welding to the output-side of the turbo.

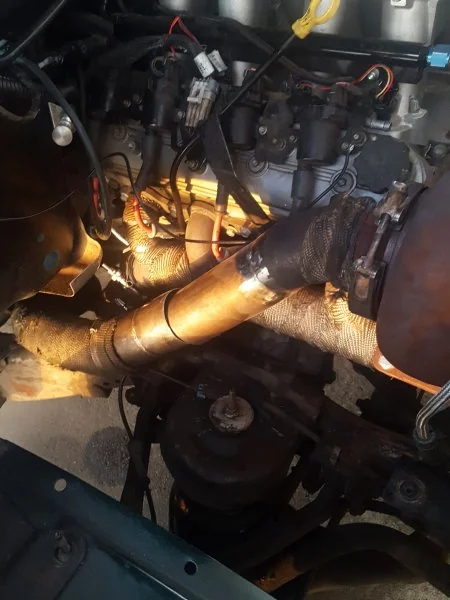

Final fitting looks promising. Final fitting looks promising.

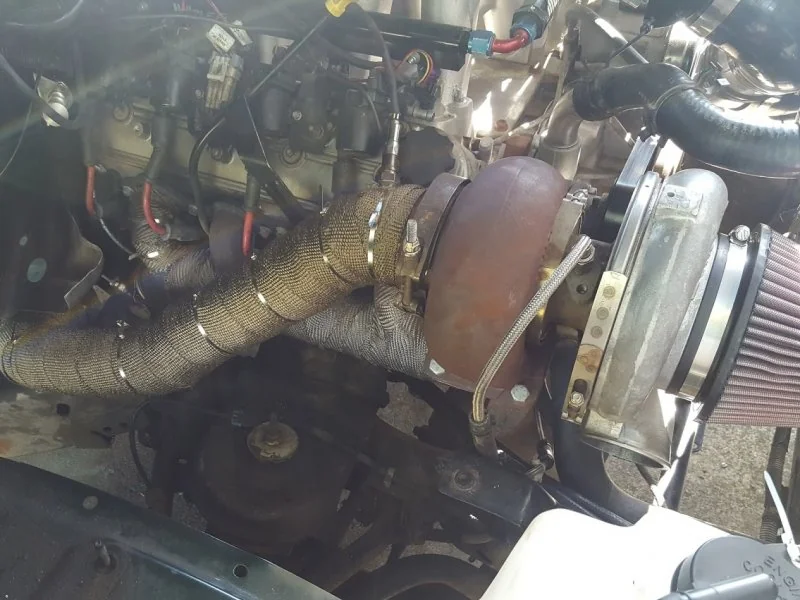

Finished downpipe wrapped in titanium exhaust wrap. I completed welding the pipe, and wrapped everything with titanium exhaust wrapping. Life pro tip: wear protective clothing and gloves when dealing with that shit. It is far worse then fiberglass insulation.
