14 bolt FF swap – Part 1¶
So, my rear end is starting to make death noises because I failed to properly set the pinion crush / preload.
Info
This post was originally published in 2019, and has been adopted to this static-site from wordpress. The build has since been retired.

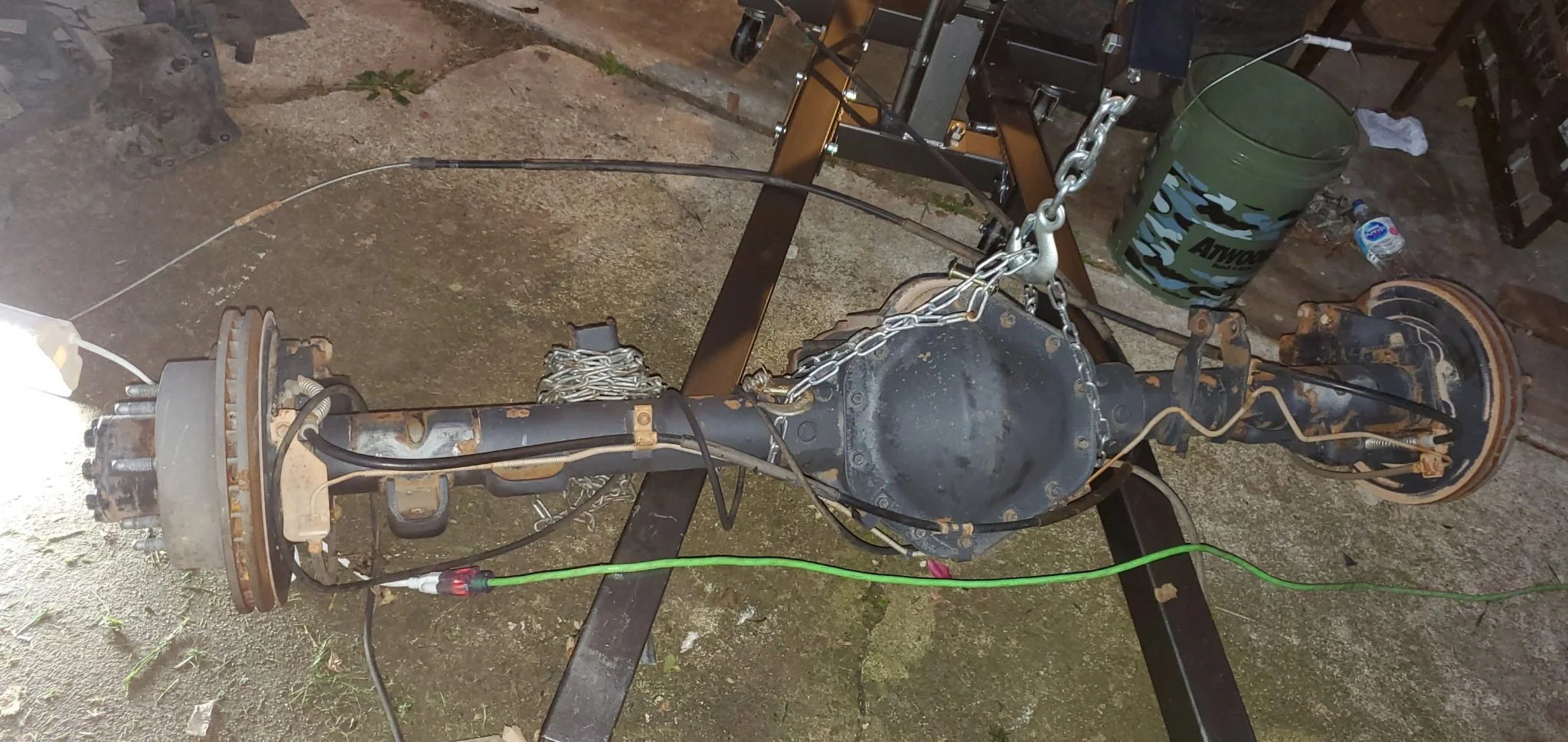

To replace it, I picked up a 14 bolt full floater from a 2004 1500HD. The new rear end also has disc brakes which will be a welcomed edition. 4.11 rear end gears.
14bolt FF 10.5″ 4.11s.

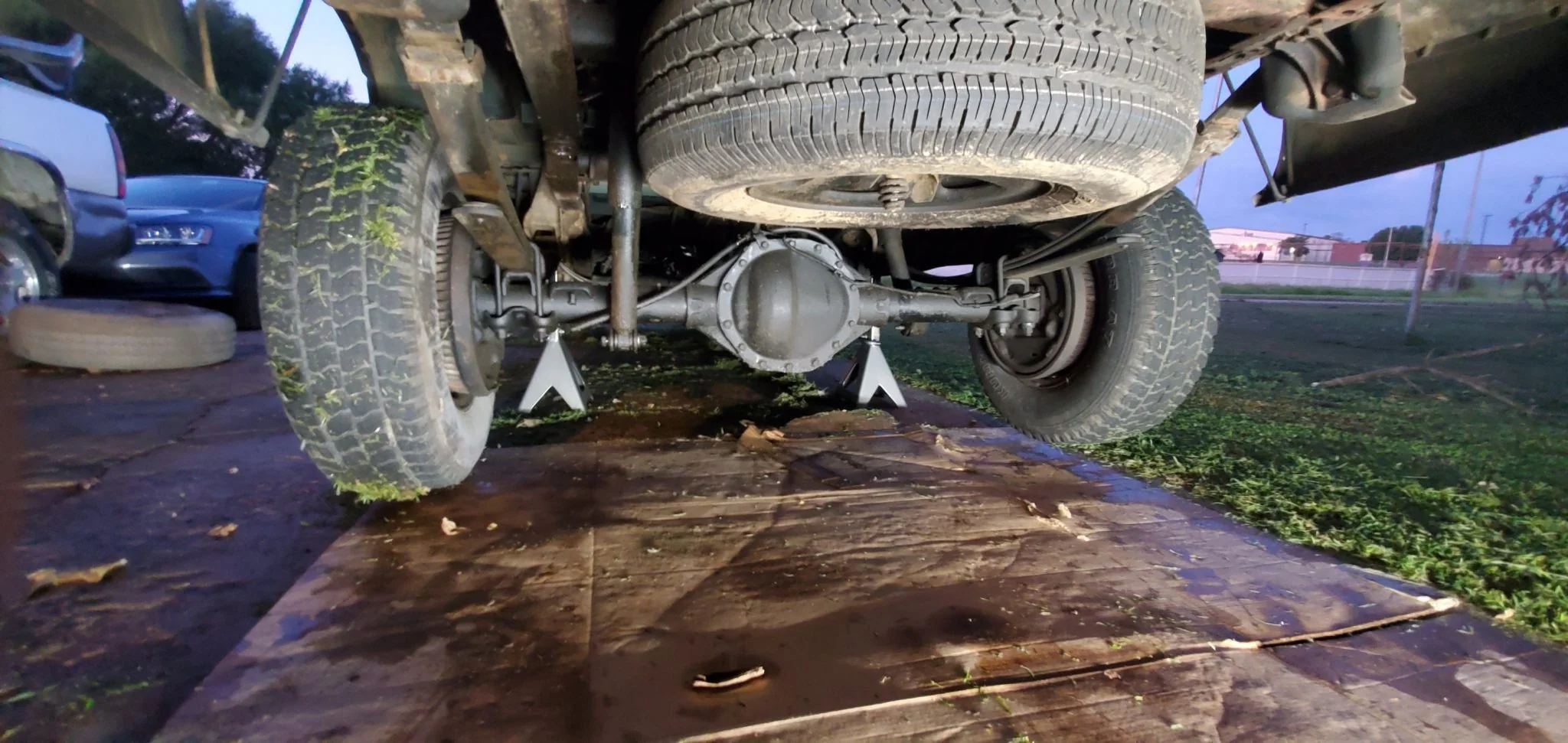

The first step was to jack the truck up and start removing the old rear end.

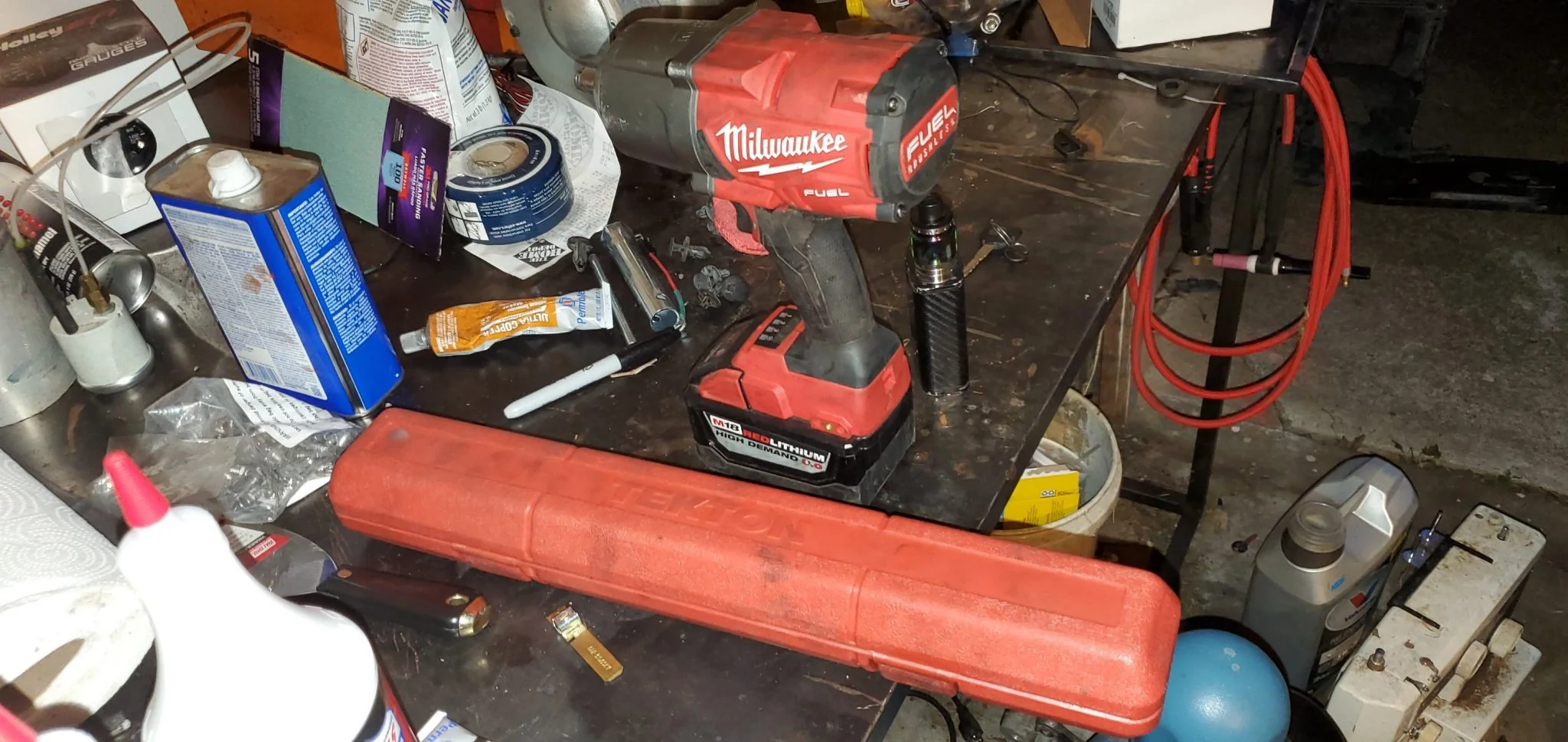

If you don't have a good battery powered impact, get one. 100% worth every penny.
To note, it took 4 minutes to remove the old rear end. It took 30 minutes to remove the spare tire.. lol. Its bracket was stuck.
I ran out of daylight, and decided to finish up tomorrow.
Day 2…¶

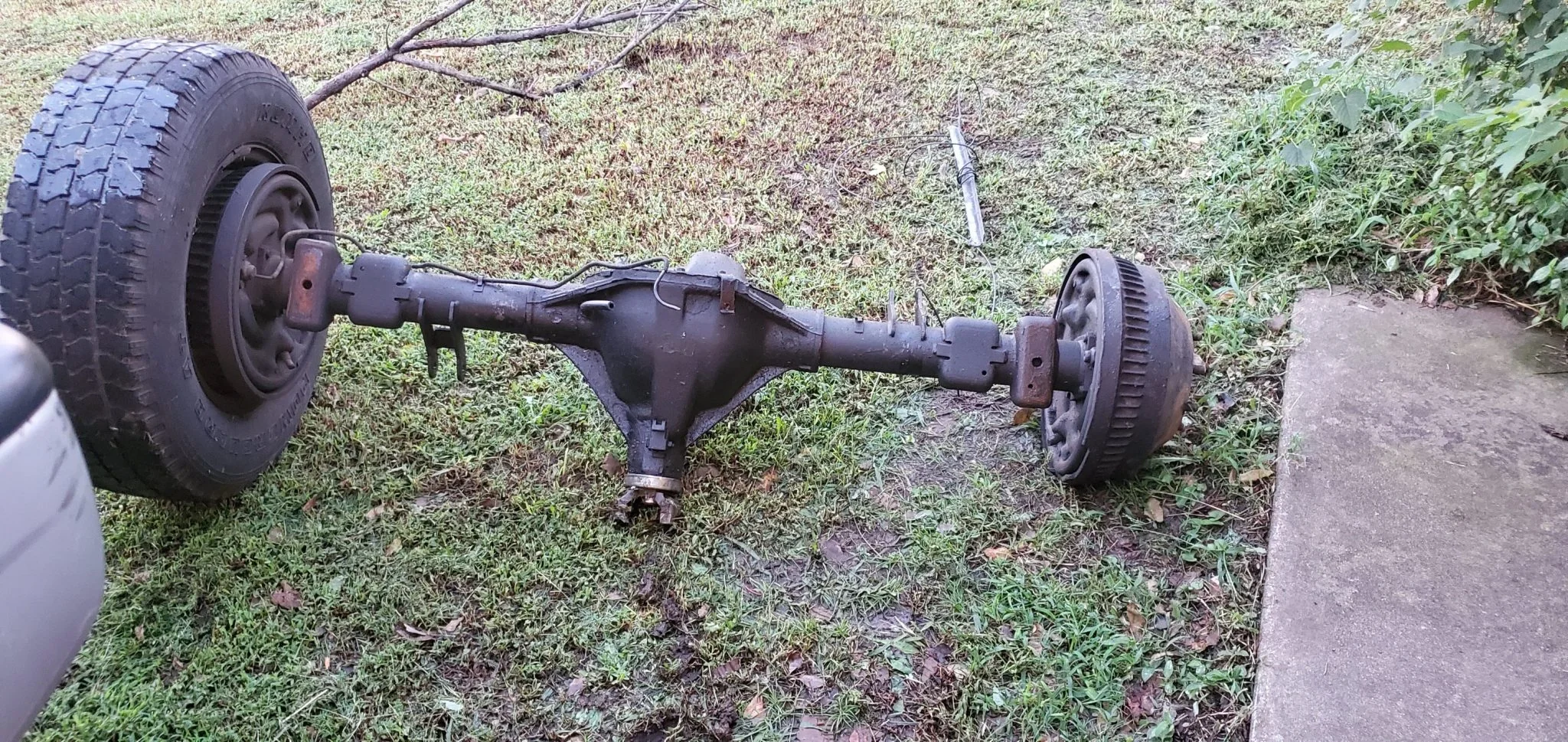

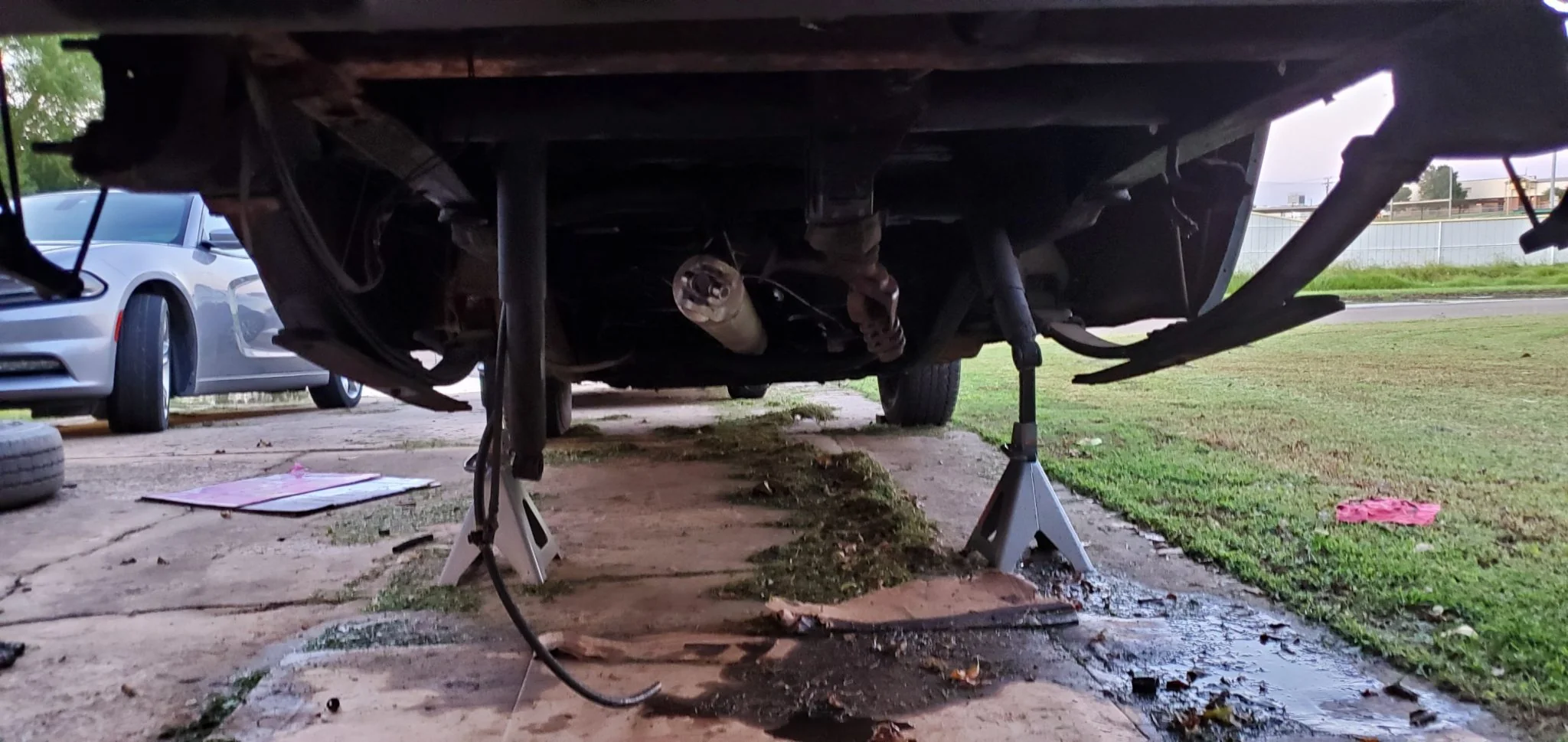

Started the evening by pulling out the old rear end.
This was the easy part.

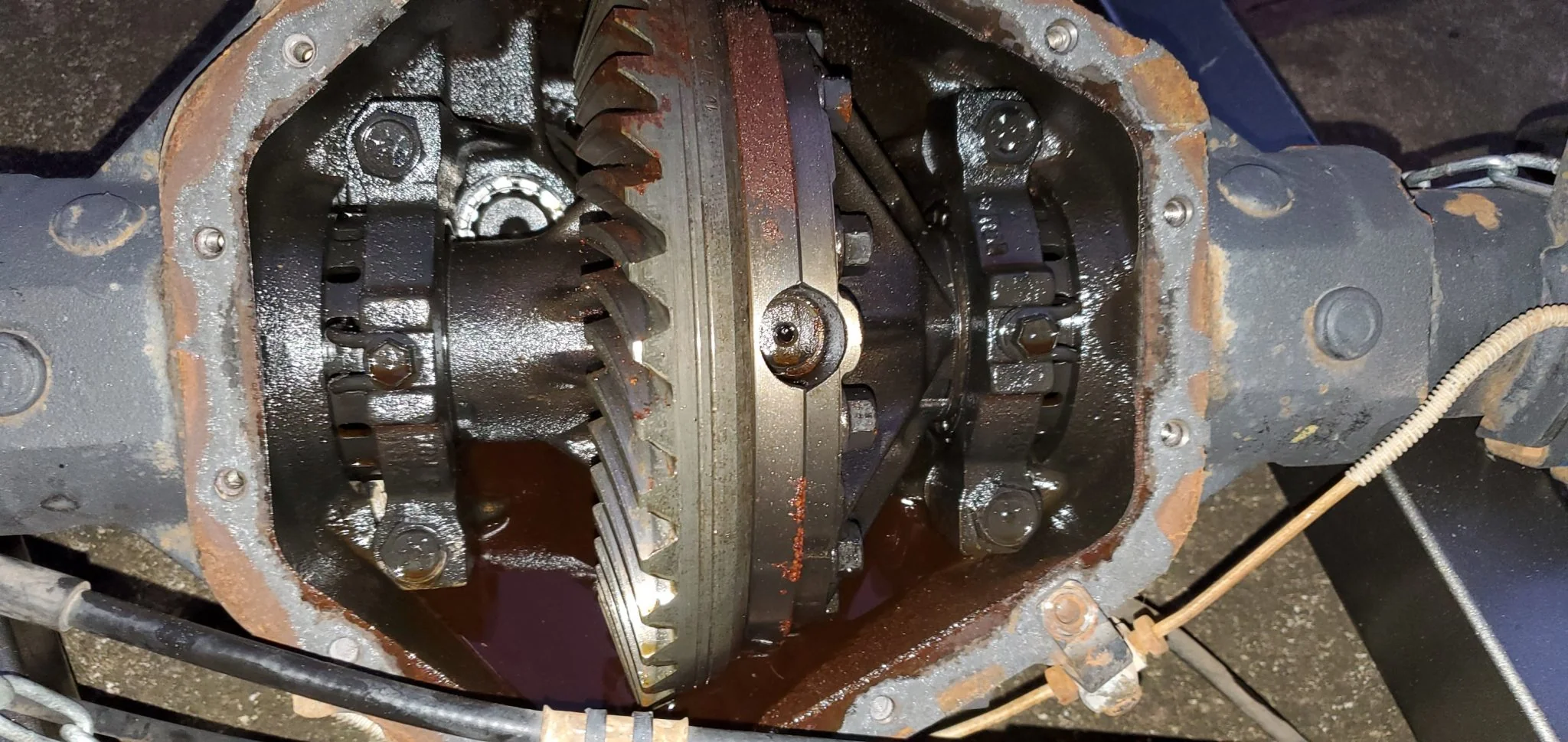

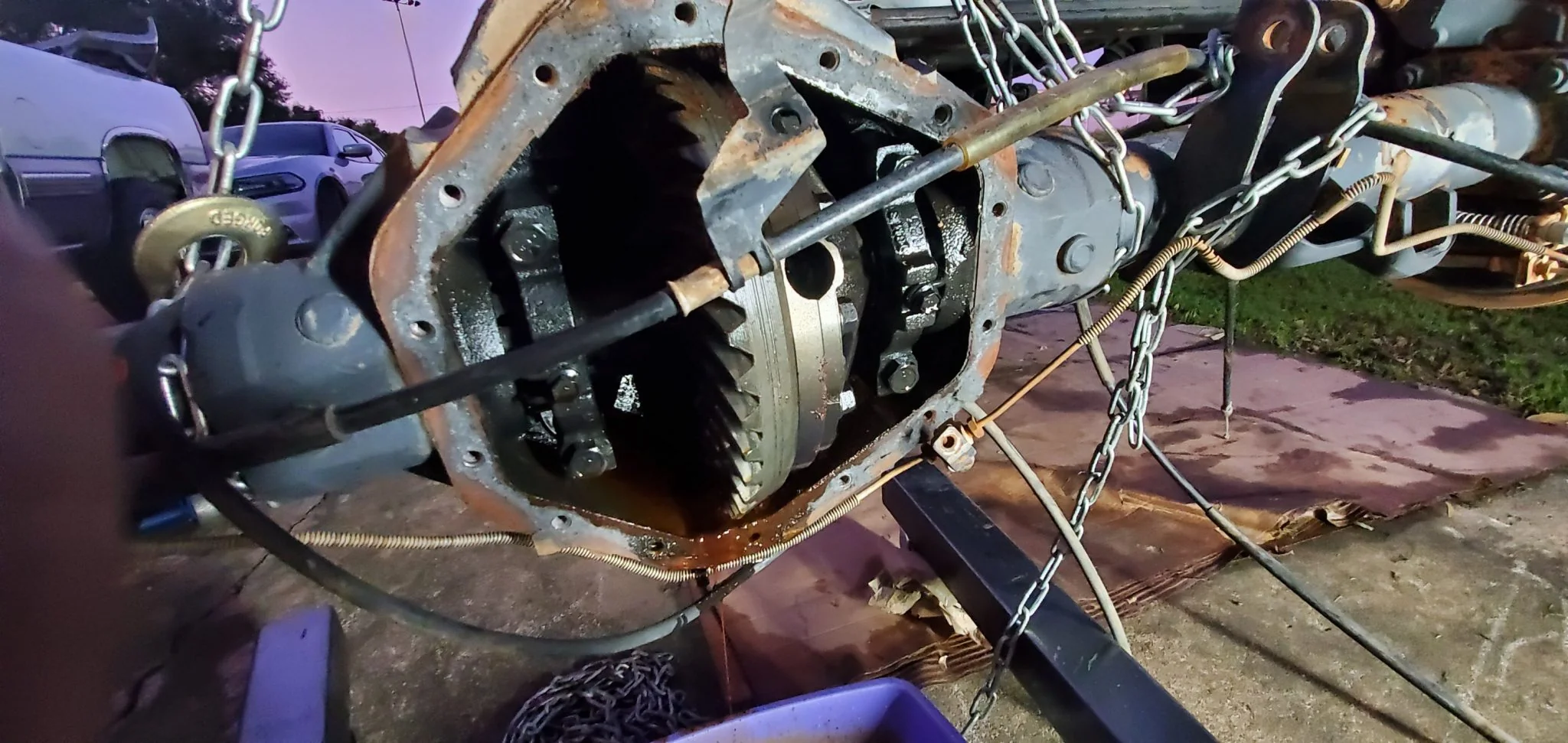

I pulled the cover off the new 14 bolt FF to inspect it. I squirted everything down with brake cleaner to clean it up a bit. Everything looked healthy. While I had it jacked up, I removed the e-brake cables as I do not currently have provisions to use them.

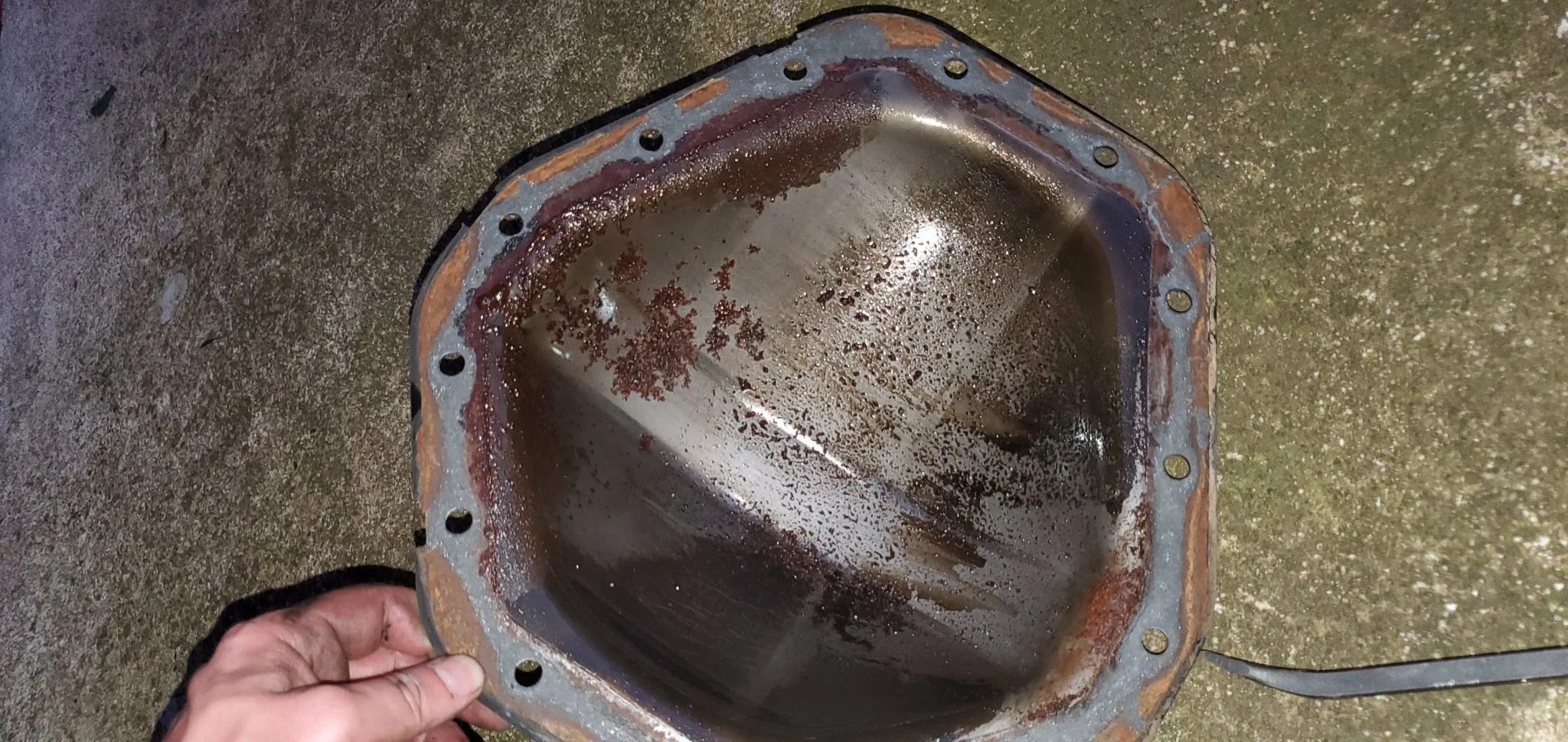

Wiped down the rear cover.
Drained out the old fluid and filled it back up with some cheap oil to give it a good flush once I can run it for 15 or 20 minutes.
Putting the new rear end in the truck kicked my ass. I struggled as bit trying to get the 600lb rear end lined up properly by myself. In the end, I was unsuccessful tonight. Will continue tomorrow….
Where I left off.
Day 3….¶

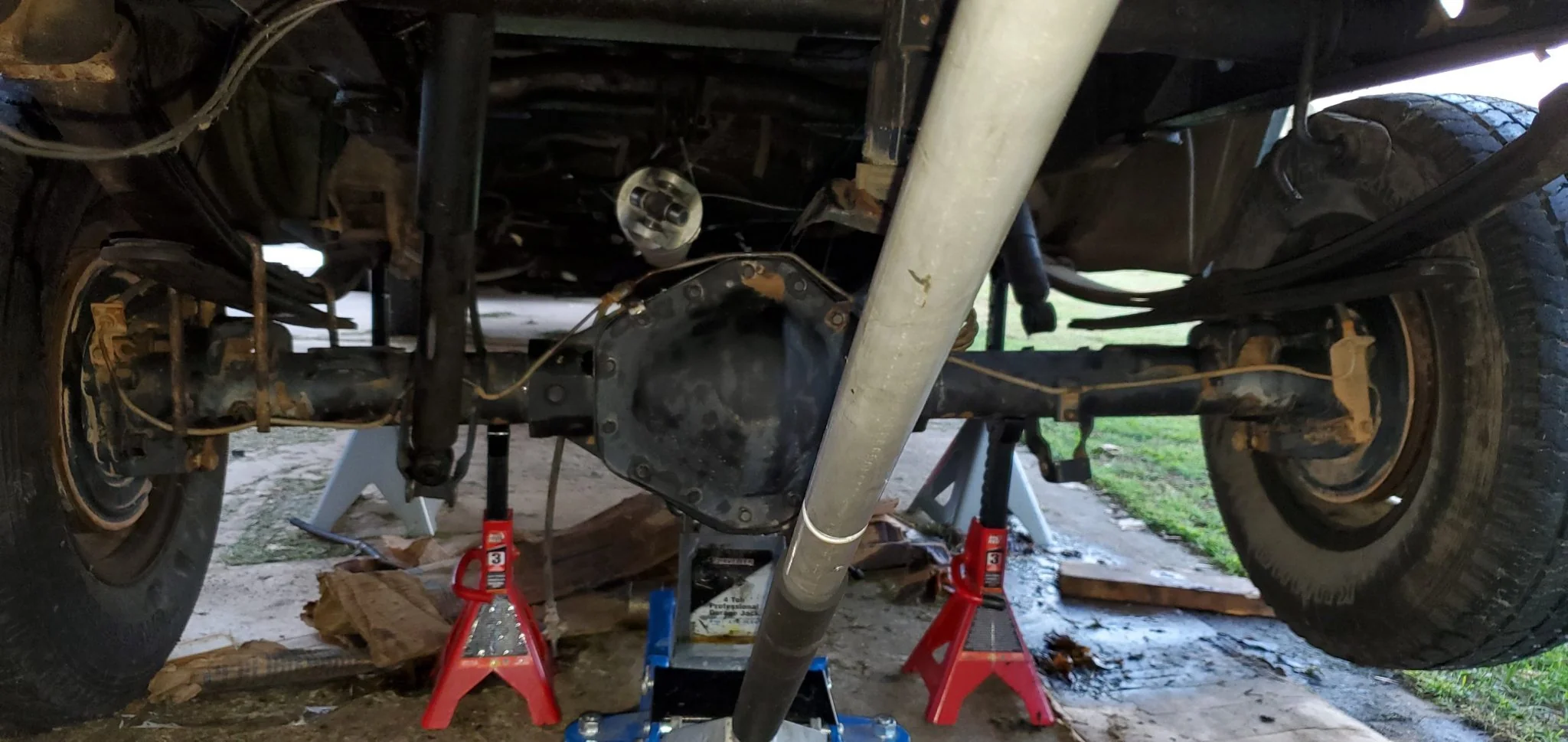

Picked up where I left off and got the rear end into place pretty quickly. I was able to get one side properly fastened, however- I need a longer u-bolt to complete the other side.
As well- I determined I would need a different u-joint, as the 14 bolt FF, requires a much larger u-joint then the 14 bolt SF.
