Cold Side Fabrication – Part 1

When I brought the truck back home from the shop, the cold side was not 100% completed.

Info

This post was originally published in 2018, and has been adopted to this static-site from wordpress. The build has since been retired.

One of the issues I noticed- was the piece of provided tubing going from the turbo air outlet, to the intercooler was not able to properly make the bend. At this time- I had acquired my TIG welder… So- lets get after it!

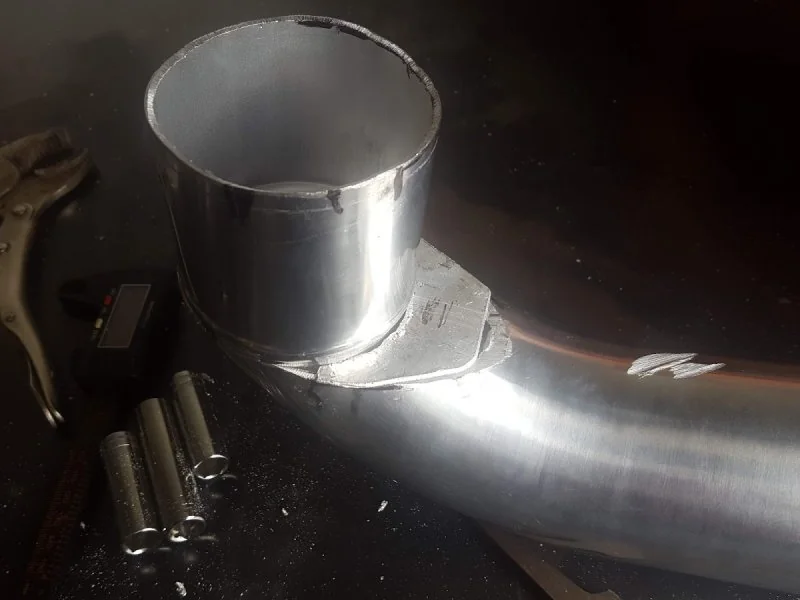

I mocked up the angle I needed to achieve. A chop saw was used to cut the aluminum elbow to around the angles I required.

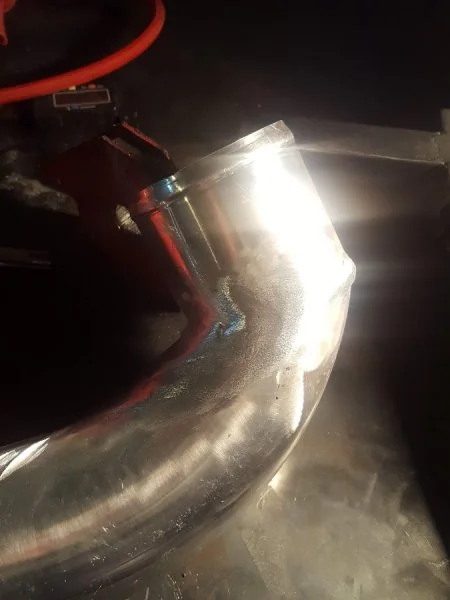

Here is the piece of tubing after welding, and grinding. Notice the sharp angle that was required.

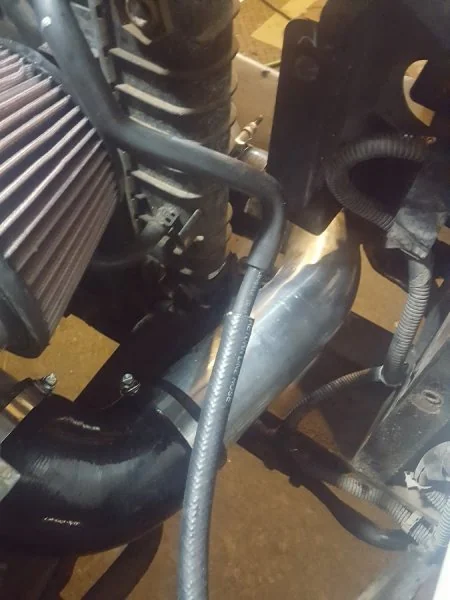

Here is the new elbow mounted and in-place.

Here is a small test-hit from the previous day. The cold-side had blown off and no boost was being generated during this hit.

And, since I now had boost…. this led to Traction Issues (and broken parts)!
