Home Assistant - Energy Flow Diagram¶
This is a quite guide on creating a real-time sankey diagram to show your current energy usage.

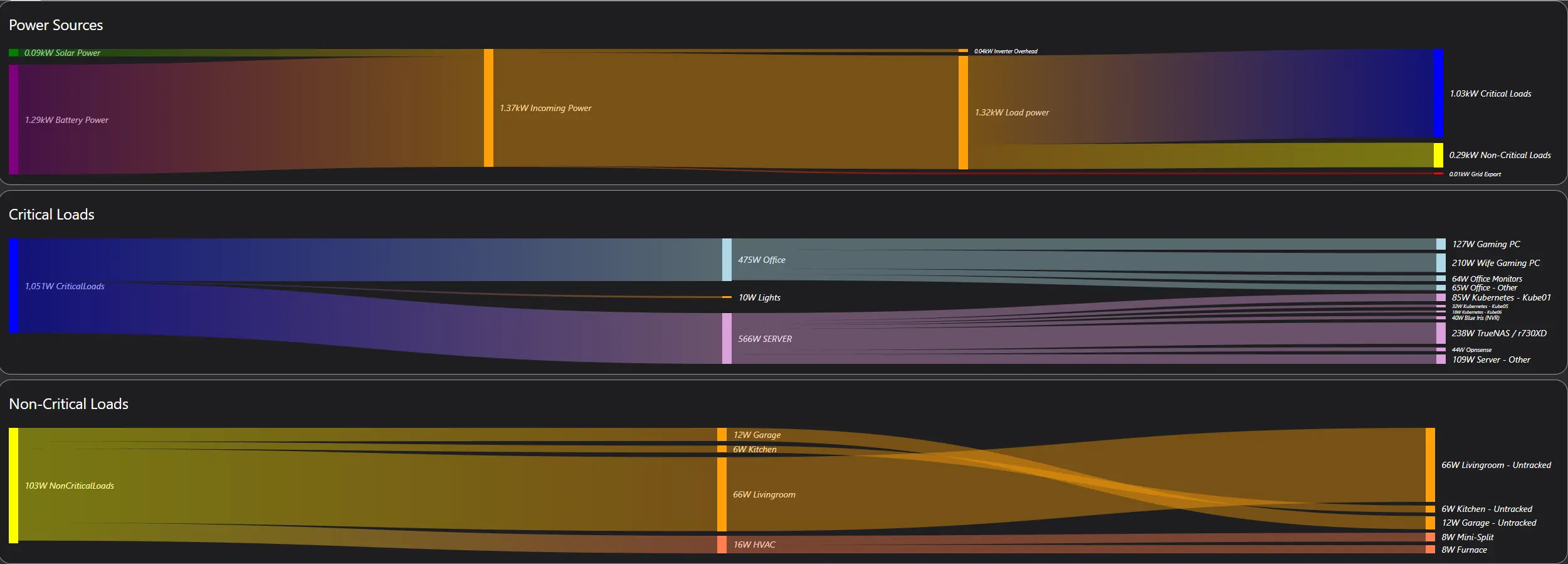

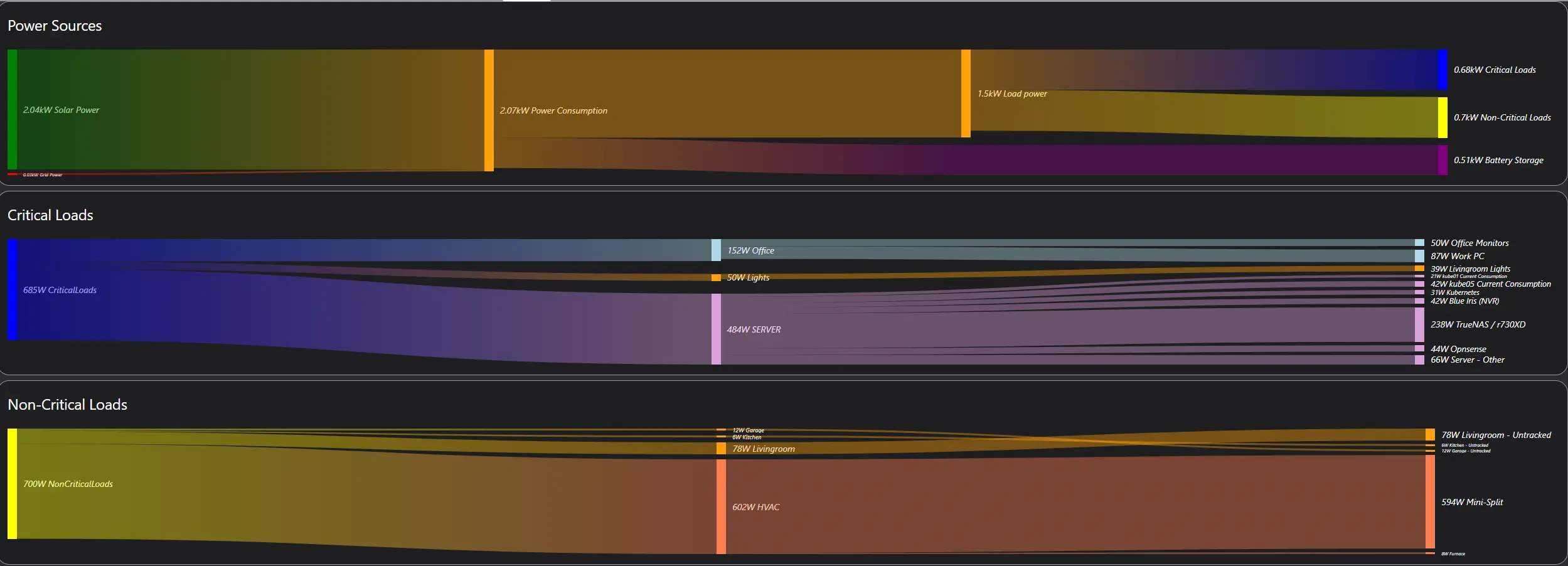

Here is an image from earlier in the day, when the sun was shining a bit more.
What is the use-case?¶
The use case for me doing this, was to build a dashboard to quickly identify real time instantaneous power consumption.
That is- when I realize my energy consumption is higher then I expect, I can glance at this dashboard, and quickly determine which device or circuit is responsible for the additional consumption.
Although, you technically should be able to design this dashboard around looking at energy utilization specified in Kwh/d, I will not be doing that in this post.
- Home Assistant.
- You can add this using hacs. Look under the frontend section.
How to collect energy data¶
For my charts I use a combination of data from multiple different sources.
If you are just curious to read about different solutions for gathering energy data, please see: Home Assistant - Energy Monitoring Solutions.
Solar / Grid Data¶
The top-level production/consumption data is collected by my inverter, which also has strategically placed CT clamps to measure energy going into and from the main meter.
It provides additional metrics for...
- Total load consumption
- Consumption for both Critical, and Non-Critical breaker panels.
- PV / Solar Production
- Generator Production
- Battery Power
I leverage solar-assistant to collect data from my inverter. If you would like to learn more, read Solar Installation - Part 4 - Monitoring
Per-Breaker Data Collection¶
For collecting data for individual breakers, there are many solutions you can leverage.
I have a collection of Energy Monitoring Solutions
I personally, use Iotawatt for per-circuit monitoring. I wrote about its recent installation here: Solar Installation - Part 4 - Monitoring
Per Device Data Collection.¶
Again, in the Energy Monitoring Solutions post, there are a few options for smart-plugs with energy monitoring capabilities.
- For the data I am collecting for a lot of my servers and computers, I leverage Tp-link Kasa HS300 strips. I reviewed and documented those here: Kasa HS300 as Rack-Mounted PDU
Those strips are installed in both my server rack, as well as my office.
For collecting data from my r730XD, I found THESE INSTRUCTIONS for collecting its SNMP data directly via home-assistant.
For my office light switch, I leverage a Shelly 1PM behind a normal light switch.
For the Entry and Porch lights (Double-switch box), I use a Shelly 2.5.
All of my other lights are Inovelli Red z-wave dimmer switches which self-reports consumption data.
Lastly, I use Flashed Sonoff S31s for collecting data from single-devices. Link goes to my post on how to flash them.
Creating the visualization¶
This assumes you have already installed ha-sankey-diagram! If not, go install it via HACs.

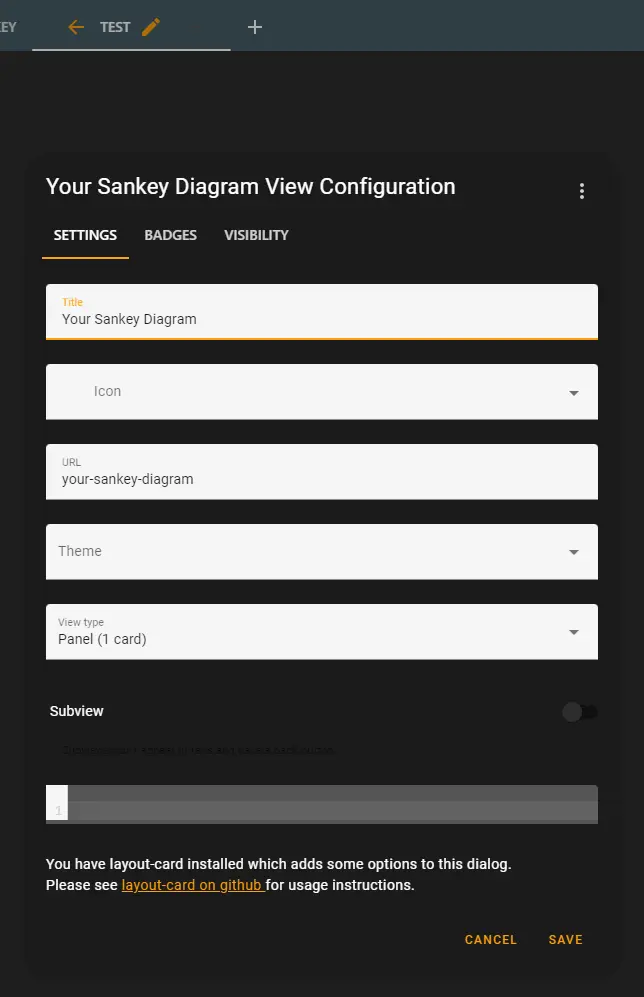

I recommend starting with a blank dashboard panel.
Afterwards, I recommend setting the dashboard view mode to
Panel (Single Card)

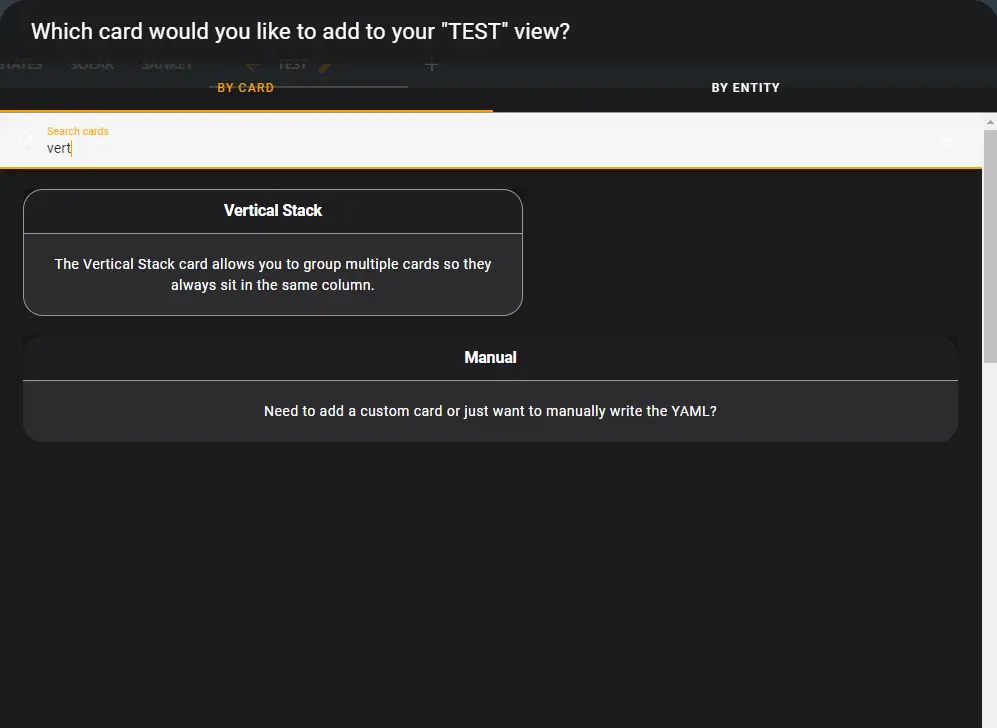

IF, you want to stack multiple diagrams, such as my version at the top of this post, add a
vertical stack card
Once you have added the
vertical stack card, add the

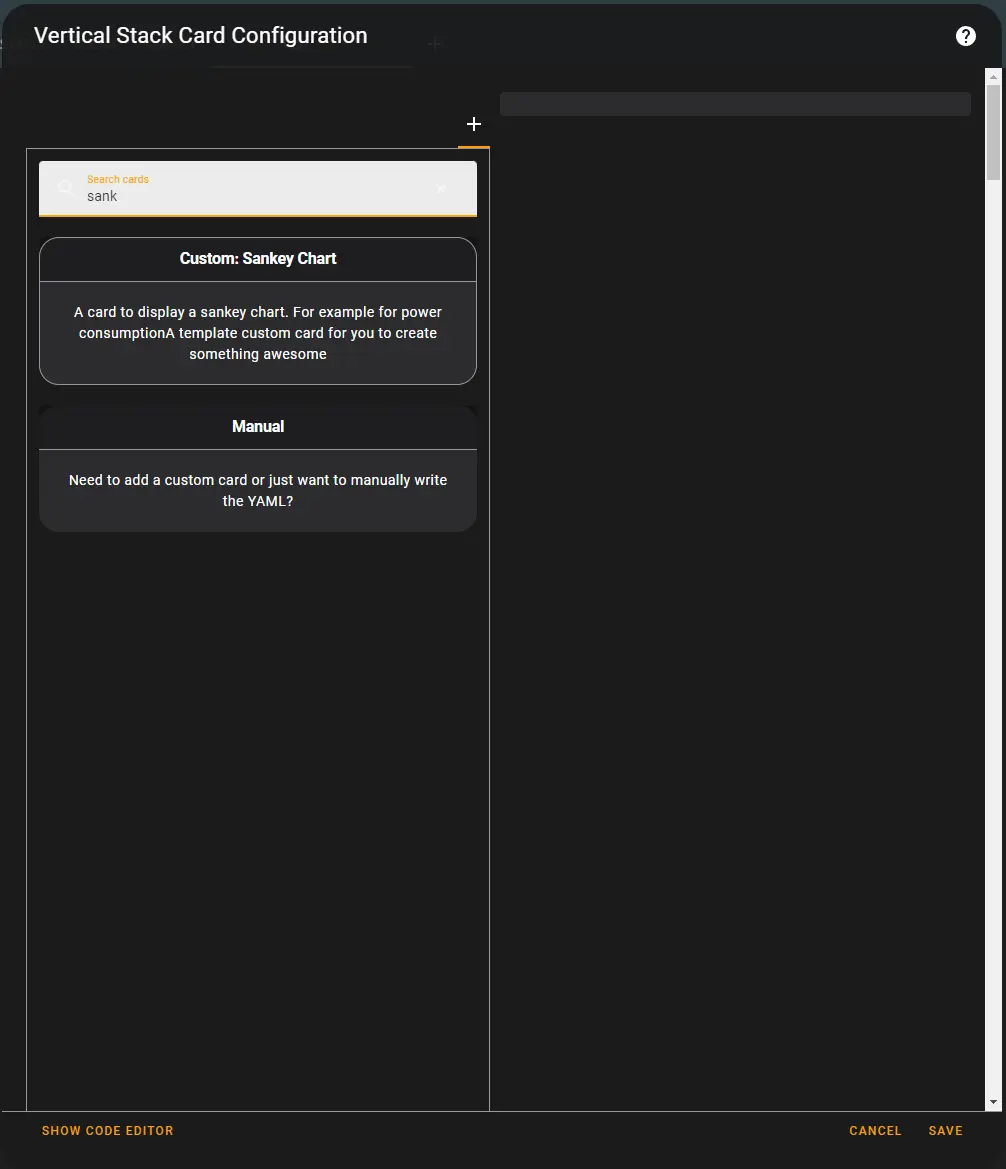

Custom: Sankey Chart
Next, Click Edit Code.
From this point- everything else will be mostly done with code.
I started my diagram with the example provided in the ha-sankey-diagram repository.
I will use my top panel as an example for this post.
Under sections, you can have many groups of entities. Imagine each group of entities as a section. The children collection under each entity, defines the links.
Do note, if you don't have individual sensors for
battery_power_out, but you do have sensors for say,
sensor.grid_power, then you may need to create a template to split that sensor into others. See Split Sensor into Negative and Positive Sensors. I had to do this for
type: custom:sankey-chart title: Power Sources unit_prefix: k # You can change this to alter which units are displayed. Leaving it blank/null, will result in the dashboard being displayed in watts. `k` displays values in Kw. show_names: true show_icons: false show_units: true show_states: true wide: true min_state: null # You can change this value to hide entities which are blow this number. ie, Setting "5", would hide anything below 5kw. (Because- we defined the unit as Kw above) round: 2 # I chose to round these numbers to two decimal places. sections: # For the first section, I put together all of the energy sources in my home. - entities: - entity_id: sensor.pv_power # Solar Production name: Solar Power color: green children: - sensor.total_power_in # In the children section, add links to this object's children. - entity_id: sensor.battery_power_out # Battery Power OUT (Don't use Battery power!) name: Battery Power color: purple children: - sensor.total_power_in - entity_id: sensor.grid_power_in name: Grid Power color: red children: - sensor.total_power_in # I created a home-assistant helper, via the GUI, to create a sensor with the sum of sensor.load_power, sensor.battery_power_in, and sensor.grid_power_out - entities: - entity_id: sensor.total_power_in name: Incoming Power remainder: losses children: - sensor.load_power - sensor.battery_power_in - sensor.grid_power_out - losses # This is a "special" identifier. More below. # The next section, is to split the loads, into a section for critical loads, and non-critical loads. Do note, sensor.grid_power_out is not defined here, and will be passed into the next section. - entities: - entity_id: losses # This is a special type, which shows the "unaccounted/remaining" value, which is not accounted for. See https://github.com/MindFreeze/ha-sankey-chart#entity-types type: remaining_parent_state name: Inverter Overhead # My assumption, these losses are likely inverter overhead. The value matches with the amount of overhead I would expect from my inverter. - entity_id: sensor.load_power children: - sensor.load_power_essential - sensor.load_power_non_essential - entities: - entity_id: sensor.load_power_essential color: blue name: Critical Loads - entity_id: sensor.load_power_non_essential color: yellow name: Non-Critical Loads - entity_id: sensor.grid_power_out color: red name: Grid Export - entity_id: sensor.battery_power_in color: purple name: Battery Storage

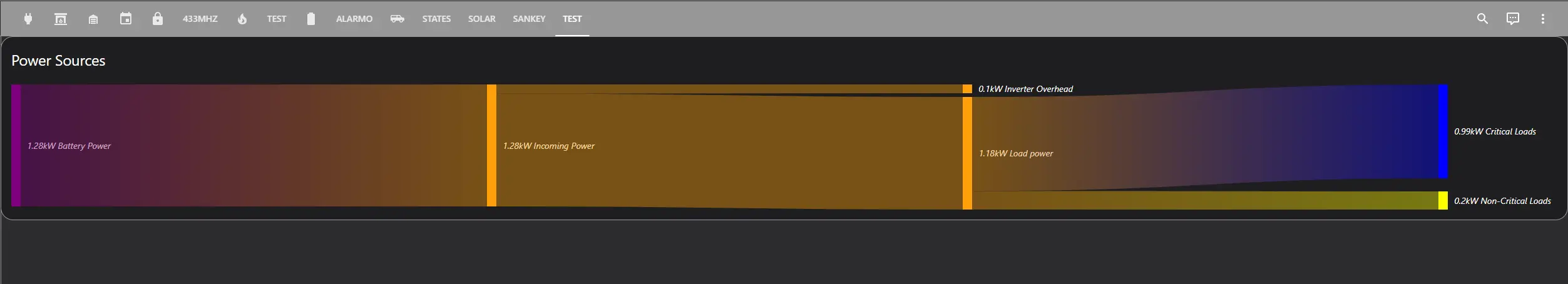

After you put all of that together, you will end up with a dashboard like this:
Then- just add more Sankey Charts into your vertical stack, until you have the desired information displayed.
The end result?
For one last example- here is the YAML from my
Critical Loads panel.
type: custom:sankey-chart title: Critical Loads show_names: true show_icons: false show_units: true show_states: true wide: true min_state: 5 round: 0 sections: - entities: - entity_id: sensor.criticalloads color: blue remaining: untracked_critical children: - sensor.bedroom - sensor.lights - sensor.server - entities: - entity_id: sensor.bedroom name: Office color: LightBlue remaining: Office - Other children: - sensor.gaming_pc_current_consumption - sensor.wife_pc_current_consumption - sensor.monitors_current_consumption - sensor.internet_current_consumption - sensor.work_pc_current_consumption - sensor.bedroom_switch_current_consumption - entity_id: sensor.lights children: - sensor.livingroom_ceiling_light_electric_consumption_w - sensor.kitchen_light_electric_consumption_w - sensor.dining_room_light_electric_consumption_w - sensor.front_porch_light_watts - sensor.entry_light_watts - sensor.back_porch_electric_consumption_w - sensor.middle_bathroom_light_electric_consumption_w - sensor.middle_bathroom_light_electric_consumption_w - sensor.middle_bedroom_electric_consumption_w - sensor.bedroom_light_watts - entity_id: sensor.server color: plum remaining: Server - Other children: - sensor.kube01_current_consumption - sensor.kube05_current_consumption - sensor.kube06_current_consumption - sensor.nvr_current_consumption - sensor.kasa_smart_plug_383a_2_current_consumption - sensor.truenas_power - entity_id: untracked_critical type: remaining_parent_state name: Untracked - entities: - entity_id: Office - Other type: remaining_parent_state - entity_id: Server - Other type: remaining_parent_state - entity_id: sensor.gaming_pc_current_consumption name: Gaming PC color: LightBlue - entity_id: sensor.bedroom_switch_current_consumption name: Office 10G Switch color: LightBlue - entity_id: sensor.wife_pc_current_consumption name: Wife Gaming PC color: LightBlue - entity_id: sensor.monitors_current_consumption name: Office Monitors color: LightBlue - entity_id: sensor.internet_current_consumption name: Optical Media Converter color: LightBlue - entity_id: sensor.work_pc_current_consumption name: Work PC color: LightBlue - entity_id: sensor.livingroom_ceiling_light_electric_consumption_w name: Livingroom Lights - entity_id: sensor.kitchen_light_electric_consumption_w name: Kitchen Lights - entity_id: sensor.dining_room_light_electric_consumption_w name: Dining Room Lights - entity_id: sensor.front_porch_light_watts name: Front Porch Light - entity_id: sensor.entry_light_watts name: Entry Lights - entity_id: sensor.back_porch_electric_consumption_w name: Back Porch Light - entity_id: sensor.middle_bedroom_electric_consumption_w name: Server Room - Light - entity_id: sensor.middle_bathroom_light_electric_consumption_w name: Middle Bathroom - Light - entity_id: sensor.middle_bathroom_light_electric_consumption_w name: Middle Bathroom - Toilet Light - entity_id: sensor.bedroom_light_watts name: Office - Lights - entity_id: sensor.kube01_current_consumption name: Kubernetes - Kube01 color: plum - entity_id: sensor.kube05_current_consumption name: Kubernetes - Kube05 color: plum - entity_id: sensor.kube06_current_consumption name: Kubernetes - Kube06 color: plum - entity_id: sensor.nvr_current_consumption name: Blue Iris (NVR) color: plum - entity_id: sensor.truenas_power name: TrueNAS / r730XD color: plum - entity_id: sensor.kasa_smart_plug_383a_2_current_consumption name: Opnsense color: plum
I designed this dashboard mostly for the purpose of having a real-time display of instantaneous power usage in my home.
This was not designed to track monthly costs, I believe the built-in energy dashboard does a decent-enough job at this already.
But, for the purpose of quickly identifying what in your home is using energy at a particular moment in time, this visualization works amazingly well.
Overall, I would say I have accomplished my goal.
If, this sounds like a project which may be useful to you, hopefully I have provided the resources you need in order to be successful.
