Acurite Tower Discovery Script

This post provides a home assistant script, which will automatically discover Acrite tower sensors.

This works with 06002M and 592TX. Other devices may function with minor changes and modifications, but, are not tested.

alt text

How to I setup RTL with Acurite sensors?

If would like to learn about the world of RTL_433, and 433mhz sensors...

Please see 433 Mhz Temp / Humidity Sensors

This purpose of this post, is just an easy configuration option, rather then needing to manually edit yaml.

The Script

Import Blueprint

View Script

How to use

Click the above button to import the blueprint.

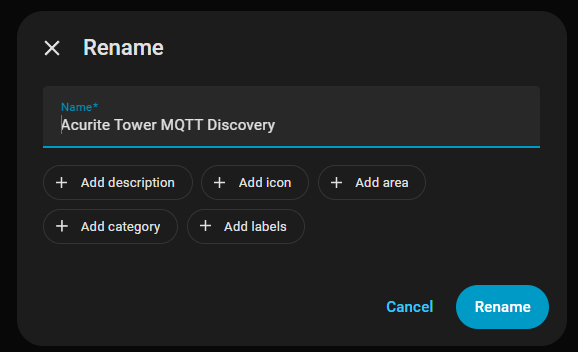

Save the blueprint. You will be prompted to rename.

alt text

Refresh your page.

Execute the script.

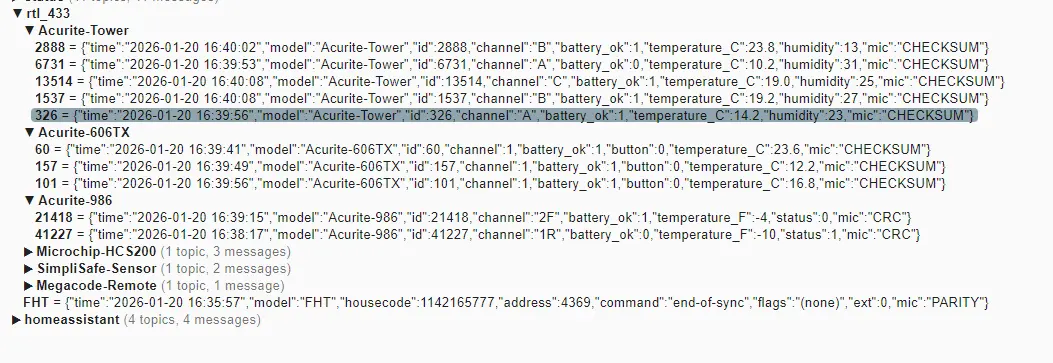

To find your identifiers, I prefer just looking at MQTT Explorer. I let it run for a while, and when ready, I put the batteries into the new sensor.

Within a few seconds, it should pop up as a new row. Remember the ID for later (326 in this case)

Image showing MQTT explorer, previewing acurite sensors

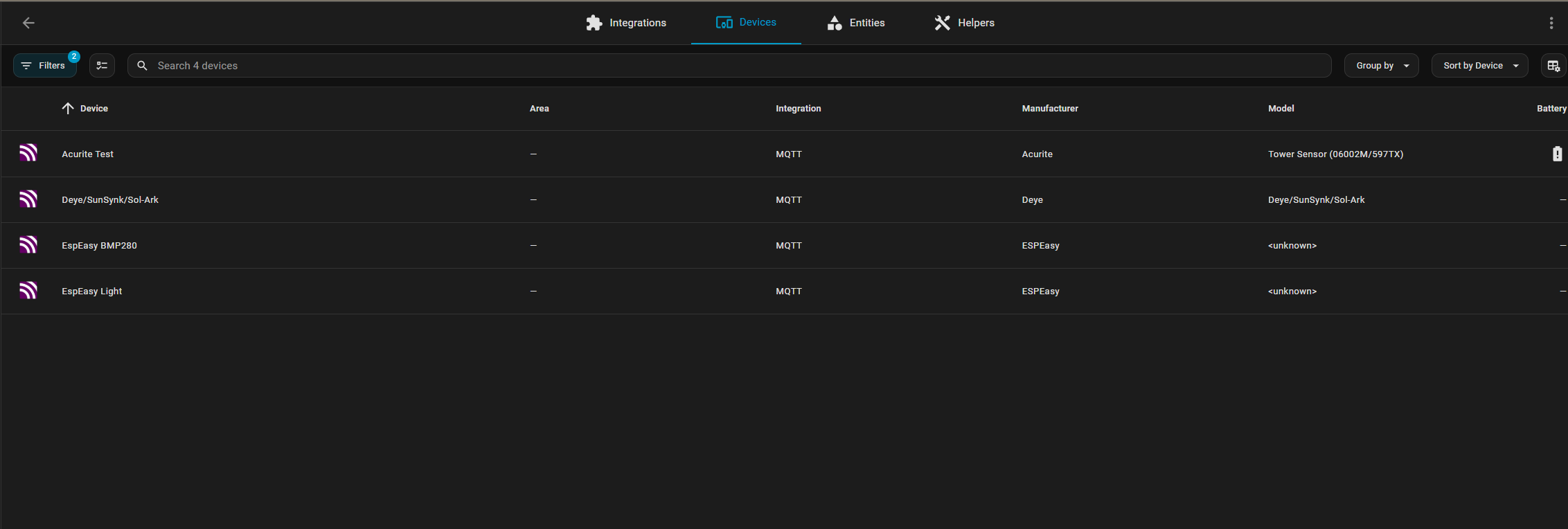

Within Devices/MQTT, before running the script, I have four devices.

alt text

In your home assistant, navigate to scripts.

Open Scripts

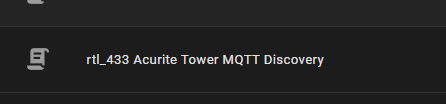

Click on rtl_433 Acurite Tower MQTT Discovery.

alt text

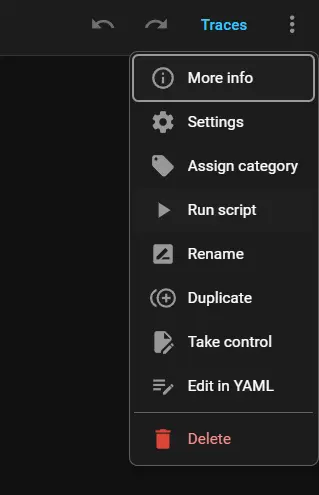

Run the script.

alt text

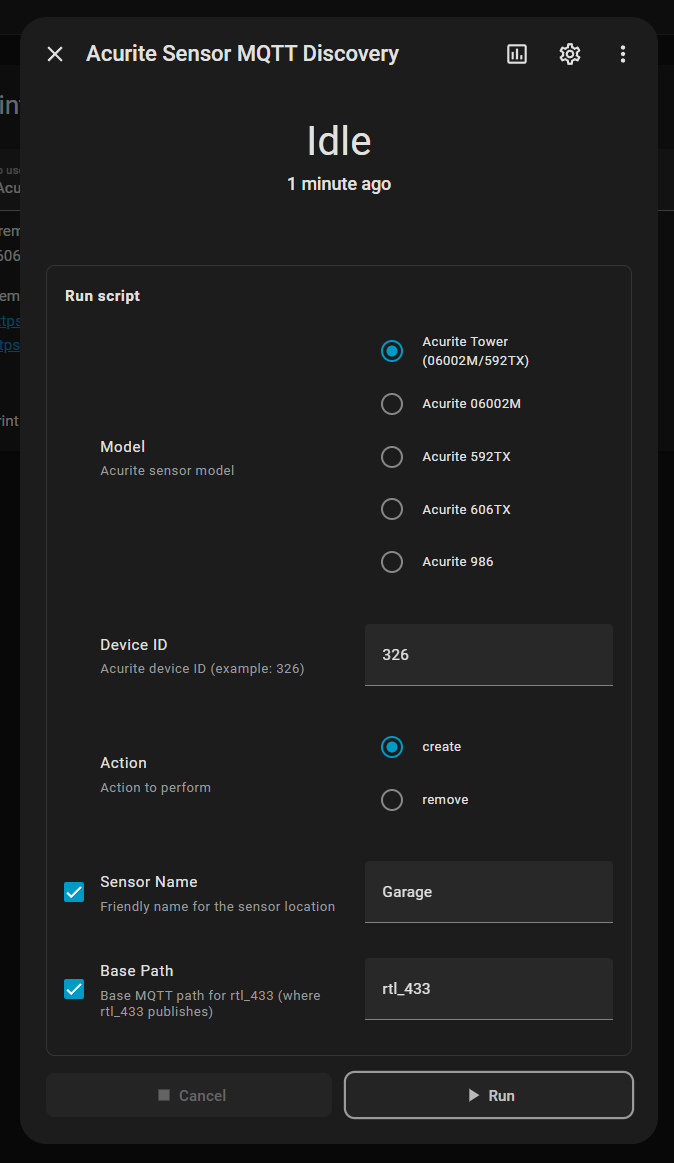

In this case, ID=326 is the new sensor I am putting in my garage.

alt text

alt text

Click run. You will need to close the dialog.

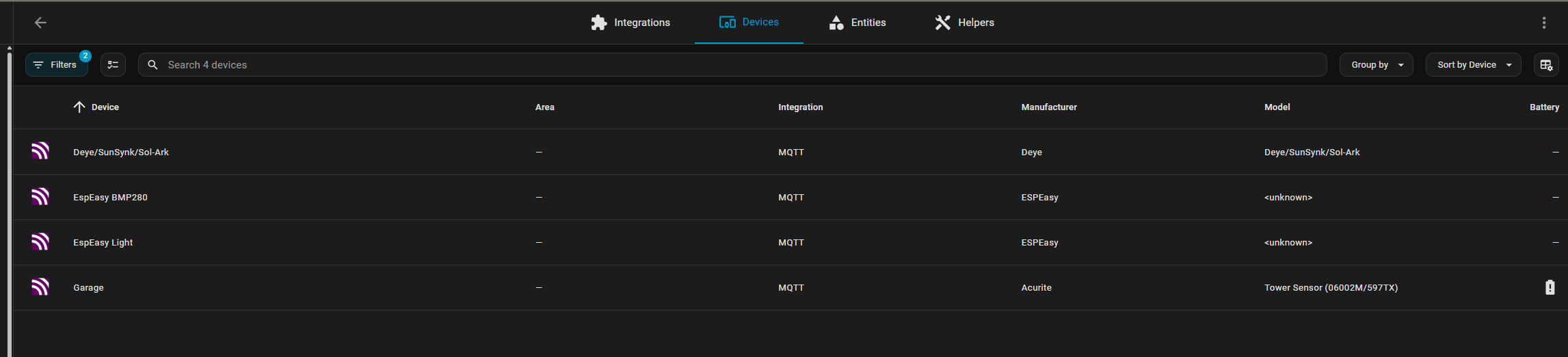

Back under Devices/MQTT, your new sensor will appear.

alt text

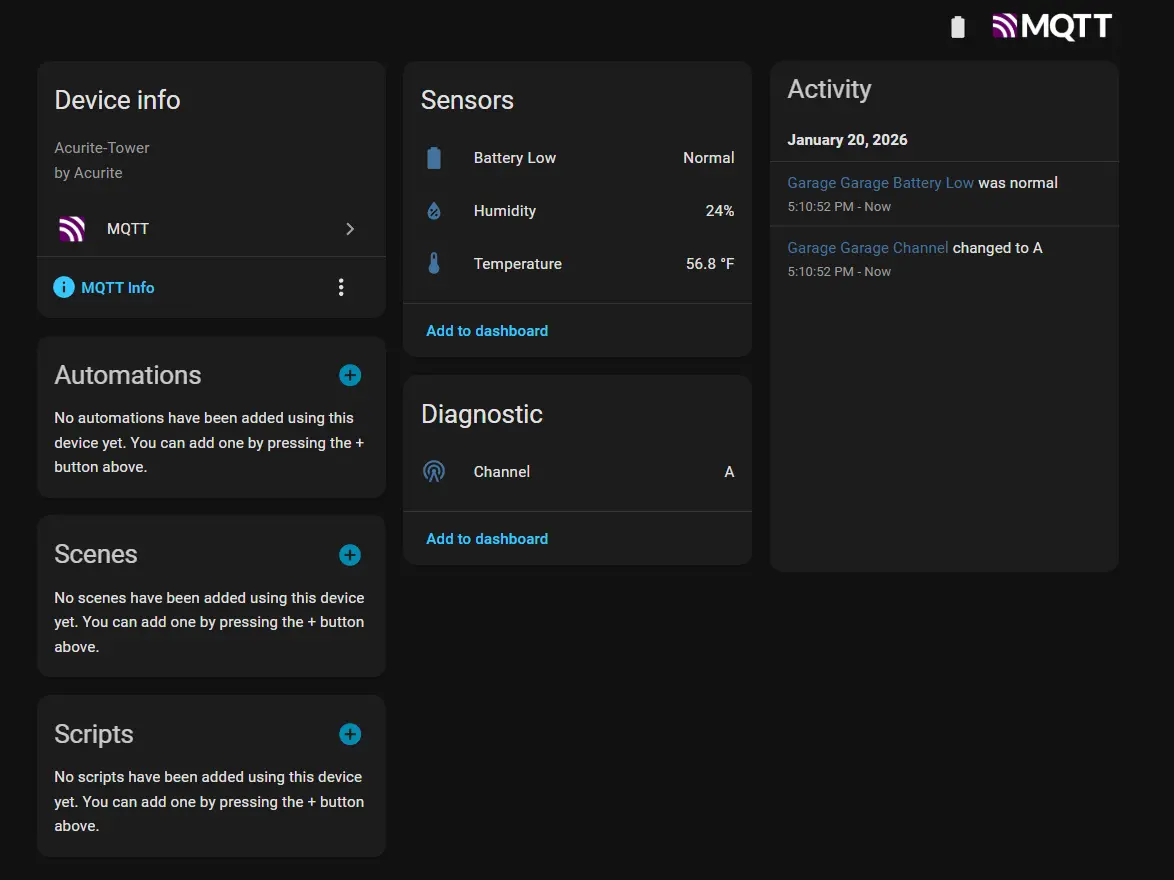

Voila, you have a new device.

alt text

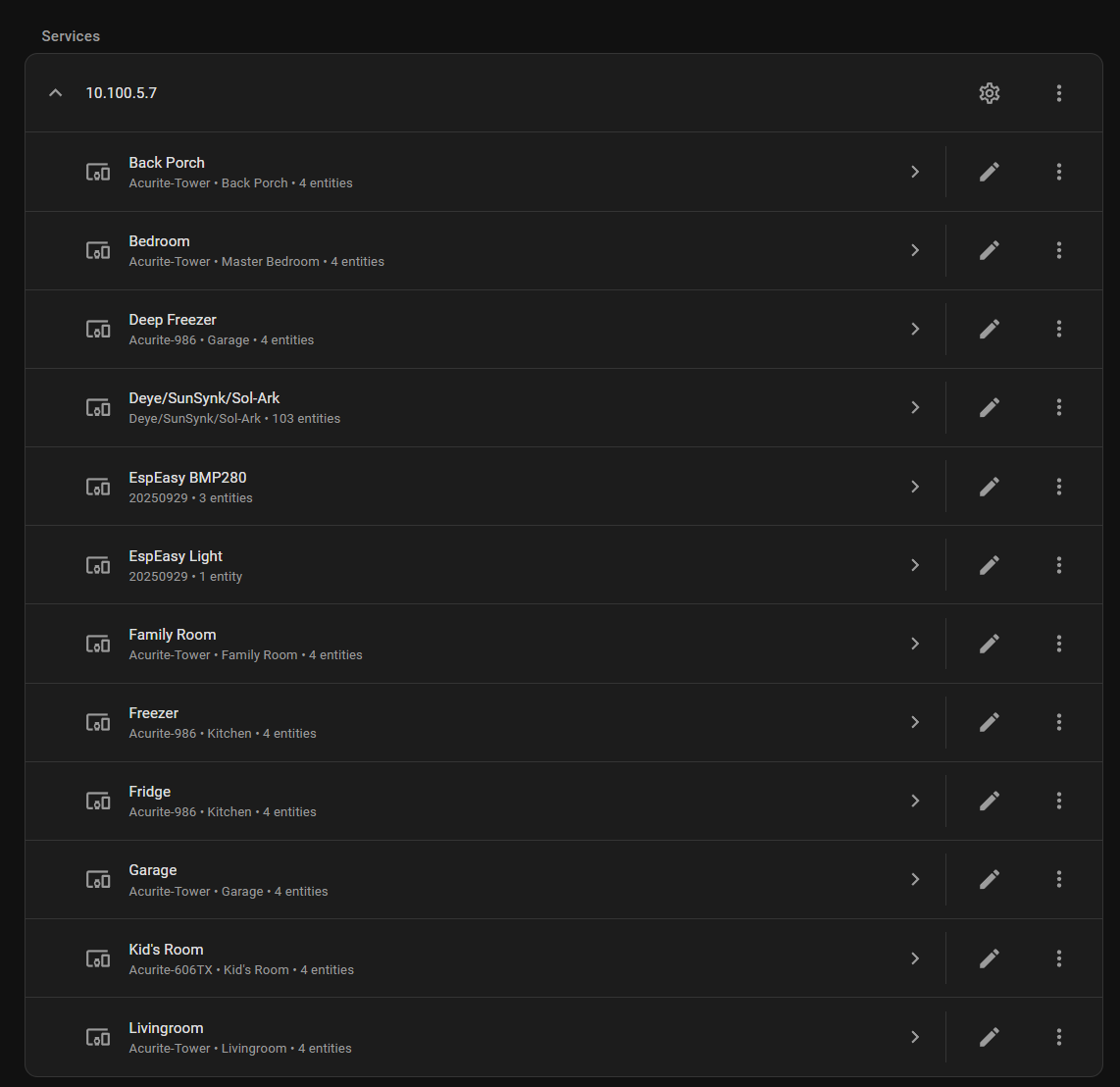

End result?

I was able to configure 9 sensors in a period of less then two minutes.

alt text

Info

I strongly recommend you keep a listing of device type, ID, and name handy.

In the event your retained MQTT discovery messages are cleared, your devices will be cleared too.

Here is an example of my backup list.

Acurite 986:
  64930: Fridge
  21418: Freezer
  41227: Deep Freezer

  43611: Unused / Attic

Acurite Tower:
  10803: Unused/Unknown
  6731: Back Porch
  13514: Family Room
  2888: Livingroom
  1537: Master Bedroom

Acurite 606TX:
  101: Kid's Room
  60: Office
  157: Pump Shed

How to remove devices

Method 1- You can delete the discovery topics manually through your MQTT tool of choice.

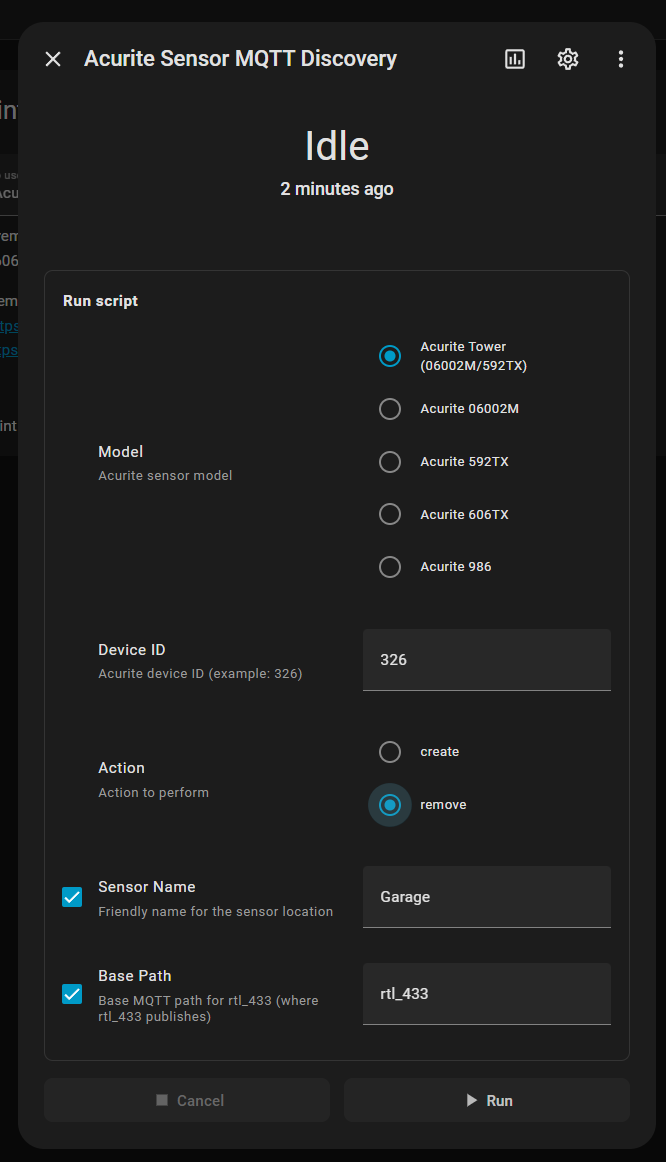

Method 2- You can run the script, and use the remove action.

alt text

The remove action will remove the retained discovery messages.

Note- you don't need to fill out the sensor name.

How to contribute

If you would like to purpose a feature, or contribute to this blueprint, Please visit the Github Repo
