Mellanox ConnectX-NIC Configuration Helper¶
This post centralizes data for configuration of Mellanox ConnectX Series NIC (Tested with CX3, and CX4)
Tasks¶
Packages Used¶
Packages Used:
- pciutils
- contains
lspciused in this post. - ethtool
- wget
- unzip - Used for extracting .zip files. Suppose you could use a tar command too...
Command:
apt-get update && apt-get install -y pciutils ethtool wget
Output:
Install package output
root@kube05:~# apt-get update && apt-get install -y pciutils ethtool wget
Hit:1 http://security.debian.org/debian-security bookworm-security InRelease
Hit:2 http://deb.debian.org/debian bookworm InRelease
Hit:3 http://deb.debian.org/debian bookworm-updates InRelease
Hit:4 http://download.proxmox.com/debian/pve bookworm InRelease
Hit:5 http://download.proxmox.com/debian/ceph-reef bookworm InRelease
Reading package lists... Done
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
pciutils is already the newest version (1:3.9.0-4).
ethtool is already the newest version (1:6.1-1).
The following packages were automatically installed and are no longer required:
libc-ares2 libyang2
Use 'apt autoremove' to remove them.
The following packages will be upgraded:
wget
1 upgraded, 0 newly installed, 0 to remove and 30 not upgraded.
Need to get 937 kB of archives.
After this operation, 86.0 kB disk space will be freed.
Get:1 http://deb.debian.org/debian bookworm/main amd64 wget amd64 1.21.3-1+deb12u1 [937 kB]
Fetched 937 kB in 0s (11.1 MB/s)
apt-listchanges: Reading changelogs...
(Reading database ... 63296 files and directories currently installed.)
Preparing to unpack .../wget_1.21.3-1+deb12u1_amd64.deb ...
Unpacking wget (1.21.3-1+deb12u1) over (1.21.3-1+b2) ...
Setting up wget (1.21.3-1+deb12u1) ...
Processing triggers for man-db (2.11.2-2) ...
Install MLNX-OFED & MSTFlint¶
mlnx-ofed is the drivers and software for ConnectX IB/Ethernet NICs.
mstflint is software provided by Nvidia for the purpose of configuring ConnectX series network adapters.
It is also used to update firmware.
It is not required for all of the below tasks in this guide, however, does come in handy.
Via apt-get (For Proxmox)¶
Here you go, straight to the point. This was the script I used this week for installing on proxmox.
Script:
## See available versions here: https://linux.mellanox.com/public/repo/mlnx_ofed/
VERSION="latest"
## See available distributions here: https://linux.mellanox.com/public/repo/mlnx_ofed/latest/
DISTRO="debian12.1"
wget -qO - https://www.mellanox.com/downloads/ofed/RPM-GPG-KEY-Mellanox | sudo apt-key add -
cd /etc/apt/sources.list.d/
wget https://linux.mellanox.com/public/repo/mlnx_ofed/$VERSION/$DISTRO/mellanox_mlnx_ofed.list
apt-get update
apt-get install mlnx-ofed-basic mstflint
See the listing HERE for available versions.
For other distributions, look at the repository listing HERE
Output:
As the output was quite long and verbose, I did not embed it on this page.
RPM / Tarball / etc¶
If, you are using RPM, the directions will be slightly different for you.
(Official) Nvidia Networking Repository Documentation
Note
You can download tarballs for the MLNX_OFED drivers from Nvidia. However, in my case it yielded "Unsupported distribution" using the debian 12 version, on my debian 12.1 proxmox hosts.
The apt-get method, worked as expected.
Gathering Information¶
Get PCI Address (Required)¶
via lspci¶
This step is required for basically everything else in this guide. You will need the PCIe address of your card. This is easily obtained using lspci
Command:
lspci | grep Mellanox
Output:
# One host with a 25G CX4
root@kube01:/etc/apt/sources.list.d# lspci | grep Mellanox
01:00.0 Ethernet controller: Mellanox Technologies MT27710 Family [ConnectX-4 Lx]
01:00.1 Ethernet controller: Mellanox Technologies MT27710 Family [ConnectX-4 Lx]
# On another host with a 100G CX4
root@kube02:~# lspci | grep Mellanox
81:00.0 Ethernet controller: Mellanox Technologies MT27700 Family [ConnectX-4]
81:00.1 Ethernet controller: Mellanox Technologies MT27700 Family [ConnectX-4]
# Another host, also, 100G CX4
root@kube05:~# lspci | grep Mellanox
01:00.0 Ethernet controller: Mellanox Technologies MT27700 Family [ConnectX-4]
01:00.1 Ethernet controller: Mellanox Technologies MT27700 Family [ConnectX-4]
As all of my NICs are dual-port- there are two entries for each NIC.
In the first example, you would want to take note of 01:00.0, and 01:00.1. This is the NIC's address.
Get PCI Address - From Interface Name - Via ethtool¶
If- you have the adapter/interface name, you can use this to acquire the PCI address
ethtool -i enp1s0f0np0 | grep "bus-info"
Output:
root@kube01:~# ethtool -i enp1s0f0np0 | grep "bus-info"
bus-info: 0000:01:00.0
Set Variable¶
Warning
To make it easier to run commands in this article, I will be using a variable to avoid needing to remember/retype the address name.
If- you choose not to do this, you can instead replace $CX_ADDRESS in the provided scripts, with the address of your network adapter.
To make it easier to run scripts or commands in this post, I am going to set a local variable containing the card's address.
This will negate the need to remember, or type this in for every command.
Command:
# Replace the address, with the address of YOUR card.
# If- like me, your cards have multiple ports, choose the .0 port.
CX_ADDRESS="81:00.0"
You can paste that directly into a bash prompt to set the variable.
Output:
root@kube02:~# CX_ADDRESS="81:00.0"
root@kube02:~# echo $CX_ADDRESS
81:00.0
Get Interface Name (Required)¶
Get Logic Adapter Name - From PCI Address- via /sys¶
To get the network interface name, we can simply ls /sys
Command:
ls /sys/bus/pci/devices/0000:$CX_ADDRESS/net
Output:
root@kube02:~# ls /sys/bus/pci/devices/0000:$CX_ADDRESS/net
enp129s0f0np0
Set Variable (Required)¶
Warning
To make it easier to run commands in this article, I will be using a variable to avoid needing to remember/retype the logical interface name.
If- you choose not to do this, you can instead replace $CX_INTERFACE in the provided scripts, with the name of your network interface.
Like before, to simplify this article, I will be using a variable containing the interface name.
Command:
# Replace the interface name here, with the interface name of YOUR card.
CX_INTERFACE="enp129s0f0np0"
# Alternatively, here is a command which will pick the FIRST interface listed.
CX_INTERFACE=$(ls /sys/bus/pci/devices/0000\:$CX_ADDRESS/net/ | head -n 1)
# Echo out, ensure the variables are correctly set.
echo "$CX_ADDRESS > $CX_INTERFACE"
Output:
## From Kube02
root@kube02:~# CX_INTERFACE=$(ls /sys/bus/pci/devices/0000\:$CX_ADDRESS/net/ | head -n 1)
root@kube02:~# echo "$CX_ADDRESS > $CX_INTERFACE"
81:00.0 > enp129s0f0np0
## From Kube01
root@kube01:~# echo "$CX_ADDRESS > $CX_INTERFACE"
01:00.0 > enp1s0f0np0
## From Kube05
root@kube05:/etc/apt/sources.list.d# echo "$CX_ADDRESS > $CX_INTERFACE"
01:00.0 > enp1s0f0np0
Lspci - Verbose Information¶
lspci can be used to list many details regarding the card, such as allocated PCIe lanes, potential issues, ASPM status, speed, etc.
This information is crucial for troubleshooting.
Using the device ID, you can query the information as so:
Command:
lspci -s $CX_ADDRESS -vvvvv
Output:
Output from Kube01 (CX4121A)
root@kube01: CX_ADDRESS="01:00.0"
root@kube01:/etc/apt/sources.list.d# lspci -s $CX_ADDRESS -vvvvv
01:00.0 Ethernet controller: Mellanox Technologies MT27710 Family [ConnectX-4 Lx]
Subsystem: Mellanox Technologies MT27710 Family [ConnectX-4 Lx]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
IOMMU group: 2
Region 0: Memory at 92000000 (64-bit, prefetchable) [size=32M]
Expansion ROM at 95400000 [disabled] [size=1M]
Capabilities: [60] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s unlimited, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 75W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 256 bytes, MaxReadReq 512 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr- TransPend-
LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM not supported
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 8GT/s, Width x8
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+ EqualizationPhase1+
EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [48] Vital Product Data
Product Name: Mellanox ConnectX-4 LX Dual Port 25 GbE SFP Network Adapter
Read-only fields:
[PN] Part number: 020NJD
[EC] Engineering changes: A02
[MN] Manufacture ID: 1028
[SN] Serial number: IL020NJD740316C40056
[VA] Vendor specific: DSV1028VPDR.VER1.0
[VB] Vendor specific: FFV14.14.23.20
[VC] Vendor specific: NPY2
[VD] Vendor specific: PMT78
[VE] Vendor specific: NMVMellanox Technologies, Inc.
[VF] Vendor specific: DTINIC
[VG] Vendor specific: DCM10010010C512020010C514030010C516040010C521010010C523020010C525030010C527040010C5
[VH] Vendor specific: L1D0
[RV] Reserved: checksum good, 3 byte(s) reserved
End
Capabilities: [9c] MSI-X: Enable+ Count=64 Masked-
Vector table: BAR=0 offset=00002000
PBA: BAR=0 offset=00003000
Capabilities: [c0] Vendor Specific Information: Len=18 <?>
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=375mA PME(D0-,D1-,D2-,D3hot-,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [100 v1] Alternative Routing-ID Interpretation (ARI)
ARICap: MFVC- ACS-, Next Function: 1
ARICtl: MFVC- ACS-, Function Group: 0
Capabilities: [110 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 04, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [1c0 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Kernel driver in use: mlx5_core
Kernel modules: mlx5_core
Output from Kube02 (CX416)
Here is the output from another server of mine with the 100G CX4
root@kube02: CX_ADDRESS="81:00.0"
root@kube02:~# lspci -vvvvv -s $CX_ADDRESS
81:00.0 Ethernet controller: Mellanox Technologies MT27700 Family [ConnectX-4]
Subsystem: Mellanox Technologies ConnectX-4 Stand-up dual-port 100GbE MCX416A-CCAT
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 407
NUMA node: 1
IOMMU group: 19
Region 0: Memory at ca000000 (64-bit, prefetchable) [size=32M]
Expansion ROM at cd900000 [disabled] [size=1M]
Capabilities: [60] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s unlimited, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 25W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 256 bytes, MaxReadReq 4096 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr- TransPend-
LnkCap: Port #0, Speed 8GT/s, Width x16, ASPM not supported
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 8GT/s, Width x8 (downgraded)
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABC, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 65ms to 210ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+ EqualizationPhase1+
EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [48] Vital Product Data
Product Name: CX416A - ConnectX-4 QSFP28
Read-only fields:
[PN] Part number: MCX416A-CCAT
[EC] Engineering changes: AG
[SN] Serial number: MT1838X04950
[V0] Vendor specific: PCIeGen3 x16
[RV] Reserved: checksum good, 2 byte(s) reserved
End
Capabilities: [9c] MSI-X: Enable+ Count=64 Masked-
Vector table: BAR=0 offset=00002000
PBA: BAR=0 offset=00003000
Capabilities: [c0] Vendor Specific Information: Len=18 <?>
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=375mA PME(D0-,D1-,D2-,D3hot-,D3cold+)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [100 v1] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt+ UnxCmplt+ RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP+ FCP+ CmpltTO+ CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC+ UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
CEMsk: RxErr+ BadTLP+ BadDLLP+ Rollover+ Timeout+ AdvNonFatalErr+
AERCap: First Error Pointer: 04, ECRCGenCap+ ECRCGenEn+ ECRCChkCap+ ECRCChkEn+
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [150 v1] Alternative Routing-ID Interpretation (ARI)
ARICap: MFVC- ACS-, Next Function: 1
ARICtl: MFVC- ACS-, Function Group: 0
Capabilities: [180 v1] Single Root I/O Virtualization (SR-IOV)
IOVCap: Migration- 10BitTagReq- Interrupt Message Number: 000
IOVCtl: Enable- Migration- Interrupt- MSE- ARIHierarchy+ 10BitTagReq-
IOVSta: Migration-
Initial VFs: 8, Total VFs: 8, Number of VFs: 0, Function Dependency Link: 00
VF offset: 2, stride: 1, Device ID: 1014
Supported Page Size: 000007ff, System Page Size: 00000001
Region 0: Memory at 00000000cc800000 (64-bit, prefetchable)
VF Migration: offset: 00000000, BIR: 0
Capabilities: [1c0 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Capabilities: [230 v1] Access Control Services
ACSCap: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: mlx5_core
Kernel modules: mlx5_core
Manage Firmware¶
Get Firmware Information¶
via mstflint¶
We can use mstflint to get details about the currently installed firmware.
Command:
mstflint -d $CX_ADDRESS query
Output:
From Kube02 (Older firmware)
root@kube02:~# mstflint -d $CX_ADDRESS query
Image type: FS3
FW Version: 12.28.2006
FW Release Date: 15.9.2020
Product Version: 12.28.2006
Rom Info: type=UEFI version=14.21.17 cpu=AMD64,AARCH64
type=PXE version=3.6.102 cpu=AMD64
Description: UID GuidsNumber
Base GUID: 98039b0300688698 4
Base MAC: 98039b688698 4
Image VSD: N/A
Device VSD: N/A
PSID: MT_2150110033
Security Attributes: N/A
In the above case, this firmware is a bit out of date. We will be updating it later in this guide.
Output from Kube01 (Before Update / PSID Change)
root@kube01:/etc/apt/sources.list.d# mstflint -d $CX_ADDRESS q
Image type: FS3
FW Version: 14.14.2320
FW Release Date: 10.5.2016
Product Version: rel-14_14_2320
Rom Info: type=UEFI version=14.9.50
type=PXE version=3.4.729
Description: UID GuidsNumber
Base GUID: 248a070300914da4 8
Base MAC: 248a07914da4 8
Image VSD: N/A
Device VSD: N/A
PSID: DEL2420110034
Security Attributes: N/A
PSID Update
Take note of the PSID here- when I updated this card, I flashed back to OEM firmware, rather then the Dell? branded firmwire which was previously on it.
Output from Kube01 (After Update / PSID Change)
root@kube01:~# mstflint -d $CX_ADDRESS query
Image type: FS3
FW Version: 14.32.1900
FW Release Date: 25.8.2024
Product Version: 14.32.1900
Rom Info: type=UEFI version=14.25.17 cpu=AMD64,AARCH64
type=PXE version=3.6.502 cpu=AMD64
Description: UID GuidsNumber
Base GUID: 248a070300914da4 8
Base MAC: 248a07914da4 8
Image VSD: N/A
Device VSD: N/A
PSID: MT_2420110034
Security Attributes: N/A
via mlxfwmanager¶
Command:
mlxfwmanager
Output:
From Kube02 (Older Firmware)
root@kube02:~# mlxfwmanager
Querying Mellanox devices firmware ...
Device #1:
----------
Device Type: ConnectX4
Part Number: MCX416A-CCA_Ax
Description: ConnectX-4 EN network interface card; 100GbE dual-port QSFP28; PCIe3.0 x16; ROHS R6
PSID: MT_2150110033
PCI Device Name: 0000:81:00.0
Base GUID: 98039b0300688698
Base MAC: 98039b688698
Versions: Current Available
FW 12.28.2006 N/A
PXE 3.6.0102 N/A
UEFI 14.21.0017 N/A
Status: No matching image found
From Kube01 (BEFORE Updating Firmware)
root@kube01:~/mlnx# mlxfwmanager
Querying Mellanox devices firmware ...
Device #1:
----------
Device Type: ConnectX4LX
Part Number: 020NJD_0MRT0D_Ax
Description: Mellanox 25GBE 2P ConnectX-4 Lx Adapter
PSID: DEL2420110034
PCI Device Name: 0000:01:00.0
Base MAC: 248a07914da4
Versions: Current Available
FW 14.14.2320 N/A
PXE 3.4.0729 N/A
UEFI 14.9.0050 N/A
Status: No matching image found
From Kube01 (Firmware Updated)
root@kube01:~# mlxfwmanager
Querying Mellanox devices firmware ...
Device #1:
----------
Device Type: ConnectX4LX
Part Number: MCX4121A-ACA_Ax
Description: ConnectX-4 Lx EN network interface card; 25GbE dual-port SFP28; PCIe3.0 x8; ROHS R6
PSID: MT_2420110034
PCI Device Name: 0000:01:00.0
Base MAC: 248a07914da4
Versions: Current Available
FW 14.32.1900 N/A
PXE 3.6.0502 N/A
UEFI 14.25.0017 N/A
Status: No matching image found
via ethtool¶
You can use ethtool -i to get firmware information from an interface.
Command:
ethtool -i $CX_INTERFACE
Output:
root@kube01:~# ethtool -i $CX_INTERFACE
driver: mlx5_core
version: 6.8.12-8-pve
firmware-version: 14.32.1900 (MT_2420110034)
expansion-rom-version:
bus-info: 0000:01:00.0
supports-statistics: yes
supports-test: yes
supports-eeprom-access: no
supports-register-dump: no
supports-priv-flags: yes
root@kube02:~# ethtool -i $CX_INTERFACE
driver: mlx5_core
version: 6.8.12-4-pve
firmware-version: 12.28.2006 (MT_2150110033)
expansion-rom-version:
bus-info: 0000:81:00.0
supports-statistics: yes
supports-test: yes
supports-eeprom-access: no
supports-register-dump: no
supports-priv-flags: yes
root@kube05:~# ethtool -i $CX_INTERFACE
driver: mlx5_core
version: 6.8.12-8-pve
firmware-version: 12.28.2006 (MT_2150110033)
expansion-rom-version:
bus-info: 0000:01:00.0
supports-statistics: yes
supports-test: yes
supports-eeprom-access: no
supports-register-dump: no
supports-priv-flags: yes
Locate New Firmware¶
The first task we need to do, is identify the card.
Identify Card¶
via mlxfwmanager¶
To find new firmware, we need the model of your network adapter.
This is the "Part Number" field from mlxfwmanager
Command:
mlxfwmanager | grep -E "Part Number|PSID"
Output
# Before updating with Dell Firmware
root@kube01:~# mlxfwmanager | grep -E "Part Number|PSID"
Part Number: 020NJD_0MRT0D_Ax
PSID: DEL2420110034
# After updating & flashing back to OEM Firmware
root@kube01:~# mlxfwmanager | grep -E "Part Number|PSID"
Part Number: MCX4121A-ACA_Ax
PSID: MT_2420110034
root@kube02:~# mlxfwmanager | grep -E "Part Number|PSID"
Part Number: MCX416A-CCA_Ax
PSID: MT_2150110033
root@kube05:/etc/apt/sources.list.d# mlxfwmanager | grep -E "Part Number|PSID"
Part Number: MCX416A-CCA_Ax
PSID: MT_2150110033
In the above output, Kube01 has a CX-4121A, while Kube02/Kube05 have CX-416A
via Physical Inspection¶
The back of the card "should" contain both a sticker, and label on the PCB with the specific model of your card.

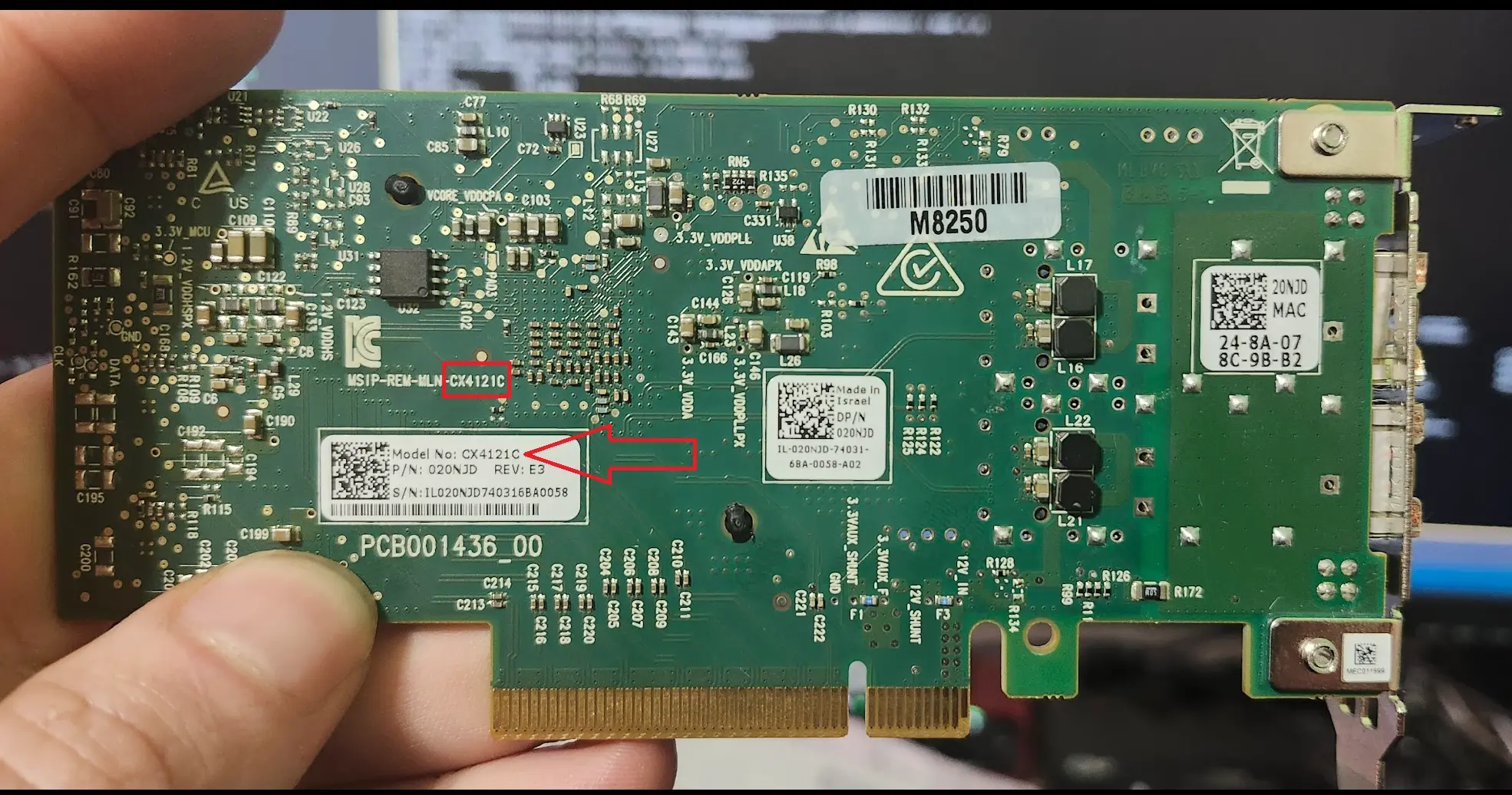

This was from a dead card 25G CX-4121C I had on hand. It is a CX-4121C
Digging through my stash, I found a few more examples.

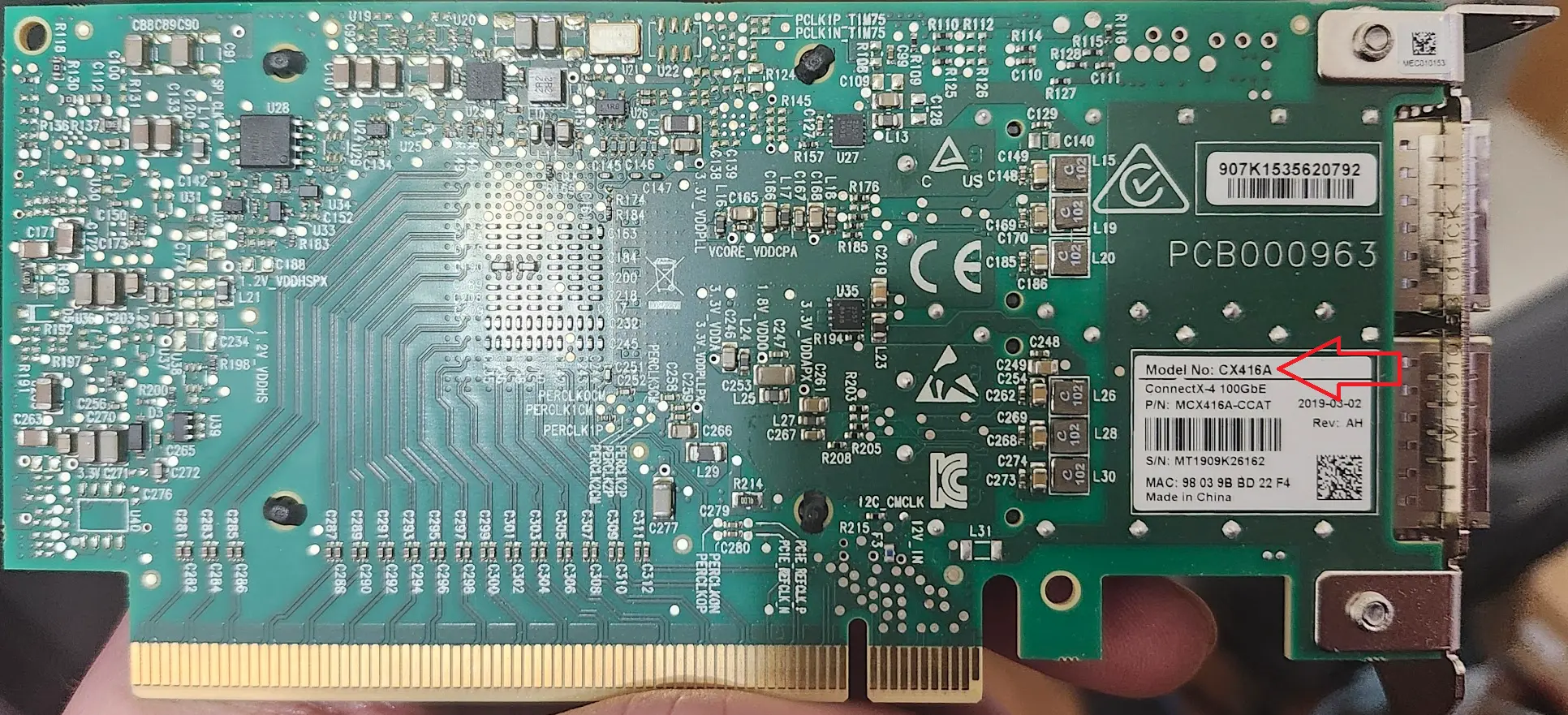

Here is the CX-416A 100G NIC used in Kube02, and Kube05 currently.

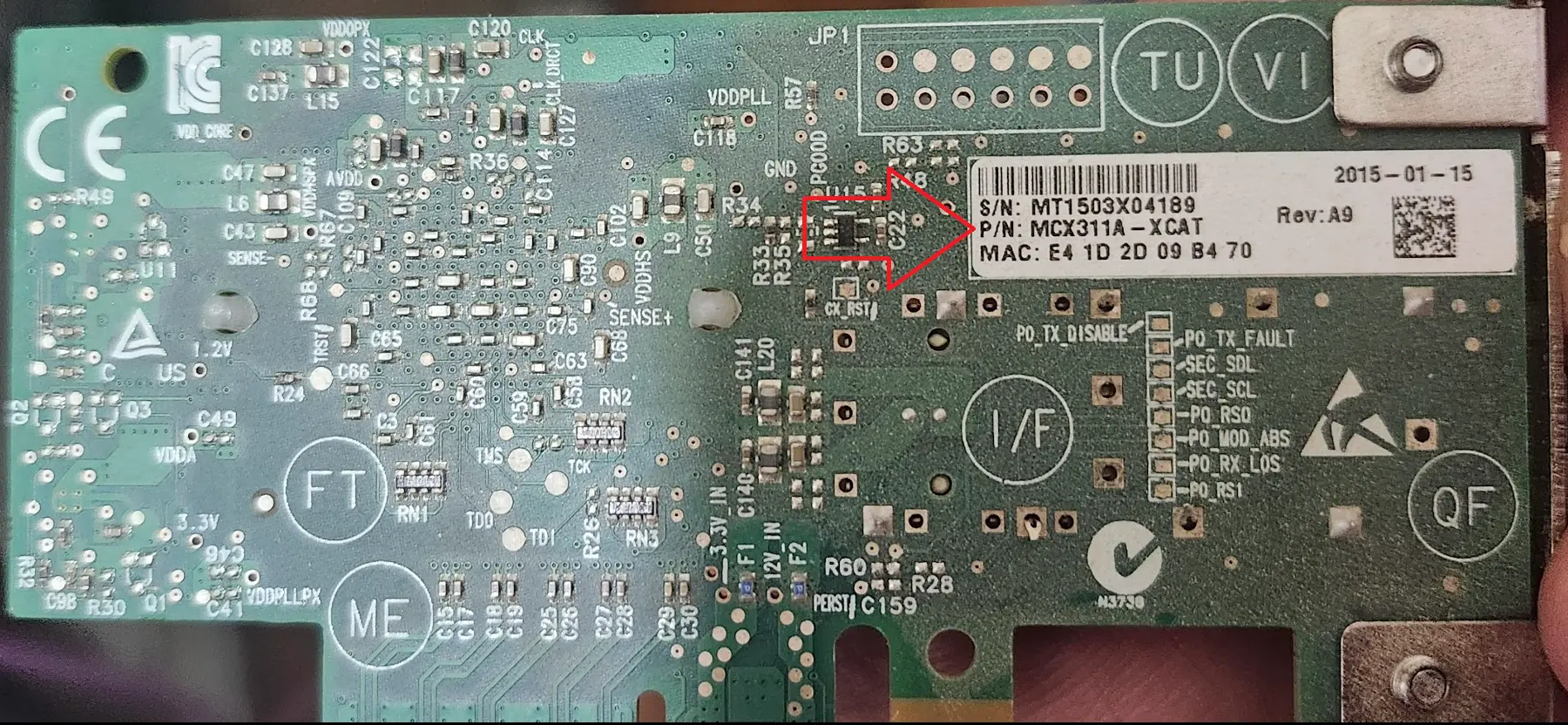

Here is an older CX-311A-XCAT (Single-port 10G. Dirt cheap. But old.)

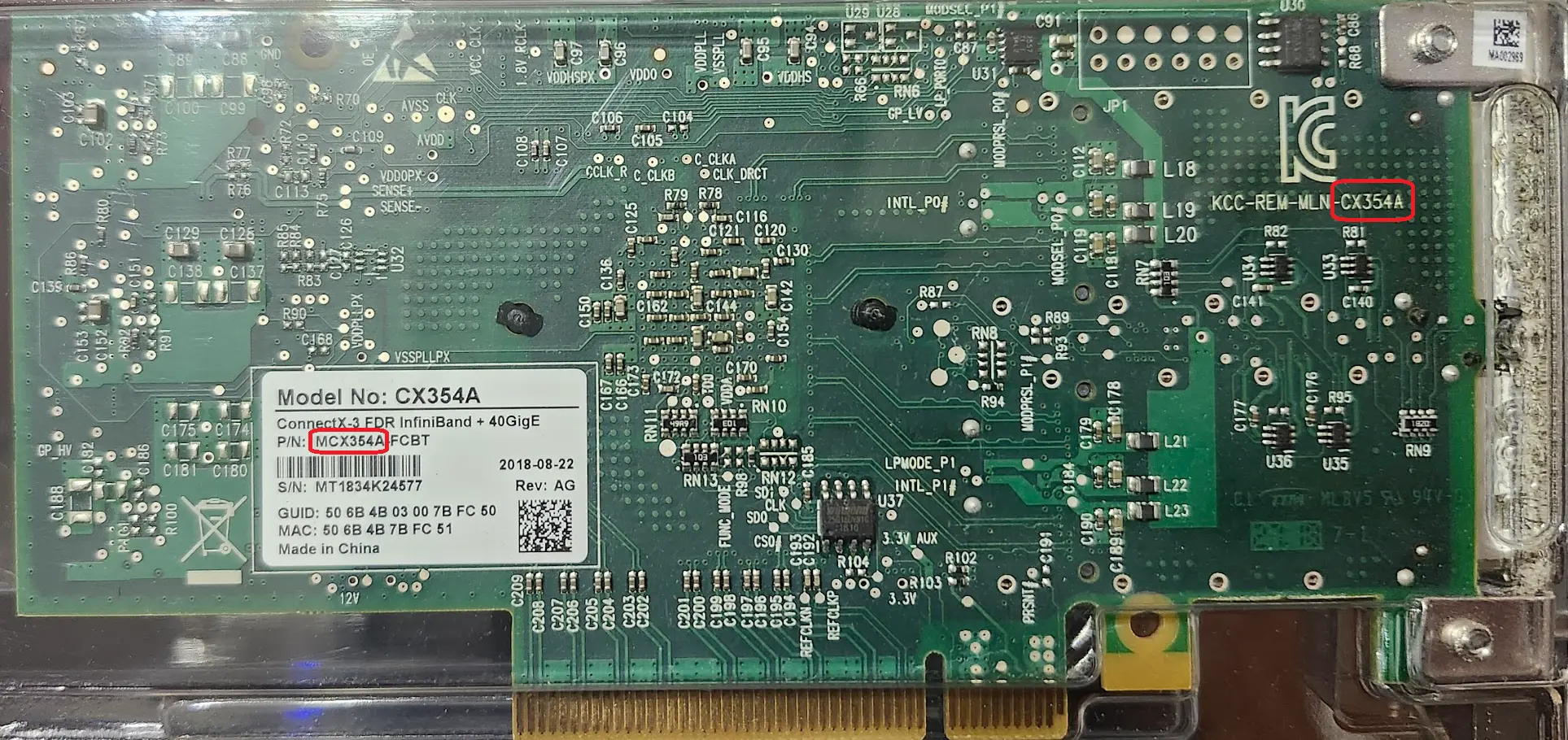

And, finally, a ConnectX-3 CX-354A (Dual-Port 40G Ethernet / 56G Infiniband)
Find Firmware¶
We can download firmware from Nvidia.
Info
Links.. subject to change.
Don't come at me with pitchforks with Nvidia moves these links... again...
- Master Listing
- ConnectX-3 EN Firmware
- ConnectX-3 Pro EN Firmware
- ConnectX-4 LX Firmware
- ConnectX-4 EN Firmware
Example - CX-416A (Kube05)¶
For this demo, I will be updating the firmware for the CX-416A on Kube05.
First- I navigate to the listings for ConnectX-4 EN Firmware.
Next, we need to locate the PSID.
From the output from before- we have these details:
root@kube05:/etc/apt/sources.list.d# mlxfwmanager | grep -E "Part Number|PSID"
Part Number: MCX416A-CCA_Ax
PSID: MT_2150110033

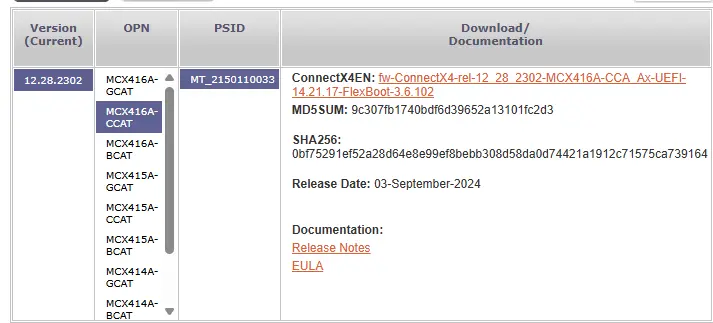

Using both the part number, and PSID, we can locate the correct firmware.
Info
If you cannot exactly match the part number, look through the various categories and try to match the PSID.
Copy the download link for later.
In this example, the link is: https://www.mellanox.com/downloads/firmware/fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip
Example - Dell-Branded CX4121A¶
Using the data from Kube01, we have these details:
root@kube01:~# mlxfwmanager | grep -E "Part Number|PSID|Description"
Part Number: 020NJD_0MRT0D_Ax
PSID: DEL2420110034
Description: Mellanox 25GBE 2P ConnectX-4 Lx Adapter
The first thing to note- this is a Dell product number. As well, the PSID prefixed with "DEL", also hints at Dell.
For this, getting the firmware was slightly tricker.
But- lets start at the ConnectX-4 LX Firmware
We know this is a CX-4121A, based on the back of the card.

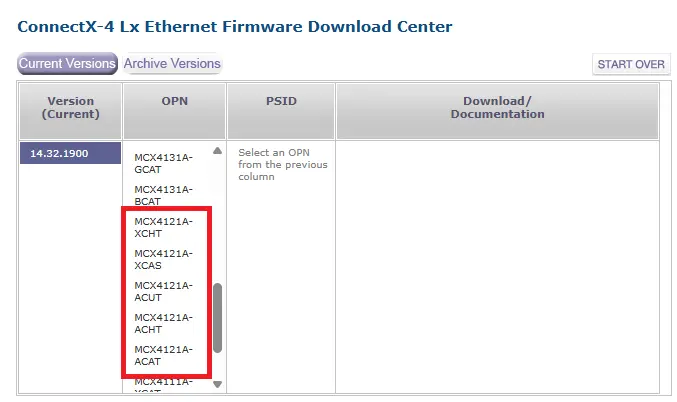

However, we run into an issue- this doesn't help us narrow it down.
So- at this point, you have to do a tiny bit of guess work.
Take the original PSID: DEL2420110034
Strip the DEL, which leaves 2420110034
And search through each category until you find 2420110034

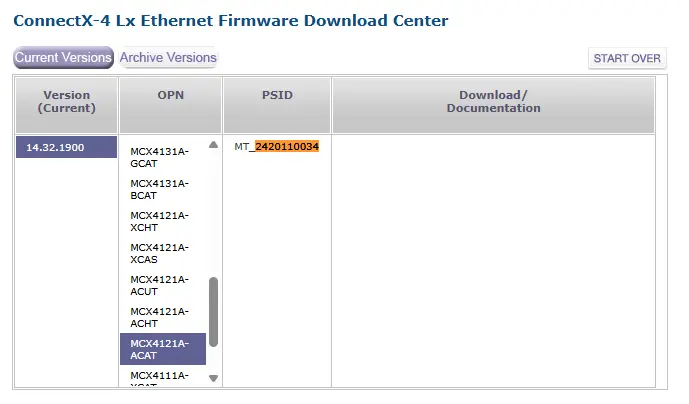

In this example, I found the matching partial PSID under "MCX4121A-ACAT"
The resulting URL being: https://www.mellanox.com/downloads/firmware/fw-ConnectX4Lx-rel-14_32_1900-MCX4121A-ACA_Ax-UEFI-14.25.17-FlexBoot-3.6.502.bin.zip
Flash Card¶
Since... I have a few of these to update, I am going to script out the process.
Info
Normally, when updating firmware... Especially the NIC, I recommend you do so with a physically connected console (or IP-KVM).
However, from my experiences doing this process- it can be done "relatively safely" over SSH as the firmware does not seem to apply until after boot.
# Using this URL as example: https://www.mellanox.com/downloads/firmware/fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip
# Set Firmware URL
FW_URL="https://www.mellanox.com/downloads/firmware/fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip"
# Get the archive name from the URL.
FW_ARCHIVE_NAME=$(basename $FW_URL)
# Get the resulting fw bin filename. (Remove the .zip extension)
FW_FILE_NAME=$(basename "$FW_ARCHIVE_NAME" .zip)
# Debug output
echo "Archive Name: $FW_ARCHIVE_NAME"
echo "Bin Name: $FW_FILE_NAME"
echo "PCI Address: $CX_ADDRESS"
# Download firmware
wget $FW_URL
# Extract Firmware
unzip $FW_ARCHIVE_NAME
# Burn the new firmware.
mstflint --allow_psid_change -d $CX_ADDRESS -i $FW_FILE_NAME burn
# Finally, cleanup the files we downloaded.
rm $FW_ARCHIVE_NAME
rm $FW_FILE_NAME
Output from Kube05
root@kube05:~# # Using this URL as example: https://www.mellanox.com/downloads/firmware/fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip
root@kube05:~# # Set Firmware URL
root@kube05:~# FW_URL="https://www.mellanox.com/downloads/firmware/fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip"
root@kube05:~# # Get the archive name from the URL.
root@kube05:~# FW_ARCHIVE_NAME=$(basename $FW_URL)
root@kube05:~# # Get the resulting fw bin filename. (Remove the .zip extension)
root@kube05:~# FW_FILE_NAME=$(basename "$FW_ARCHIVE_NAME" .zip)
root@kube05:~#
root@kube05:~# # Debug output
root@kube05:~# echo "Archive Name: $FW_ARCHIVE_NAME"
Archive Name: fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip
root@kube05:~# echo "Bin Name: $FW_FILE_NAME"
Bin Name: fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin
root@kube05:~# echo "PCI Address: $CX_ADDRESS"
PCI Address: 01:00.0
root@kube05:~#
root@kube05:~# # Download firmware
root@kube05:~# wget $FW_URL
--2025-03-15 09:32:44-- https://www.mellanox.com/downloads/firmware/fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip
Resolving www.mellanox.com (www.mellanox.com)... 23.220.161.68, 23.220.161.71
Connecting to www.mellanox.com (www.mellanox.com)|23.220.161.68|:443... connected.
HTTP request sent, awaiting response... 301 Moved Permanently
Location: https://content.mellanox.com/firmware/fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip [following]
--2025-03-15 09:32:44-- https://content.mellanox.com/firmware/fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip
Resolving content.mellanox.com (content.mellanox.com)... 107.178.241.102
Connecting to content.mellanox.com (content.mellanox.com)|107.178.241.102|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 2366377 (2.3M) [application/zip]
Saving to: ‘fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip’
fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-Fl 100%[========================================================================================================================================>] 2.26M 8.35MB/s in 0.3s
2025-03-15 09:32:45 (8.35 MB/s) - ‘fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip’ saved [2366377/2366377]
root@kube05:~# # Extract Firmware
root@kube05:~# unzip $FW_ARCHIVE_NAME
Archive: fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin.zip
inflating: fw-ConnectX4-rel-12_28_2302-MCX416A-CCA_Ax-UEFI-14.21.17-FlexBoot-3.6.102.bin
root@kube05:~# mstflint --allow_psid_change -d $CX_ADDRESS -i $FW_FILE_NAME burn
Current FW version on flash: 12.28.2006
New FW version: 12.28.2302
FSMST_INITIALIZE - OK
Writing Boot image component - OK
-I- To load new FW run mstfwreset or reboot machine.
root@kube05:~# rm $FW_ARCHIVE_NAME
root@kube05:~# rm $FW_FILE_NAME
PSID Mismatch¶
Info
This flag is already included with the above script.
However- this dedicated section was added to assist others with this issue.
If you have a Dell/HP branded version, you may run into a PSID Mismatch.
You will receive this error:
root@kube01:~/mlnx# mstflint -d $CX_ADDRESS -i $FW_FILE_NAME burn
Done.
Current FW version on flash: 14.14.2320
New FW version: 14.32.1900
-E- PSID mismatch. The PSID on flash (DEL2420110034) differs from the PSID in the given image (MT_2420110034).
This will stop the flashing process. To, enable changing the PSID, we can use this flag: --allow_psid_change
root@kube01:~/mlnx# mstflint --allow_psid_change -d $CX_ADDRESS -i $FW_FILE_NAME burn
Done.
Current FW version on flash: 14.14.2320
New FW version: 14.32.1900
You are about to replace current PSID on flash - "DEL2420110034" with a different PSID - "MT_2420110034".
Note: It is highly recommended not to change the PSID.
Do you want to continue ? (y/n) [n] : y
Burning FW image without signatures - 1%
Burning FW image without signatures - OK
Restoring signature - OK
-I- To load new FW run mstfwreset or reboot machine.
After, you will have a card with Mellanox firmware, instead of Dell/HP/etc firmware.
Configuration¶
Read Configuration¶
via ethtool¶
ethtool can be used to query information from ethernet interfaces.
Please read ethtool manpages for additional options.
# Query basic information, link modes, FEC, Speed, Duplex, etc...
# Ie. Layer 2 Data / Parameters
echo "Layer 2 Configuration"
ethtool $CX_INTERFACE
# Show ring / buffer parameters
echo "Ring parameters"
ethtool -g $CX_INTERFACE
# Hardware Offload Parameters
echo "Offload Parameters"
ethtool -k $CX_INTERFACE
# Driver Information
echo "Driver Information"
ethtool -i $CX_INTERFACE
# Coalesce Configuration
echo "Pause Information"
ethtool -c $CX_INTERFACE
# Channel Configuration
echo "Channel Information"
ethtool -l $CX_INTERFACE
Info
ethtool can also set parameters. However, these changes are not persistent!
The changes would need to be saved somewhere, or placed in a script.
Output from Kube01
root@kube01:~# # Query basic information, link modes, FEC, Speed, Duplex, etc...
root@kube01:~# # Ie. Layer 2 Data / Parameters
root@kube01:~# echo "Layer 2 Configuration"
Layer 2 Configuration
root@kube01:~# ethtool $CX_INTERFACE
Settings for enp1s0f0np0:
Supported ports: [ Backplane ]
Supported link modes: 1000baseKX/Full
10000baseKR/Full
25000baseCR/Full
25000baseKR/Full
25000baseSR/Full
Supported pause frame use: Symmetric
Supports auto-negotiation: Yes
Supported FEC modes: None RS BASER
Advertised link modes: 1000baseKX/Full
10000baseKR/Full
25000baseCR/Full
25000baseKR/Full
25000baseSR/Full
Advertised pause frame use: Symmetric
Advertised auto-negotiation: Yes
Advertised FEC modes: RS
Speed: 25000Mb/s
Duplex: Full
Auto-negotiation: on
Port: Direct Attach Copper
PHYAD: 0
Transceiver: internal
Supports Wake-on: d
Wake-on: d
Link detected: yes
root@kube01:~# # Show ring / buffer parameters
root@kube01:~# echo "Ring parameters"
Ring parameters
root@kube01:~# ethtool -g $CX_INTERFACE
Ring parameters for enp1s0f0np0:
Pre-set maximums:
RX: 8192
RX Mini: n/a
RX Jumbo: n/a
TX: 8192
Current hardware settings:
RX: 1024
RX Mini: n/a
RX Jumbo: n/a
TX: 1024
RX Buf Len: n/a
CQE Size: n/a
TX Push: off
TCP data split: off
root@kube01:~# # Hardware Offload Parameters
root@kube01:~# echo "Offload Parameters"
Offload Parameters
root@kube01:~# ethtool -k $CX_INTERFACE
Features for enp1s0f0np0:
rx-checksumming: on
tx-checksumming: on
tx-checksum-ipv4: off [fixed]
tx-checksum-ip-generic: on
tx-checksum-ipv6: off [fixed]
tx-checksum-fcoe-crc: off [fixed]
tx-checksum-sctp: off [fixed]
scatter-gather: on
tx-scatter-gather: on
tx-scatter-gather-fraglist: off [fixed]
tcp-segmentation-offload: on
tx-tcp-segmentation: on
tx-tcp-ecn-segmentation: off [fixed]
tx-tcp-mangleid-segmentation: off
tx-tcp6-segmentation: on
generic-segmentation-offload: on
generic-receive-offload: on
large-receive-offload: off
rx-vlan-offload: on
tx-vlan-offload: on
ntuple-filters: off
receive-hashing: on
highdma: on [fixed]
rx-vlan-filter: on
vlan-challenged: off [fixed]
tx-lockless: off [fixed]
netns-local: off [fixed]
tx-gso-robust: off [fixed]
tx-fcoe-segmentation: off [fixed]
tx-gre-segmentation: on
tx-gre-csum-segmentation: on
tx-ipxip4-segmentation: off [fixed]
tx-ipxip6-segmentation: off [fixed]
tx-udp_tnl-segmentation: on
tx-udp_tnl-csum-segmentation: on
tx-gso-partial: on
tx-tunnel-remcsum-segmentation: off [fixed]
tx-sctp-segmentation: off [fixed]
tx-esp-segmentation: off [fixed]
tx-udp-segmentation: on
tx-gso-list: off [fixed]
fcoe-mtu: off [fixed]
tx-nocache-copy: off
loopback: off [fixed]
rx-fcs: off
rx-all: off
tx-vlan-stag-hw-insert: on
rx-vlan-stag-hw-parse: off [fixed]
rx-vlan-stag-filter: on [fixed]
l2-fwd-offload: off [fixed]
hw-tc-offload: off
esp-hw-offload: off [fixed]
esp-tx-csum-hw-offload: off [fixed]
rx-udp_tunnel-port-offload: on
tls-hw-tx-offload: off [fixed]
tls-hw-rx-offload: off [fixed]
rx-gro-hw: off [fixed]
tls-hw-record: off [fixed]
rx-gro-list: off
macsec-hw-offload: on
rx-udp-gro-forwarding: off
hsr-tag-ins-offload: off [fixed]
hsr-tag-rm-offload: off [fixed]
hsr-fwd-offload: off [fixed]
hsr-dup-offload: off [fixed]
root@kube01:~# # Driver Information
root@kube01:~# echo "Driver Information"
Driver Information
root@kube01:~# ethtool -i $CX_INTERFACE
driver: mlx5_core
version: 6.8.12-8-pve
firmware-version: 14.32.1900 (MT_2420110034)
expansion-rom-version:
bus-info: 0000:01:00.0
supports-statistics: yes
supports-test: yes
supports-eeprom-access: no
supports-register-dump: no
supports-priv-flags: yes
root@kube01:~# # Coalesce Configuration
root@kube01:~# echo "Pause Information"
Pause Information
root@kube01:~# ethtool -c $CX_INTERFACE
Coalesce parameters for enp1s0f0np0:
Adaptive RX: on TX: on
stats-block-usecs: n/a
sample-interval: n/a
pkt-rate-low: n/a
pkt-rate-high: n/a
rx-usecs: 8
rx-frames: 128
rx-usecs-irq: n/a
rx-frames-irq: n/a
tx-usecs: 8
tx-frames: 128
tx-usecs-irq: n/a
tx-frames-irq: n/a
rx-usecs-low: n/a
rx-frame-low: n/a
tx-usecs-low: n/a
tx-frame-low: n/a
rx-usecs-high: n/a
rx-frame-high: n/a
tx-usecs-high: n/a
tx-frame-high: n/a
CQE mode RX: on TX: off
root@kube01:~# # Channel Configuration
root@kube01:~# echo "Channel Information"
Channel Information
root@kube01:~# ethtool -l $CX_INTERFACE
Channel parameters for enp1s0f0np0:
Pre-set maximums:
RX: n/a
TX: n/a
Other: n/a
Combined: 12
Current hardware settings:
RX: n/a
TX: n/a
Other: n/a
Combined: 12
root@kube01:~#
via mlxconfig¶
mlxconfig does exactly what its name says. It gets, and sets configurations.
Info
Unlike ethtool, changes made using mlxconfig are persistent.
Command:
mlxconfig -d $CX_ADDRESS query
Output:
From Kube01
root@kube01:~# mlxconfig -d $CX_ADDRESS q
Device #1:
----------
Device type: ConnectX4LX
Name: MCX4121A-ACA_Ax
Description: ConnectX-4 Lx EN network interface card; 25GbE dual-port SFP28; PCIe3.0 x8; ROHS R6
Device: 01:00.0
Configurations: Next Boot
MEMIC_BAR_SIZE 0
MEMIC_SIZE_LIMIT _256KB(1)
FLEX_PARSER_PROFILE_ENABLE 0
FLEX_IPV4_OVER_VXLAN_PORT 0
ROCE_NEXT_PROTOCOL 254
PF_NUM_OF_VF_VALID False(0)
NON_PREFETCHABLE_PF_BAR False(0)
VF_VPD_ENABLE False(0)
STRICT_VF_MSIX_NUM False(0)
VF_NODNIC_ENABLE False(0)
NUM_PF_MSIX_VALID True(1)
NUM_OF_VFS 8
NUM_OF_PF 2
SRIOV_EN False(0)
PF_LOG_BAR_SIZE 5
VF_LOG_BAR_SIZE 0
NUM_PF_MSIX 63
NUM_VF_MSIX 11
INT_LOG_MAX_PAYLOAD_SIZE AUTOMATIC(0)
PCIE_CREDIT_TOKEN_TIMEOUT 0
ACCURATE_TX_SCHEDULER False(0)
PARTIAL_RESET_EN False(0)
SW_RECOVERY_ON_ERRORS False(0)
RESET_WITH_HOST_ON_ERRORS False(0)
PCI_BUS0_RESTRICT_SPEED PCI_GEN_1(0)
PCI_BUS0_RESTRICT_ASPM False(0)
PCI_BUS0_RESTRICT_WIDTH PCI_X1(0)
PCI_BUS0_RESTRICT False(0)
PCI_DOWNSTREAM_PORT_OWNER Array[0..15]
CQE_COMPRESSION BALANCED(0)
IP_OVER_VXLAN_EN False(0)
MKEY_BY_NAME False(0)
UCTX_EN True(1)
PCI_ATOMIC_MODE PCI_ATOMIC_DISABLED_EXT_ATOMIC_ENABLED(0)
TUNNEL_ECN_COPY_DISABLE False(0)
LRO_LOG_TIMEOUT0 6
LRO_LOG_TIMEOUT1 7
LRO_LOG_TIMEOUT2 8
LRO_LOG_TIMEOUT3 13
ICM_CACHE_MODE DEVICE_DEFAULT(0)
TX_SCHEDULER_BURST 0
LOG_MAX_QUEUE 17
LOG_DCR_HASH_TABLE_SIZE 14
MAX_PACKET_LIFETIME 0
DCR_LIFO_SIZE 16384
NUM_OF_PLANES_P1 0
NUM_OF_PLANES_P2 0
IB_PROTO_WIDTH_EN_MASK_P1 0
IB_PROTO_WIDTH_EN_MASK_P2 0
ROCE_CC_PRIO_MASK_P1 255
ROCE_CC_CNP_MODERATION_P1 DEVICE_DEFAULT(0)
ROCE_CC_PRIO_MASK_P2 255
ROCE_CC_CNP_MODERATION_P2 DEVICE_DEFAULT(0)
CLAMP_TGT_RATE_AFTER_TIME_INC_P1 True(1)
CLAMP_TGT_RATE_P1 False(0)
RPG_TIME_RESET_P1 300
RPG_BYTE_RESET_P1 32767
RPG_THRESHOLD_P1 1
RPG_MAX_RATE_P1 0
RPG_AI_RATE_P1 5
RPG_HAI_RATE_P1 50
RPG_GD_P1 11
RPG_MIN_DEC_FAC_P1 50
RPG_MIN_RATE_P1 1
RATE_TO_SET_ON_FIRST_CNP_P1 0
DCE_TCP_G_P1 1019
DCE_TCP_RTT_P1 1
RATE_REDUCE_MONITOR_PERIOD_P1 4
INITIAL_ALPHA_VALUE_P1 1023
MIN_TIME_BETWEEN_CNPS_P1 4
CNP_802P_PRIO_P1 6
CNP_DSCP_P1 48
CLAMP_TGT_RATE_AFTER_TIME_INC_P2 True(1)
CLAMP_TGT_RATE_P2 False(0)
RPG_TIME_RESET_P2 300
RPG_BYTE_RESET_P2 32767
RPG_THRESHOLD_P2 1
RPG_MAX_RATE_P2 0
RPG_AI_RATE_P2 5
RPG_HAI_RATE_P2 50
RPG_GD_P2 11
RPG_MIN_DEC_FAC_P2 50
RPG_MIN_RATE_P2 1
RATE_TO_SET_ON_FIRST_CNP_P2 0
DCE_TCP_G_P2 1019
DCE_TCP_RTT_P2 1
RATE_REDUCE_MONITOR_PERIOD_P2 4
INITIAL_ALPHA_VALUE_P2 1023
MIN_TIME_BETWEEN_CNPS_P2 4
CNP_802P_PRIO_P2 6
CNP_DSCP_P2 48
LLDP_NB_DCBX_P1 False(0)
LLDP_NB_RX_MODE_P1 OFF(0)
LLDP_NB_TX_MODE_P1 OFF(0)
LLDP_NB_DCBX_P2 False(0)
LLDP_NB_RX_MODE_P2 OFF(0)
LLDP_NB_TX_MODE_P2 OFF(0)
ROCE_RTT_RESP_DSCP_P1 0
ROCE_RTT_RESP_DSCP_MODE_P1 DEVICE_DEFAULT(0)
ROCE_RTT_RESP_DSCP_P2 0
ROCE_RTT_RESP_DSCP_MODE_P2 DEVICE_DEFAULT(0)
DCBX_IEEE_P1 True(1)
DCBX_CEE_P1 True(1)
DCBX_WILLING_P1 True(1)
DCBX_IEEE_P2 True(1)
DCBX_CEE_P2 True(1)
DCBX_WILLING_P2 True(1)
KEEP_ETH_LINK_UP_P1 True(1)
KEEP_IB_LINK_UP_P1 False(0)
KEEP_LINK_UP_ON_BOOT_P1 False(0)
KEEP_LINK_UP_ON_STANDBY_P1 False(0)
DO_NOT_CLEAR_PORT_STATS_P1 False(0)
AUTO_POWER_SAVE_LINK_DOWN_P1 False(0)
KEEP_ETH_LINK_UP_P2 True(1)
KEEP_IB_LINK_UP_P2 False(0)
KEEP_LINK_UP_ON_BOOT_P2 False(0)
KEEP_LINK_UP_ON_STANDBY_P2 False(0)
DO_NOT_CLEAR_PORT_STATS_P2 False(0)
AUTO_POWER_SAVE_LINK_DOWN_P2 False(0)
NUM_OF_VL_P1 _4_VLs(3)
NUM_OF_TC_P1 _8_TCs(0)
NUM_OF_PFC_P1 8
VL15_BUFFER_SIZE_P1 0
NUM_OF_VL_P2 _4_VLs(3)
NUM_OF_TC_P2 _8_TCs(0)
NUM_OF_PFC_P2 8
VL15_BUFFER_SIZE_P2 0
DUP_MAC_ACTION_P1 LAST_CFG(0)
SRIOV_IB_ROUTING_MODE_P1 LID(1)
IB_ROUTING_MODE_P1 LID(1)
DUP_MAC_ACTION_P2 LAST_CFG(0)
SRIOV_IB_ROUTING_MODE_P2 LID(1)
IB_ROUTING_MODE_P2 LID(1)
PHY_FEC_OVERRIDE_P1 DEVICE_DEFAULT(0)
PHY_FEC_OVERRIDE_P2 DEVICE_DEFAULT(0)
PF_SD_GROUP 0
ROCE_CONTROL ROCE_ENABLE(2)
PCI_WR_ORDERING per_mkey(0)
MULTI_PORT_VHCA_EN False(0)
PORT_OWNER True(1)
ALLOW_RD_COUNTERS True(1)
RENEG_ON_CHANGE True(1)
TRACER_ENABLE True(1)
IP_VER IPv4(0)
BOOT_UNDI_NETWORK_WAIT 0
UEFI_HII_EN True(1)
BOOT_DBG_LOG False(0)
UEFI_LOGS DISABLED(0)
BOOT_VLAN 1
LEGACY_BOOT_PROTOCOL NONE(0)
BOOT_INTERRUPT_DIS False(0)
BOOT_LACP_DIS False(0)
BOOT_VLAN_EN True(1)
BOOT_PKEY 0
DYNAMIC_VF_MSIX_TABLE False(0)
EXP_ROM_UEFI_ARM_ENABLE False(0)
EXP_ROM_UEFI_x86_ENABLE False(0)
EXP_ROM_PXE_ENABLE True(1)
ADVANCED_PCI_SETTINGS False(0)
SAFE_MODE_THRESHOLD 10
SAFE_MODE_ENABLE True(1)
Common Settings¶
Note, these configurations are all set using mlxconfig
Info
You can also configure the network adapters at boot-time, by pressing the displayed key-combination during the boot process.
This method, might be a bit easier for you.
If- you have a dual-port NIC, you will need to set many of these commands for BOTH PCI Addresses.
To view all support configurations, with documentation, use this command:
mlxconfig -d $CX_ADDRESS show_confs
I will be using these variables for the below configurations.
If- your adapter does not have multiple PHYSICAL addresses displayed- remove the line referencing CX_ADDRESS_2
Info
Physical is mentioned here, as these cards support SR-IOV, which will present multiple "virtual" copies of the card, which can be directly passed into virtual machines, kubernetes, etc.
lspci | grep Mellanox
# Fill in your addresses.
CX_ADDRESS_1="01:00.0"
CX_ADDRESS_2="01:00.1"
Enable/Disable PXE/iSCSI Boot / Set Boot Parameters¶
I personally, don't PXE boot my hypervisors. As such, eliminating the extra 30+ seconds during boot, is ideal for me.
This can also be set to do iSCSI boot as well. (aka, You can boot from an iSCSI disk on a remote NAS)
Each physical port is set independantly.
The NICs support IPv4, and 6, Vlans, PXE and iSCSI, and quite a few other boot-related settings.
Command:
# Set desired mode: Options:
# - None
# - PXE - With failover
# - iSCSI - Will failover to PXE after failures
# - PXE_WO_FAIL_ISCSI - PXE without failover to iSCSI
# - ISCSI_WO_FAIL_PXE - iSCSI boot without failover to PXE
CX_1_BOOTMODE="None"
CX_2_BOOTMODE="None"
## Enable, or Disable setting vlan for PXE/iSCSI boot
CX_1_BOOT_VLAN_ENABLE=0
CX_2_BOOT_VLAN_ENABLE=0
## Sets the VLAN used for PXE/iSCSI boot (if the above setting is enabled.)
CX_1_BOOT_VLAN=1
CX_2_BOOT_VLAN=1
mlxconfig -d $CX_ADDRESS_1 set LEGACY_BOOT_PROTOCOL=$CX_1_BOOTMODE BOOT_VLAN_EN=$CX_1_BOOT_VLAN_ENABLE BOOT_VLAN=$CX_1_BOOT_VLAN
mlxconfig -d $CX_ADDRESS_2 set LEGACY_BOOT_PROTOCOL=$CX_2_BOOTMODE BOOT_VLAN_EN=$CX_2_BOOT_VLAN_ENABLE BOOT_VLAN=$CX_2_BOOT_VLAN
If- you want to enable booting PXE/iSCSI via these NIC's, I'd recommend using the boot-time configuration utility, as it exposes the options in a much easier to use way.
Enable/Disable SR-IOV¶
SR-IOV is used to present multiple "virtual" copies of your physical NIC. These instances can be passed into a VM, allowing the VM DIRECT access to the network, skipping the hypervisor's networking stack.
The benefit here- is potentially dramatically increased networking performance. However- there are some trade-offs...
A few examples being-
- Proxmox firewall rules will have no-effect
- Work-arounds are needed for VM to be able to talk to Host, and vise-versa.
Each physical port is set independantly.
# 1 = Enable, 0 = Disable
CX_1_SRIOV=0
CX_2_SRIOV=0
# Set number of VFS (SRIOV Virtual Functions)
CX_1_SRIOV_NUMVFS=16
CX_2_SRIOV_NUMVFS=16
# Set the desired configurations.
mlxconfig -d $CX_ADDRESS_1 set SRIOV_EN=$CX_1_SRIOV NUM_OF_VFS=$CX_1_SRIOV_NUMVFS
mlxconfig -d $CX_ADDRESS_2 set SRIOV_EN=$CX_2_SRIOV NUM_OF_VFS=$CX_2_SRIOV_NUMVFS
Power Saving Features¶
Here are a few power savings features:
Info
YES. The ConnectX-4 cards supports ASPM.
Doesn't work for you? Update your firmware. The feature is relatively new. Make sure you have a ConnextX-4 or higher.
root@kube01:~# lspci -vvvv -s $CX_ADDRESS | grep ASPM
LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM L1, Exit Latency L1 <4us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
settings=(
# 1 = Power down NIC when not in use, 0 = Keep Link Powered
"AUTO_POWER_SAVE_LINK_DOWN_P1=1"
"AUTO_POWER_SAVE_LINK_DOWN_P2=1"
# 0 = ASPM Enabled, 1 = ASPM Disabled
"PCI_BUS0_RESTRICT_ASPM=0"
)
mlxconfig -d $CX_ADDRESS set "${settings[@]}"
Set Port Mode Infiniband or Ethernet¶
ConnectX-4 infiniband NICs can set each port individually to either Infiniband mode, or Ethernet mode.
For most cases, unless you have a Infiniband switch, running in IB mode, and the knowlege/setup for IB, you should be running in ethernet mode.
settings=(
# 1 = Infiniband, 2 = Ethernet
LINK_TYPE_P1=2
LINK_TYPE_P2=2
)
# Set the desired configurations.
mlxconfig -d $CX_ADDRESS set "${settings[@]}"
Persistent Ethtool Tuning (Hardware offload, Jumbo Frames, etc)¶
As ethtool changes are not directly persistent... We need to fix that.
Method 1. Put settings in /etc/network/interfaces¶
This method is simple, just add the correct settings to /etc/network/interfaces
/etc/network/interfaces
iface enp1s0 inet dhcp
# Ring Buffer Size
HARDWARE_DMA_RING_rx=8192
HARDWARE_DMA_RING_tx=8192
# Hardware Offload Features
OFFLOAD_rx=on
OFFLOAD_tx=on
OFFLOAD_tso=on
OFFLOAD_gso=on
OFFLOAD_tx_gso_partial=on
OFFLOAD_gro=on
OFFLOAD_lro=off
OFFLOAD_rxvlan=on
OFFLOAD_txvlan=on
OFFLOAD_rxhash=on
OFFLOAD_rx_vlan_filter=on
OFFLOAD_tx_gre_segmentation=on
OFFLOAD_tx_gre_csum_segmentation=on
OFFLOAD_tx_udp_tnl_segmentation=on
OFFLOAD_tx_udp_tnl_csum_segmentation=on
OFFLOAD_tx_udp_segmentation=on
OFFLOAD_rx_udp_tunnel_port_offload=on
OFFLOAD_macsec_hw_offload=off
# Disable Flow Control
IF_ETHERNET_PAUSE_rx=off
IF_ETHERNET_PAUSE_tx=off
# Enable Adaptive Coalescing
HARDWARE_IRQ_COALESCE_adaptive_rx=on
HARDWARE_IRQ_COALESCE_adaptive_tx=on
# Disable Wake on LAN
IF_ETHERNET_WOL=d
Method 2. Custom if-up script.¶
(This- is the method I went with. I feel, its easier to maintain.)
Copy and paste the below block into a terminal. It will automatically create the script.
CUSTOM_SCRIPT_NAME="ethtool-custom"
# Create empty file
touch /etc/network/if-up.d/$CUSTOM_SCRIPT_NAME
# Mark as executable
chmod +x /etc/network/if-up.d/$CUSTOM_SCRIPT_NAME
# Create script using text-editor.
# The rest of the lines will be automatially added.
nano /etc/network/if-up.d/$CUSTOM_SCRIPT_NAME
#!/bin/bash
IFACE="$1"
case "$IFACE" in
enp1s0f0np0|enp1s0f1np1)
# Increase ring buffer size
ethtool -G "$IFACE" rx 8192 tx 8192
# Enable hardware checksum
ethtool -K "$IFACE" rx on tx on
# TCP Segmentation Offload
ethtool -K "$IFACE" tso on
# Generic Segmentation Offload
ethtool -K "$IFACE" gso on tx-gso-partial on
# Generic Receive Offload
ethtool -K "$IFACE" gro on
# DISABLE large receive offload - Known to cause issues with certain applications
ethtool -K "$IFACE" lro off
# Enable Vlan Offload TX & TX
ethtool -K "$IFACE" rxvlan on txvlan on
# Enable receive hashing
ethtool -K "$IFACE" rxhash on
# Enable receive vlan filtering
ethtool -K "$IFACE" rx-vlan-filter on
# More segmentation-related features
ethtool -K "$IFACE" tx-gre-segmentation on tx-gre-csum-segmentation on tx-udp_tnl-segmentation on tx-udp_tnl-csum-segmentation on tx-udp-segmentation on
# No idea.
ethtool -K "$IFACE" rx-udp_tunnel-port-offload on
# Disable Macsec hardware offload - Adds additional overhead if we aren't using this.
ethtool -K "$IFACE" macsec-hw-offload off
# Disable Flow-Control
ethtool -A "$IFACE" rx off tx off
# Set Coalescing parameters to reduce Interrupts, adaptive if possible.
ethtool -C "$IFACE" adaptive-rx on adaptive-tx on
# Disable Wake on LAN.
ethtool -s "$IFACE" wol d
;;
#eth1)
# eth1- specific goes here.
# ;;
*)
echo "Did not match expected interface name. No actions taken"
echo "Interface Name: $IFACE"
;;
esac
exit 0
To test, execute the script and pass the first argument as the interface name
Kube01 Results
root@kube01:/etc/network/if-up.d# ./ethtool-custom enp1s0f0np0
Actual changes:
tx-checksum-ipv4: off [requested on]
tx-checksum-ipv6: off [requested on]
tx-checksum-fcoe-crc: off [requested on]
tx-checksum-sctp: off [requested on]
Actual changes:
tx-tcp-ecn-segmentation: off [requested on]
root@kube01:/etc/network/if-up.d# ./ethtool-custom enp1s0f1np1
Actual changes:
tx-checksum-ipv4: off [requested on]
tx-checksum-ipv6: off [requested on]
tx-checksum-fcoe-crc: off [requested on]
tx-checksum-sctp: off [requested on]
Actual changes:
tx-tcp-ecn-segmentation: off [requested on]
tx-tcp-mangleid-segmentation: on
Kube05 Results
root@kube05:~# /etc/network/if-up.d/$CUSTOM_SCRIPT_NAME enp1s0f0np0
Actual changes:
tx-checksum-ipv4: off [requested on]
tx-checksum-ipv6: off [requested on]
tx-checksum-fcoe-crc: off [requested on]
tx-checksum-sctp: off [requested on]
Actual changes:
tx-tcp-ecn-segmentation: off [requested on]
tx-tcp-mangleid-segmentation: on
root@kube05:~# /etc/network/if-up.d/$CUSTOM_SCRIPT_NAME enp1s0f1np1
Actual changes:
tx-checksum-ipv4: off [requested on]
tx-checksum-ipv6: off [requested on]
tx-checksum-fcoe-crc: off [requested on]
tx-checksum-sctp: off [requested on]
Actual changes:
tx-tcp-ecn-segmentation: off [requested on]
tx-tcp-mangleid-segmentation: on
root@kube05:~#
Other¶
Which NICs or Switches to buy?¶
If- you are looking to buy 10/25/40/100G NICs, please see This Post.
