Synology Multipath SMB, and iSCSI¶
So... normally when you want faster networking, you can just upgrade to faster NICs (10g, 25, 40, 50, 100g.. etc...).
However, in the case of my Synology DS423+, you get, two 1G ethernet ports with no expansion.
You would think the best course of action, would be to leverage LACP- however that is NOT the case.
Enabling Multichannel can double the amount of bandwidth per client, where as LACP, depending on hashing, only gives benefit up to the performance of one port.
This post details how to enable multipath for SMB, and how to configure iSCSI on linux with multiple paths.
WHY?¶
LACP isn't perfect. With LACP, a single client's connection is typically limited to the maximum throughput of a single NIC, regardless of how many NICs you have.
There are settings you can change and tweak with LACP to help mitigate this problem, HOWEVER, enable multipathing is far easier, and from my testing, is EXTREMELY effective at maximizing the amount of throughput.
Synology Network Configuration¶
If, you previously had a LACP/LAGG group configured, delete it.

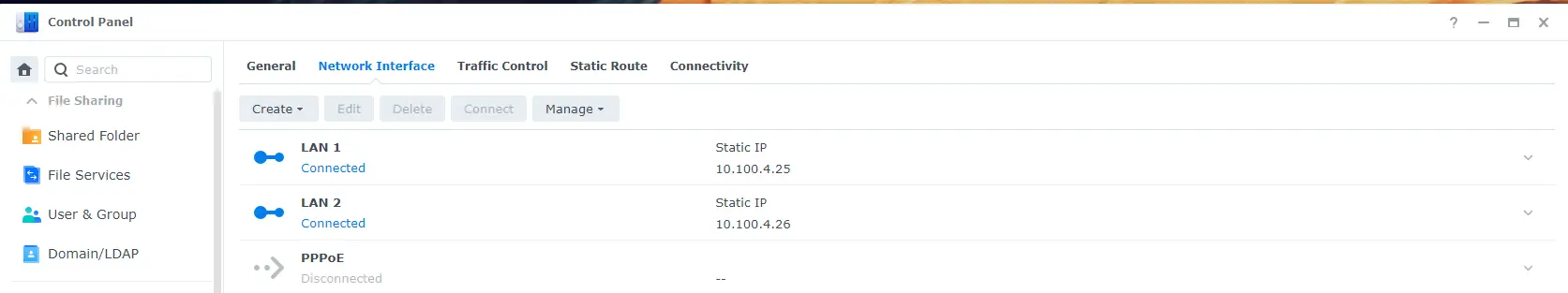

Give each interface its own IP address.
Once you have done this, the steps are down below for individual protocols.
SMB / CIFS¶
Synology Configuration¶
Enabling SMB multi-channel on the Synology, is... pretty effortless.

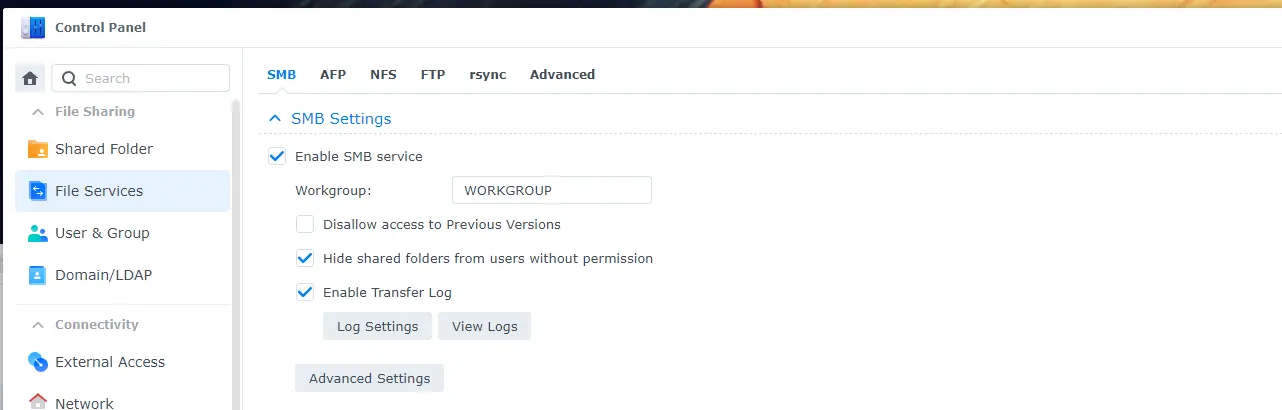

Navigate to Control Panel -> File Sharing -> File Services -> SMB
Click on "Advanced Settings"

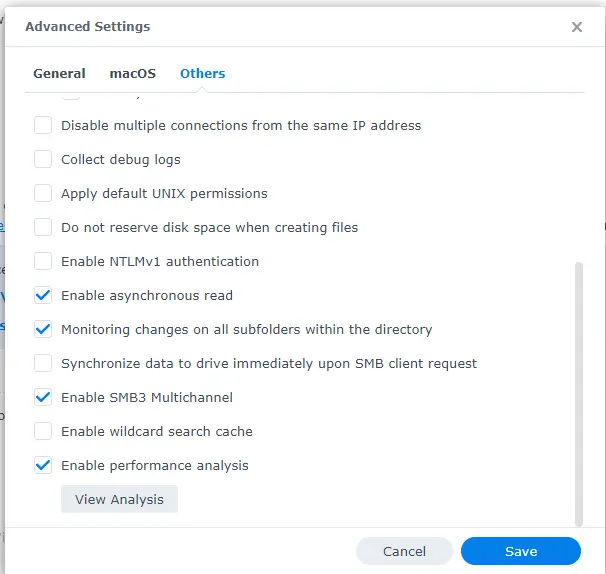

Goto the "Others" tab.
Enable SMB3 Multichannel
Thats it. Your done.
Testing from Windows¶
From my windows test-PC, ZERO configuration was needed to take advantage.
Without changing anything- just copying a file was now running close to 200MB/s
The MAXIMUM transfer speed for a single 1G NIC, is around 120MB/s, and realistically, you will hit 110MB/s if everything is perfect.
For this test, I didn't tune anything. I enabled multichannel, and ran benchmarks. There is no jumbo frames, no tuning, etc... as well, my 4-disk array has encryption enabled... which takes a pretty heavy toll on its tiny processor.
Results? Success¶
With only selecting a single checkbox, I was able to basically double the performance of SMB shares.
iSCSI¶
Synology Configuration¶
iSCSI, is a bit more involved then a single checkbox.
- Goto the "SAN Manager" application
- Goto the "iSCSI" tab.

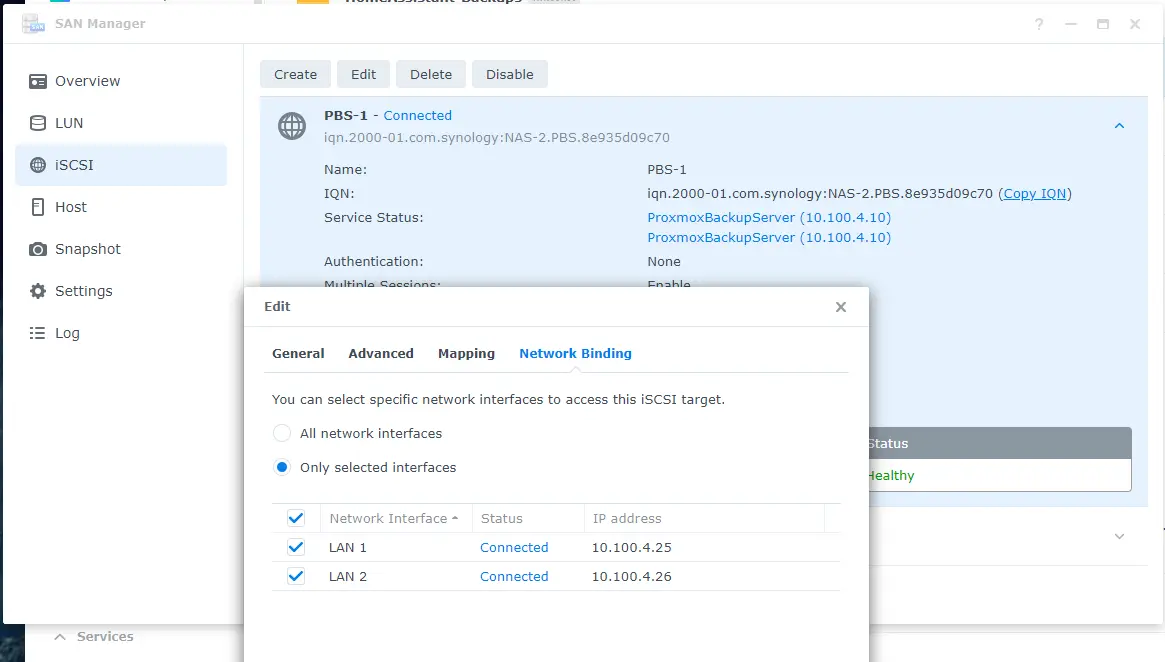

- Edit your portal, and ensure both network interfaces are selected.

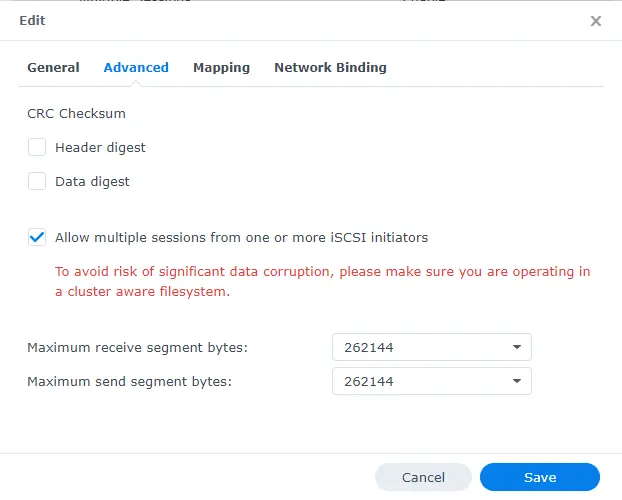

- Under advanced tab, you need to Allow Multiple Sessions.
Linux Configuration¶
Info
If you already had iSCSI running, you will need to remove the lines from /etc/fstab, unmount it, and log out of the portal before following these steps.
Installing packages¶
First- we need to install a few things.
apt-get install multipath-tools open-iscsi
- open-iscsi - This allows us to connect to an iscsi target.
- multipath-tools - This manages the multipathing.
After these packages are install, lets enable the units.
systemctl enable iscsid
This, will allow them to start at boot.
root@network-test:~# systemctl enable iscsid
Synchronizing state of iscsid.service with SysV service script with /lib/systemd/systemd-sysv-install.
Executing: /lib/systemd/systemd-sysv-install enable iscsid
Created symlink /etc/systemd/system/sysinit.target.wants/iscsid.service → /lib/systemd/system/iscsid.service.
root@network-test:~# systemctl enable multipath-tools
Synchronizing state of multipath-tools.service with SysV service script with /lib/systemd/systemd-sysv-install.
Executing: /lib/systemd/systemd-sysv-install enable multipath-tools
Failed to enable unit: Refusing to operate on alias name or linked unit file: multipath-tools.service
Make sure both are running.
root@network-test:~# systemctl status multipath-tools
● multipathd.service - Device-Mapper Multipath Device Controller
Loaded: loaded (/lib/systemd/system/multipathd.service; enabled; preset: enabled)
Active: active (running) since Tue 2024-07-23 01:54:37 UTC; 2min 3s ago
TriggeredBy: ○ multipathd.socket
Main PID: 2048 (multipathd)
Status: "up"
Tasks: 7
Memory: 19.4M
CPU: 89ms
CGroup: /system.slice/multipathd.service
└─2048 /sbin/multipathd -d -s
Jul 23 01:54:37 network-test systemd[1]: Starting multipathd.service - Device-Mapper Multipath Device Controller...
Jul 23 01:54:37 network-test multipathd[2048]: multipathd v0.9.4: start up
Jul 23 01:54:37 network-test multipathd[2048]: reconfigure: setting up paths and maps
Jul 23 01:54:37 network-test systemd[1]: Started multipathd.service - Device-Mapper Multipath Device Controller.
root@network-test:~# systemctl status iscsid
○ iscsid.service - iSCSI initiator daemon (iscsid)
Loaded: loaded (/lib/systemd/system/iscsid.service; enabled; preset: enabled)
Active: inactive (dead)
TriggeredBy: ● iscsid.socket
Docs: man:iscsid(8)
root@network-test:~#
Configure iSCSId to start at boot¶
Info
If- you forget this step, your mounts will not be automatically mounted after a reboot!
To automatically start iSCSI at boot, we need to edit /etc/iscsi/iscsid.conf
and change node.startup = manual to node.startup = automatic
Here- is a single command to update the file for you.
sudo sed -i 's/^#*\s*node.startup\s*=\s*manual/node.startup = automatic/' /etc/iscsi/iscsid.conf
Connecting to iSCSI¶
Next- lets discover the LUNs available to us.
Run iscsiadm -m discovery -t st -p YOUR_IP_HERE against each of the IPs on your Synology.
root@network-test:~# iscsiadm -m discovery -t st -p 10.100.4.25
10.100.4.25:3260,1 iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70
10.100.4.26:3260,1 iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70
root@network-test:~# iscsiadm -m discovery -t st -p 10.100.4.26
10.100.4.25:3260,1 iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70
10.100.4.26:3260,1 iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70
Next, lets log into both targets using iscsiadm -m node -T YOUR WWN HERE -p YOUR_IP_HERE --login
The WWN, is the piece which looks like this: iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70
root@network-test:~# iscsiadm -m node -T iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 -p 10.100.4.25 --login
Logging in to [iface: default, target: iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70, portal: 10.100.4.25,3260]
Login to [iface: default, target: iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70, portal: 10.100.4.25,3260] successful.
root@network-test:~# iscsiadm -m node -T iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 -p 10.100.4.26 --login
Logging in to [iface: default, target: iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70, portal: 10.100.4.26,3260]
Login to [iface: default, target: iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70, portal: 10.100.4.26,3260] successful.
The commands for each of the interface addresses should return successful.
IF, you run into this error, its because you didn't enable the "Allow multiple sessions" checkbox on your portal. Go back to the synology and check it.
iscsiadm: Could not login to [iface: default, target: iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70, portal: 10.100.4.26,3260].
iscsiadm: initiator reported error (19 - encountered non-retryable iSCSI login failure)
iscsiadm: Could not log into all portals
Finally, flag the connections to autostart.
root@network-test:~# iscsiadm -m node -T iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 -p 10.100.4.25 --op=update -n node.startup -v automatic
root@network-test:~# iscsiadm -m node -T iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 -p 10.100.4.26 --op=update -n node.startup -v automatic
Here are all of the commands used in this section:
# Discover targets.
iscsiadm -m discovery -t st -p 10.100.4.25
# Connect to both targets.
iscsiadm -m node -T iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 -p 10.100.4.25 --login
iscsiadm -m node -T iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 -p 10.100.4.26 --login
# Set targets to automatically start.
iscsiadm -m node -T iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 -p 10.100.4.25 --op=update -n node.startup -v automatic
iscsiadm -m node -T iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 -p 10.100.4.26 --op=update -n node.startup -v automatic
Configuring Multipath¶
At this point, if you run lsblk, you will notice there are TWO devices showing for this LUN.
root@network-test:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 20G 0 disk <-- One here
sdb 8:16 0 20G 0 disk <-- One here too!
sr0 11:0 1 4M 0 rom
vda 254:0 0 16G 0 disk
├─vda1 254:1 0 15.9G 0 part /
├─vda14 254:14 0 3M 0 part
└─vda15 254:15 0 124M 0 part /boot/efi
If, you attempt to use both, there is a good chance you can corrupt the LUN. Instead, we need to configure multipath now.
Lets go ahead and get the WWNs for our lun with this command: udevadm info --query=all --name=/dev/sda | grep 'ID_WWN'
The WWN SHOULD be the same for both. The ID_WWN is what we are interested in.
root@network-test:~# udevadm info --query=all --name=/dev/sda | grep 'ID_WWN'
E: ID_WWN_WITH_EXTENSION=0x600140551aa592fd025ed4ef1da523db
E: ID_WWN=0x600140551aa592fd
root@network-test:~# udevadm info --query=all --name=/dev/sdb | grep 'ID_WWN'
E: ID_WWN_WITH_EXTENSION=0x600140551aa592fd025ed4ef1da523db
E: ID_WWN=0x600140551aa592fd
Lets make a new multipath configuration file.
nano /etc/multpath.conf
Make sure to update the wwid, to YOUR WWN.
Info
If you forget, or neglect to correctly set the multipaths, you will be limited to the speed of a single connection.
defaults {
user_friendly_names yes
find_multipaths yes
}
blacklist {
devnode "^vda"
}
multipaths {
multipath {
wwid "3600140551aa592fd025ed4ef1da523db"
alias mpath0
}
}
After creating the above file, we need to restart multipath, using systemctl restart multipath-tools
After this is done, you can now see the multiple paths, using multipath -ll, and lsblk will show the new device.
root@network-test:~# systemctl restart multipath-tools
root@network-test:~# multipath -ll
mpatha (3600140551aa592fd025ed4ef1da523db) dm-0 SYNOLOGY,Storage
size=20G features='0' hwhandler='1 alua' wp=rw
|-+- policy='service-time 0' prio=50 status=active
| `- 2:0:0:1 sda 8:0 active ready running
`-+- policy='service-time 0' prio=50 status=enabled
`- 3:0:0:1 sdb 8:16 active ready running
root@network-test:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 20G 0 disk
└─mpatha 253:0 0 20G 0 mpath
sdb 8:16 0 20G 0 disk
└─mpatha 253:0 0 20G 0 mpath
sr0 11:0 1 4M 0 rom
vda 254:0 0 16G 0 disk
├─vda1 254:1 0 15.9G 0 part /
├─vda14 254:14 0 3M 0 part
└─vda15 254:15 0 124M 0 part /boot/efi
root@network-test:~#
Formatting new mount.¶
(If- you are trying to enable multipath on an existing LUN, you should prob skip this step....)
Format the new mount using mkfs.ext4 /dev/mapper/mpatha
root@network-test:~# mkfs.ext4 /dev/mapper/mpatha
mke2fs 1.47.0 (5-Feb-2023)
Discarding device blocks: done
Creating filesystem with 5242880 4k blocks and 1310720 inodes
Filesystem UUID: 199858b0-e453-4e00-8905-d9bcbe892da9
Superblock backups stored on blocks:
32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
4096000
Allocating group tables: done
Writing inode tables: done
Creating journal (32768 blocks): done
Writing superblocks and filesystem accounting information: done
For this guide, we will be mounting this drive at /mnt/multipath. Go ahead and create an empty directory there.
mkdir /mnt/multipath
Mount at boot¶
To automatically mount this new partition, we will edit /etc/fstab, and add /dev/mapper/mpatha /mnt/multipath ext4 _netdev 0 2
root@network-test:~# echo "/dev/mapper/mpatha /mnt/multipath ext4 _netdev 0 2" | sudo tee -a /etc/fstab
/dev/mapper/mpatha /mnt/multipath ext4 _netdev 0 2
root@network-test:~# cat /etc/fstab
PARTUUID=83c1818a-868c-4c97-832b-8195e4257804 / ext4 rw,discard,errors=remount-ro,x-systemd.growfs 0 1
PARTUUID=d6f6a0fe-5811-483b-a7a5-a6bf5b6372e5 /boot/efi vfat defaults 0 0
/dev/mapper/mpatha /mnt/multipath ext4 _netdev 0 2
After updating this file, run systemctl daemon-reload
Next, lets mount everything in /etc/fstab, using mount -a. After mounting, you should see the new LUN/Partition is now mounted.
root@network-test:~# mount -a
root@network-test:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 20G 0 disk
└─mpatha 253:0 0 20G 0 mpath /mnt/multipath
sdb 8:16 0 20G 0 disk
└─mpatha 253:0 0 20G 0 mpath /mnt/multipath
sr0 11:0 1 4M 0 rom
vda 254:0 0 16G 0 disk
├─vda1 254:1 0 15.9G 0 part /
├─vda14 254:14 0 3M 0 part
└─vda15 254:15 0 124M 0 part /boot/efi
Thats, mostly it. I would recommend a reboot at this point, just to ensure it automatically remounts as expected.
root@network-test:~# reboot
If, after a reboot, lsblk does not show the partitions, please address the issue. The "Configure iSCSId to start at boot" section above configures this.
You can use iscsiadm -m session -o show to determine if you have active sessions.
If- after your reboot- everything looks like this, you are good to go!
Last login: Tue Jul 23 02:30:50 2024 from 10.100.64.2
root@network-test:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 20G 0 disk
└─mpatha 253:0 0 20G 0 mpath /mnt/multipath
sdb 8:16 0 20G 0 disk
└─mpatha 253:0 0 20G 0 mpath /mnt/multipath
sr0 11:0 1 4M 0 rom
vda 254:0 0 16G 0 disk
├─vda1 254:1 0 15.9G 0 part /
├─vda14 254:14 0 3M 0 part
└─vda15 254:15 0 124M 0 part /boot/efi
root@network-test:~# iscsiadm -m session -o show
tcp: [1] 10.100.4.25:3260,1 iqn.2000-01.com.synology:NAS-2.PBS.8e935d09c70 (non-flash)
tcp: [2] 10.100.4.26:3260,1 iqn.2000-01.com.synology:NAS-2.PBS.8e935d09c70 (non-flash)
tcp: [3] 10.100.4.26:3260,1 iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 (non-flash)
tcp: [4] 10.100.4.25:3260,1 iqn.2000-01.com.synology:NAS-2.TestTarget.8e935d09c70 (non-flash)
root@network-test:~# multipath -ll
mpatha (3600140551aa592fd025ed4ef1da523db) dm-0 SYNOLOGY,Storage
size=20G features='0' hwhandler='1 alua' wp=rw
|-+- policy='service-time 0' prio=50 status=active
| `- 4:0:0:1 sda 8:0 active ready running
`-+- policy='service-time 0' prio=50 status=enabled
`- 5:0:0:1 sdb 8:16 active ready running
root@network-test:~#
Performance Testing¶
A quick performance test with fio
Command Used: fio --name=seq_read_test --directory=/mnt/multipath --rw=read --bs=1M --size=1G --numjobs=1 --time_based --runtime=60 --group_reporting --ioengine=libaio --direct=1
root@network-test:~# apt-get install fio
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
fio is already the newest version (3.33-3).
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
root@network-test:~# fio --name=seq_read_test --directory=/mnt/multipath --rw=read --bs=1M --size=1G --numjobs=1 --time_based --runtime=60 --group_reporting --ioengine=libaio --direct=1
seq_read_test: (g=0): rw=read, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=libaio, iodepth=1
fio-3.33
Starting 1 process
seq_read_test: Laying out IO file (1 file / 1024MiB)
Jobs: 1 (f=0): [f(1)][100.0%][r=101MiB/s][r=101 IOPS][eta 00m:00s]
seq_read_test: (groupid=0, jobs=1): err= 0: pid=610: Tue Jul 23 02:40:09 2024
read: IOPS=101, BW=102MiB/s (107MB/s)(6114MiB/60007msec)
slat (usec): min=34, max=467, avg=67.39, stdev=30.11
clat (usec): min=9459, max=13308, avg=9742.25, stdev=184.59
lat (usec): min=9516, max=13358, avg=9809.64, stdev=201.90
clat percentiles (usec):
| 1.00th=[ 9503], 5.00th=[ 9634], 10.00th=[ 9634], 20.00th=[ 9634],
| 30.00th=[ 9634], 40.00th=[ 9634], 50.00th=[ 9765], 60.00th=[ 9765],
| 70.00th=[ 9765], 80.00th=[ 9765], 90.00th=[ 9896], 95.00th=[10028],
| 99.00th=[10421], 99.50th=[10683], 99.90th=[11731], 99.95th=[12256],
| 99.99th=[13304]
bw ( KiB/s): min=100352, max=106709, per=100.00%, avg=104412.78, stdev=1260.34, samples=119
iops : min= 98, max= 104, avg=101.92, stdev= 1.23, samples=119
lat (msec) : 10=94.29%, 20=5.71%
cpu : usr=0.14%, sys=0.87%, ctx=6141, majf=0, minf=266
IO depths : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued rwts: total=6114,0,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=1
Run status group 0 (all jobs):
READ: bw=102MiB/s (107MB/s), 102MiB/s-102MiB/s (107MB/s-107MB/s), io=6114MiB (6411MB), run=60007-60007msec
Disk stats (read/write):
dm-0: ios=6090/4, merge=0/1, ticks=59297/16, in_queue=59322, util=98.96%, aggrios=3057/2, aggrmerge=0/0, aggrticks=29731/3, aggrin_queue=29734, aggrutil=98.60%
sdb: ios=0/0, merge=0/0, ticks=0/0, in_queue=0, util=0.00%
sda: ios=6115/4, merge=0/0, ticks=59462/7, in_queue=59468, util=98.60%
102MiB/s, that is only a single connection! If your results resemble this, you did not correctly configure /etc/multipath.conf
In my case, it was because I forgot to add the multipaths section to /etc/multipath.conf.
The benefit of reading my post- I have already went back up and added all of the wonderful steps that were missing before you got a chance to read it!
AFTER fixing /etc/multipath.conf, a VERY respectable 240MB/s. This is perfectly saturating both gigabit ports.
root@network-test:~# fio --name=seq_read_test --directory=/mnt/multipath --rw=read --bs=1M --size=1G --numjobs=1 --time_based --runtime=60 --group_reporting --ioengine=libaio --direct=1
seq_read_test: (g=0): rw=read, bs=(R) 1024KiB-1024KiB, (W) 1024KiB-1024KiB, (T) 1024KiB-1024KiB, ioengine=libaio, iodepth=1
fio-3.33
Starting 1 process
seq_read_test: Laying out IO file (1 file / 1024MiB)
Jobs: 1 (f=1): [R(1)][100.0%][r=266MiB/s][r=266 IOPS][eta 00m:00s]
seq_read_test: (groupid=0, jobs=1): err= 0: pid=577: Tue Jul 23 02:50:39 2024
read: IOPS=228, BW=229MiB/s (240MB/s)(13.4GiB/60003msec)
slat (usec): min=25, max=1448, avg=66.48, stdev=47.39
clat (usec): min=2458, max=50851, avg=4302.45, stdev=2230.52
lat (usec): min=2485, max=50990, avg=4368.93, stdev=2245.90
clat percentiles (usec):
| 1.00th=[ 2802], 5.00th=[ 2999], 10.00th=[ 3097], 20.00th=[ 3261],
| 30.00th=[ 3392], 40.00th=[ 3556], 50.00th=[ 3720], 60.00th=[ 3982],
| 70.00th=[ 4490], 80.00th=[ 5080], 90.00th=[ 5800], 95.00th=[ 6521],
| 99.00th=[ 9765], 99.50th=[19530], 99.90th=[34341], 99.95th=[43254],
| 99.99th=[50070]
bw ( KiB/s): min=141312, max=292864, per=100.00%, avg=234281.77, stdev=35620.16, samples=120
iops : min= 138, max= 286, avg=228.59, stdev=34.78, samples=120
lat (msec) : 4=60.57%, 10=38.46%, 20=0.49%, 50=0.47%, 100=0.01%
cpu : usr=0.52%, sys=2.22%, ctx=13754, majf=0, minf=267
IO depths : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued rwts: total=13717,0,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=1
Run status group 0 (all jobs):
READ: bw=229MiB/s (240MB/s), 229MiB/s-229MiB/s (240MB/s-240MB/s), io=13.4GiB (14.4GB), run=60003-60003msec
Disk stats (read/write):
vda: ios=13803/146, merge=0/40, ticks=59027/59, in_queue=59124, util=97.39%
root@network-test:~#
| Metric | Value |
|---|---|
| Read IOPS | 228 |
| Read Bandwidth | 229 MiB/s (240 MB/s) |
| Total Read | 13.4 GiB (14.4 GB) |
| Test Duration | 60003 ms |
| Bandwidth (min) | 141312 KiB/s |
| Bandwidth (max) | 292864 KiB/s |
| Bandwidth (avg) | 234281.77 KiB/s |
| Bandwidth (stdev) | 35620.16 KiB/s |
| CPU Usage (user) | 0.52% |
| CPU Usage (sys) | 2.22% |
| Context Switches | 13754 |
| IO Depth | 1 |
| Disk Utilization | 97.39% |
