Rant: Unifi Layer 3 Switches¶
I have a love-hate relationship with Unifi.
One of the things I absolutely hate about Unifi, is their "Layer 3" switches.
IMO, its a marketing gimmick, and an absolute joke.
Info
This post was originally written in July of 2024.
I did not get around to finishing and publishing until December 2024.
Some of my below issues have been resolved. I have left the original text, and included notes such as this where applicable.
Why you should avoid Unifi "Layer 3" Switches¶
Reason Number 1. Layer 3 Routing does not work.¶
So- the main reason you typically buy a layer 3 route, is for the ability to route traffic, right?
Well, lets go through the process of adding a static route to a unifi layer 3 switch.
Info
You CAN manually add routes via the CLI. However, these will be lost whenever the switch provisions or reboots.
The switches hardware is perfectly capable, and suitable for layer 3 routing.... WHEN you don't use the Unifi software.
First, create your route through the Unifi's Static routes page. Make sure to click DeviceType: Switch, and select your Layer 3 switch.
Afterwards, wait a second for your device to provision.
At this point, you would expect the layer 3 route to exist on your switch. But- it doesn't.
CoreSwitch-US.7.0.50# ip route | grep -v .100
default via 10.255.253.1 dev rt_v4040 proto icos metric 16
10.255.253.0/24 dev rt_v4040 proto kernel scope link src 10.255.253.2
But- perhaps the issue is, the management's routes differ from the routes in the config.
Nope. The routes don't exist there either.
CoreSwitch-US.7.0.50# cli
Warning!
The changes may break controller settings and only be effective until reboot.
Entering character mode
Escape character is '^]'.
(UBNT) >enable
(UBNT) #show ip route
Route Codes: C - Connected, S - Static
Default Gateway(s): 10.255.253.1
S 0.0.0.0/0 [1/0] via 10.255.253.1, 4/1
...
C 10.255.253.0/24 [0/0] directly connected, 4/1
( I removed the routes for the subnets which are hosted by this switch. Those, work fine.)
So, lets check the configuration.
(UBNT) #show running-config
...
no errdisable recovery cause keepalive
ip route 0.0.0.0 0.0.0.0 10.255.253.1 description Inter-VLAN routing
exit
Ok, so, the only route that exists, is the default "inter-vlan" routing route.
Summary?
This feature does not work as expected.
Reason #2, Non-Configurable default "VLAN 4040" / Default Route.¶
Unifi "layer 3" switches, are shipped with a default route, of 0.0.0.0/0 via 10.255.253.1 on vlan 4040.
You can read about this feature via Unifi's Official Documentation
The short version, If you want to use a Unifi "layer 3" switch behind your existing firewall, you MUST configure your existing firewall, with an interface on vlan 4040, with an ip address of 10.255.253.1
And no, per Unifi, you cannot change the VLAN ID.
Even if you have a Unifi UDM/UXG/Other Gateway- this default route, and vlan will always exist, on every Unifi Layer 3 switch you have.
(UBNT) >enable
(UBNT) #show ip route
Route Codes: C - Connected, S - Static
Default Gateway(s): 10.255.253.1
S 0.0.0.0/0 [1/0] via 10.255.253.1, 4/1
Although, interesting, when your gateway does come online, the Linux kernel, will add a default route via your gateway, with a slightly higher priority.
CoreSwitch-US.7.0.50# ip route
default via 10.100.1.1 dev eth0
default via 10.255.253.1 dev rt_v4040 proto icos metric 16
Reason #3, There MAY be a limitation of "TWO" static routes¶
Info
This limitation exists for the "PRO" switches.
However, it does not appear to exist for the "ENTERPRISE" switches.

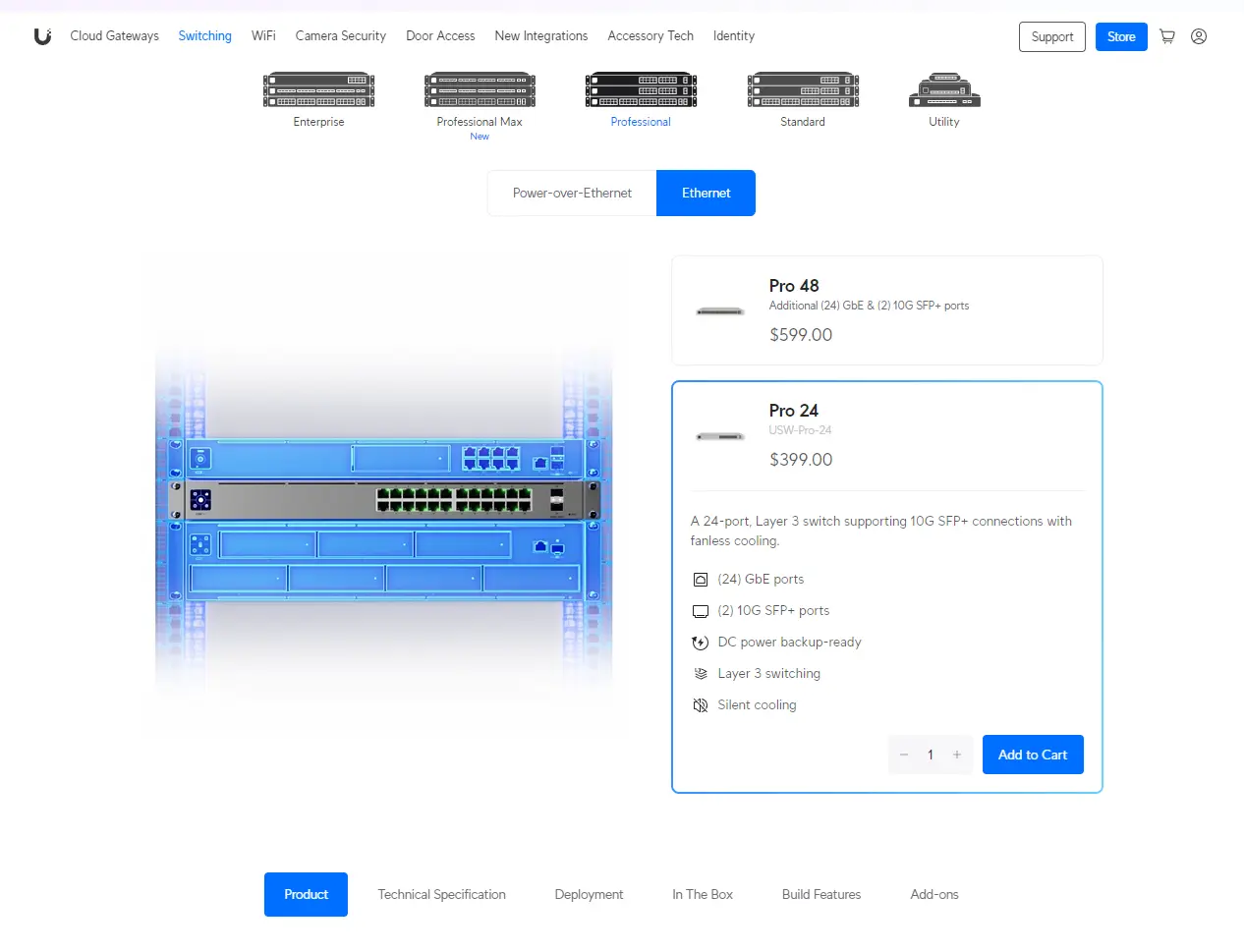

Imagine picking up a 400$ layer 3 unifi switch, and being excited to get all of your routes for your network configured.... and then....

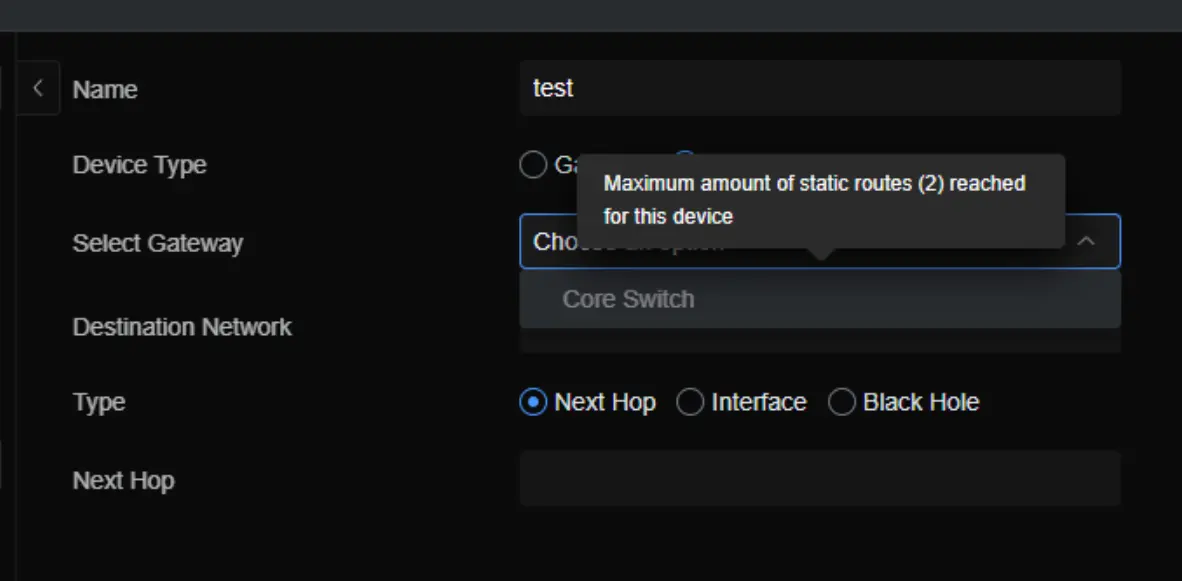

You discover, there is a limitation of TWO static routes. Rights right, Two.
You better make those routes count. Because you only get TWO of them.
I don't know why there is only two allowed- I tested the hardware to see how many it would accept.
ip route 192.168.0.0 255.255.255.0 Null0 100 description "Dummy Route 0"
ip route 192.168.1.0 255.255.255.0 Null0 100 description "Dummy Route 1"
ip route 192.168.2.0 255.255.255.0 Null0 100 description "Dummy Route 2"
ip route 192.168.3.0 255.255.255.0 Null0 100 description "Dummy Route 3"
ip route 192.168.4.0 255.255.255.0 Null0 100 description "Dummy Route 4"
ip route 192.168.5.0 255.255.255.0 Null0 100 description "Dummy Route 5"
ip route 192.168.6.0 255.255.255.0 Null0 100 description "Dummy Route 6"
ip route 192.168.7.0 255.255.255.0 Null0 100 description "Dummy Route 7"
ip route 192.168.8.0 255.255.255.0 Null0 100 description "Dummy Route 8"
ip route 192.168.9.0 255.255.255.0 Null0 100 description "Dummy Route 9"
ip route 192.168.10.0 255.255.255.0 Null0 100 description "Dummy Route 10"
ip route 192.168.11.0 255.255.255.0 Null0 100 description "Dummy Route 11"
ip route 192.168.12.0 255.255.255.0 Null0 100 description "Dummy Route 12"
ip route 192.168.13.0 255.255.255.0 Null0 100 description "Dummy Route 13"
ip route 192.168.14.0 255.255.255.0 Null0 100 description "Dummy Route 14"
ip route 192.168.15.0 255.255.255.0 Null0 100 description "Dummy Route 15"
ip route 192.168.16.0 255.255.255.0 Null0 100 description "Dummy Route 16"
ip route 192.168.17.0 255.255.255.0 Null0 100 description "Dummy Route 17"
ip route 192.168.18.0 255.255.255.0 Null0 100 description "Dummy Route 18"
ip route 192.168.19.0 255.255.255.0 Null0 100 description "Dummy Route 19"
ip route 192.168.20.0 255.255.255.0 Null0 100 description "Dummy Route 20"
ip route 192.168.21.0 255.255.255.0 Null0 100 description "Dummy Route 21"
ip route 192.168.22.0 255.255.255.0 Null0 100 description "Dummy Route 22"
ip route 192.168.23.0 255.255.255.0 Null0 100 description "Dummy Route 23"
ip route 192.168.24.0 255.255.255.0 Null0 100 description "Dummy Route 24"
ip route 192.168.25.0 255.255.255.0 Null0 100 description "Dummy Route 25"
ip route 192.168.26.0 255.255.255.0 Null0 100 description "Dummy Route 26"
ip route 192.168.27.0 255.255.255.0 Null0 100 description "Dummy Route 27"
ip route 192.168.28.0 255.255.255.0 Null0 100 description "Dummy Route 28"
ip route 192.168.29.0 255.255.255.0 Null0 100 description "Dummy Route 29"
ip route 192.168.30.0 255.255.255.0 Null0 100 description "Dummy Route 30"
ip route 192.168.31.0 255.255.255.0 Null0 100 description "Dummy Route 31"
ip route 192.168.32.0 255.255.255.0 Null0 100 description "Dummy Route 32"
ip route 192.168.33.0 255.255.255.0 Null0 100 description "Dummy Route 33"
ip route 192.168.34.0 255.255.255.0 Null0 100 description "Dummy Route 34"
ip route 192.168.35.0 255.255.255.0 Null0 100 description "Dummy Route 35"
ip route 192.168.36.0 255.255.255.0 Null0 100 description "Dummy Route 36"
ip route 192.168.37.0 255.255.255.0 Null0 100 description "Dummy Route 37"
ip route 192.168.38.0 255.255.255.0 Null0 100 description "Dummy Route 38"
ip route 192.168.39.0 255.255.255.0 Null0 100 description "Dummy Route 39"
ip route 192.168.40.0 255.255.255.0 Null0 100 description "Dummy Route 40"
ip route 192.168.41.0 255.255.255.0 Null0 100 description "Dummy Route 41"
ip route 192.168.42.0 255.255.255.0 Null0 100 description "Dummy Route 42"
ip route 192.168.43.0 255.255.255.0 Null0 100 description "Dummy Route 43"
ip route 192.168.44.0 255.255.255.0 Null0 100 description "Dummy Route 44"
ip route 192.168.45.0 255.255.255.0 Null0 100 description "Dummy Route 45"
ip route 192.168.46.0 255.255.255.0 Null0 100 description "Dummy Route 46"
ip route 192.168.47.0 255.255.255.0 Null0 100 description "Dummy Route 47"
ip route 192.168.48.0 255.255.255.0 Null0 100 description "Dummy Route 48"
ip route 192.168.49.0 255.255.255.0 Null0 100 description "Dummy Route 49"
ip route 192.168.50.0 255.255.255.0 Null0 100 description "Dummy Route 50"
ip route 192.168.51.0 255.255.255.0 Null0 100 description "Dummy Route 51"
ip route 192.168.52.0 255.255.255.0 Null0 100 description "Dummy Route 52"
ip route 192.168.53.0 255.255.255.0 Null0 100 description "Dummy Route 53"
ip route 192.168.54.0 255.255.255.0 Null0 100 description "Dummy Route 54"
ip route 192.168.55.0 255.255.255.0 Null0 100 description "Dummy Route 55"
ip route 192.168.56.0 255.255.255.0 Null0 100 description "Dummy Route 56"
ip route 192.168.57.0 255.255.255.0 Null0 100 description "Dummy Route 57"
ip route 192.168.58.0 255.255.255.0 Null0 100 description "Dummy Route 58"
ip route 192.168.59.0 255.255.255.0 Null0 100 description "Dummy Route 59"
ip route 192.168.60.0 255.255.255.0 Null0 100 description "Dummy Route 60"
ip route 192.168.61.0 255.255.255.0 Null0 100 description "Dummy Route 61"
ip route 192.168.62.0 255.255.255.0 Null0 100 description "Dummy Route 62"
ip route 192.168.63.0 255.255.255.0 Null0 100 description "Dummy Route 63"
ip route 192.168.64.0 255.255.255.0 Null0 100 description "Dummy Route 64"
ip route 192.168.65.0 255.255.255.0 Null0 100 description "Dummy Route 65"
ip route 192.168.66.0 255.255.255.0 Null0 100 description "Dummy Route 66"
ip route 192.168.67.0 255.255.255.0 Null0 100 description "Dummy Route 67"
ip route 192.168.68.0 255.255.255.0 Null0 100 description "Dummy Route 68"
ip route 192.168.69.0 255.255.255.0 Null0 100 description "Dummy Route 69"
ip route 192.168.70.0 255.255.255.0 Null0 100 description "Dummy Route 70"
ip route 192.168.71.0 255.255.255.0 Null0 100 description "Dummy Route 71"
ip route 192.168.72.0 255.255.255.0 Null0 100 description "Dummy Route 72"
ip route 192.168.73.0 255.255.255.0 Null0 100 description "Dummy Route 73"
ip route 192.168.74.0 255.255.255.0 Null0 100 description "Dummy Route 74"
ip route 192.168.75.0 255.255.255.0 Null0 100 description "Dummy Route 75"
ip route 192.168.76.0 255.255.255.0 Null0 100 description "Dummy Route 76"
ip route 192.168.77.0 255.255.255.0 Null0 100 description "Dummy Route 77"
ip route 192.168.78.0 255.255.255.0 Null0 100 description "Dummy Route 78"
ip route 192.168.79.0 255.255.255.0 Null0 100 description "Dummy Route 79"
ip route 192.168.80.0 255.255.255.0 Null0 100 description "Dummy Route 80"
ip route 192.168.81.0 255.255.255.0 Null0 100 description "Dummy Route 81"
ip route 192.168.82.0 255.255.255.0 Null0 100 description "Dummy Route 82"
ip route 192.168.83.0 255.255.255.0 Null0 100 description "Dummy Route 83"
ip route 192.168.84.0 255.255.255.0 Null0 100 description "Dummy Route 84"
ip route 192.168.85.0 255.255.255.0 Null0 100 description "Dummy Route 85"
ip route 192.168.86.0 255.255.255.0 Null0 100 description "Dummy Route 86"
ip route 192.168.87.0 255.255.255.0 Null0 100 description "Dummy Route 87"
ip route 192.168.88.0 255.255.255.0 Null0 100 description "Dummy Route 88"
ip route 192.168.89.0 255.255.255.0 Null0 100 description "Dummy Route 89"
ip route 192.168.90.0 255.255.255.0 Null0 100 description "Dummy Route 90"
ip route 192.168.91.0 255.255.255.0 Null0 100 description "Dummy Route 91"
ip route 192.168.92.0 255.255.255.0 Null0 100 description "Dummy Route 92"
ip route 192.168.93.0 255.255.255.0 Null0 100 description "Dummy Route 93"
ip route 192.168.94.0 255.255.255.0 Null0 100 description "Dummy Route 94"
ip route 192.168.95.0 255.255.255.0 Null0 100 description "Dummy Route 95"
ip route 192.168.96.0 255.255.255.0 Null0 100 description "Dummy Route 96"
ip route 192.168.97.0 255.255.255.0 Null0 100 description "Dummy Route 97"
ip route 192.168.98.0 255.255.255.0 Null0 100 description "Dummy Route 98"
ip route 192.168.99.0 255.255.255.0 Null0 100 description "Dummy Route 99"
And, it appears it will accept around 60 routes total, before the hardware throws errors.
Route Codes: C - Connected, S - Static
Default Gateway(s): 10.255.253.1
S 0.0.0.0/0 [1/0] via 10.255.253.1, 4/1
(Four routes were excluded from here)
C 10.255.253.0/24 [0/0] directly connected, 4/1
S 192.168.0.0/24 [100/0] directly connected, Null0 Discard
S 192.168.1.0/24 [100/0] directly connected, Null0 Discard
S 192.168.2.0/24 [100/0] directly connected, Null0 Discard
S 192.168.3.0/24 [100/0] directly connected, Null0 Discard
S 192.168.4.0/24 [100/0] directly connected, Null0 Discard
S 192.168.5.0/24 [100/0] directly connected, Null0 Discard
S 192.168.6.0/24 [100/0] directly connected, Null0 Discard
S 192.168.7.0/24 [100/0] directly connected, Null0 Discard
S 192.168.8.0/24 [100/0] directly connected, Null0 Discard
S 192.168.9.0/24 [100/0] directly connected, Null0 Discard
S 192.168.10.0/24 [100/0] directly connected, Null0 Discard
S 192.168.11.0/24 [100/0] directly connected, Null0 Discard
S 192.168.12.0/24 [100/0] directly connected, Null0 Discard
S 192.168.13.0/24 [100/0] directly connected, Null0 Discard
S 192.168.14.0/24 [100/0] directly connected, Null0 Discard
S 192.168.15.0/24 [100/0] directly connected, Null0 Discard
S 192.168.16.0/24 [100/0] directly connected, Null0 Discard
S 192.168.17.0/24 [100/0] directly connected, Null0 Discard
S 192.168.18.0/24 [100/0] directly connected, Null0 Discard
S 192.168.19.0/24 [100/0] directly connected, Null0 Discard
S 192.168.20.0/24 [100/0] directly connected, Null0 Discard
S 192.168.21.0/24 [100/0] directly connected, Null0 Discard
S 192.168.22.0/24 [100/0] directly connected, Null0 Discard
S 192.168.23.0/24 [100/0] directly connected, Null0 Discard
S 192.168.24.0/24 [100/0] directly connected, Null0 Discard
S 192.168.25.0/24 [100/0] directly connected, Null0 Discard
S 192.168.26.0/24 [100/0] directly connected, Null0 Discard
S 192.168.27.0/24 [100/0] directly connected, Null0 Discard
S 192.168.28.0/24 [100/0] directly connected, Null0 Discard
S 192.168.29.0/24 [100/0] directly connected, Null0 Discard
S 192.168.30.0/24 [100/0] directly connected, Null0 Discard
S 192.168.31.0/24 [100/0] directly connected, Null0 Discard
S 192.168.32.0/24 [100/0] directly connected, Null0 Discard
S 192.168.33.0/24 [100/0] directly connected, Null0 Discard
S 192.168.34.0/24 [100/0] directly connected, Null0 Discard
S 192.168.35.0/24 [100/0] directly connected, Null0 Discard
S 192.168.36.0/24 [100/0] directly connected, Null0 Discard
S 192.168.37.0/24 [100/0] directly connected, Null0 Discard
S 192.168.38.0/24 [100/0] directly connected, Null0 Discard
S 192.168.39.0/24 [100/0] directly connected, Null0 Discard
S 192.168.40.0/24 [100/0] directly connected, Null0 Discard
S 192.168.41.0/24 [100/0] directly connected, Null0 Discard
S 192.168.42.0/24 [100/0] directly connected, Null0 Discard
S 192.168.43.0/24 [100/0] directly connected, Null0 Discard
S 192.168.44.0/24 [100/0] directly connected, Null0 Discard
S 192.168.45.0/24 [100/0] directly connected, Null0 Discard
S 192.168.46.0/24 [100/0] directly connected, Null0 Discard
S 192.168.47.0/24 [100/0] directly connected, Null0 Discard
S 192.168.48.0/24 [100/0] directly connected, Null0 Discard
S 192.168.49.0/24 [100/0] directly connected, Null0 Discard
S 192.168.50.0/24 [100/0] directly connected, Null0 Discard
S 192.168.51.0/24 [100/0] directly connected, Null0 Discard
S 192.168.52.0/24 [100/0] directly connected, Null0 Discard
S 192.168.53.0/24 [100/0] directly connected, Null0 Discard
S 192.168.54.0/24 [100/0] directly connected, Null0 Discard
S 192.168.55.0/24 [100/0] directly connected, Null0 Discard
S 192.168.56.0/24 [100/0] directly connected, Null0 Discard
S 192.168.57.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.58.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.59.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.60.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.61.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.62.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.63.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.64.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.65.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.66.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.67.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.68.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.69.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.70.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.71.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.72.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.73.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.74.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.75.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.76.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.77.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.78.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.79.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.80.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.81.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.82.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.83.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.84.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.85.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.86.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.87.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.88.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.89.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.90.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.91.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.92.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.93.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.94.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.95.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.96.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.97.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.98.0/24 [100/0] directly connected, Null0 Discard hw-failure
S 192.168.99.0/24 [100/0] directly connected, Null0 Discard hw-failure
So, yup. TWO static routes.
This is a case of a limitation, which will likely be released as a feature in the future.......
Reason #4. No IPv6 when using "Layer 3" switches.¶

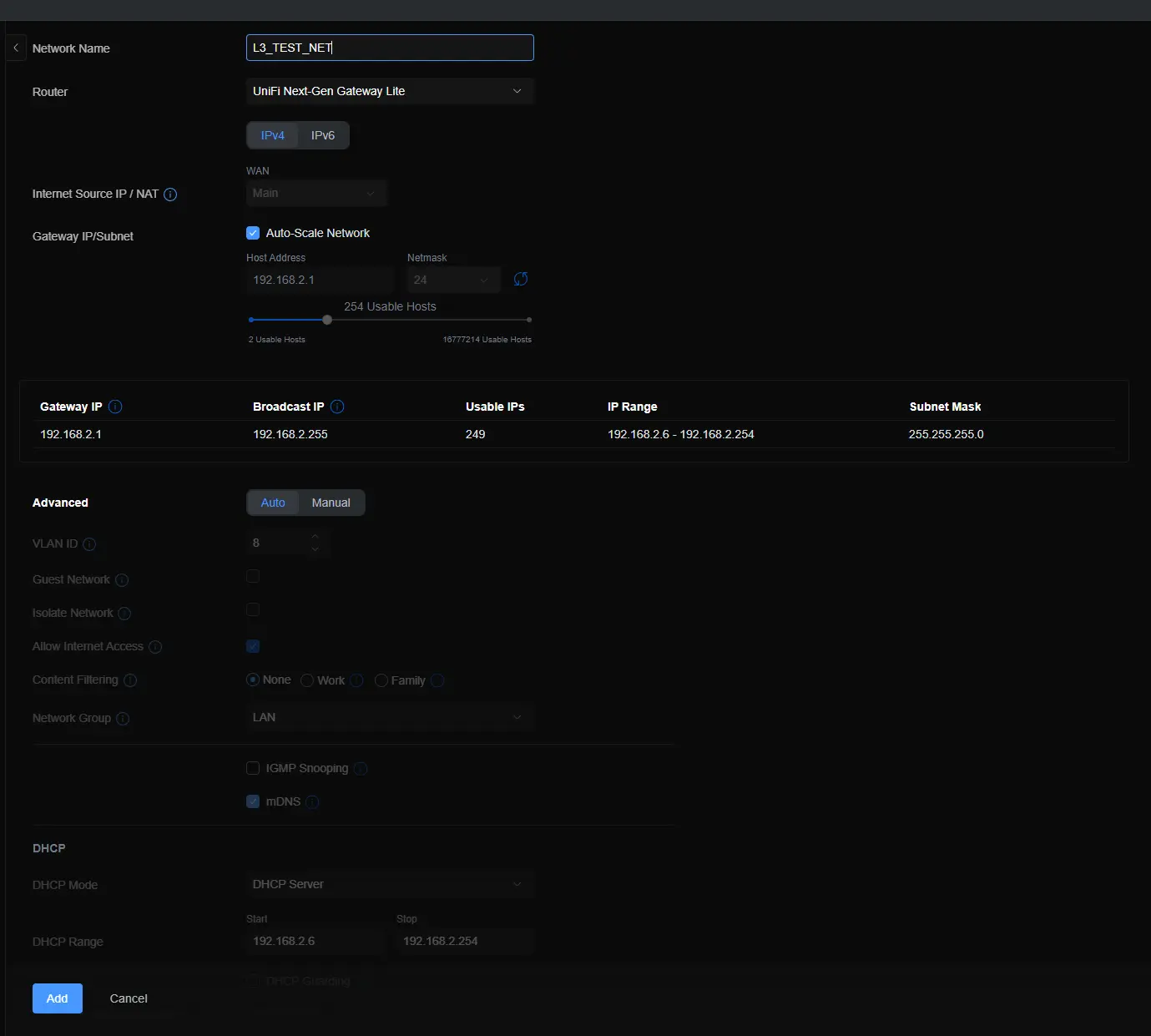

So, when you are creating a network on a UXG/UDM/etc.... You have quite a few features.

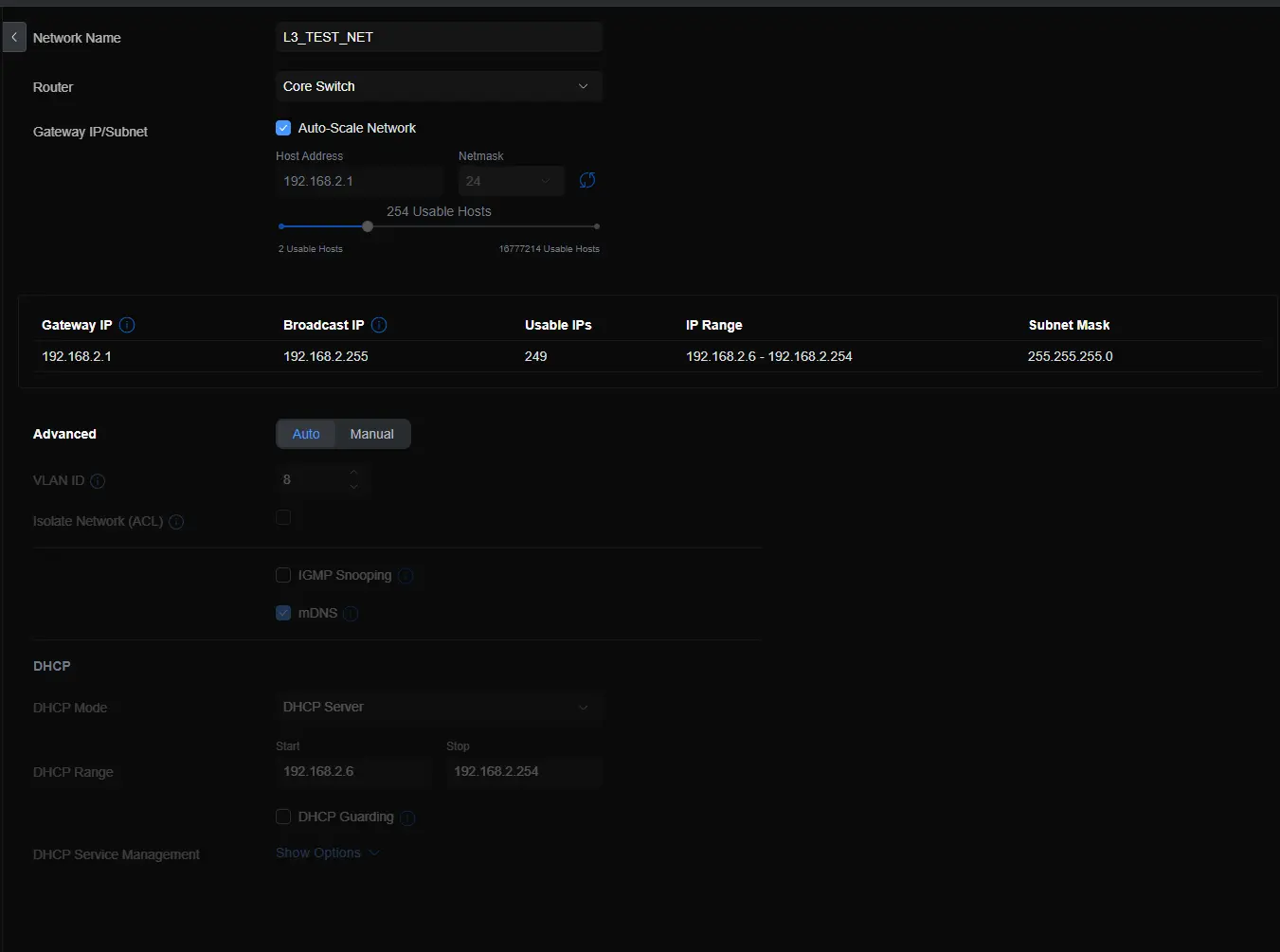

But, When you decide that you want to use that fancy 10 gig layer 3 switch to speed up traffic a bit...
You will notice a few features disappear.
Notably, you lose the ability to configure any form of IPv6. No SLAAC, No DHCP-v6, No prefix delegation. Nothing.
This also means, NO support for IPv6 routing
IPv6 traffic can pass over layer 2 just fine. However, there is ZERO support for doing anything with IPv6 on this switch.
I'd guess, one day years from now, a feature update will include "IPv6 Support" for Layer 3 switches.
But... Those features aren't advertised!!!!¶
As of 2024-07-19, the front page advertises this as a "Layer 3" switch, with "Layer 3 switching"
Under Technical Specifications, it lists "Static routing between local networks"
Unifi's Layer 3 Routing Documentation
How DOES Unifi's "Layer 3" work?¶
When you use Unifi, It will form a star topology network.
This- does not change regardless of the number of layer 2 switches in your deployment.
This- meaning, every client's packets, will be routed by the central gateway / udm / uxg / etc.
When you decide to add a unifi layer 3 switch, and host networks on it, you end up with a extended star topology for your layer 3 routing.
Clients will send their packets through their assigned layer 3 switch. The switch will then route those packets to either other networks hosted by the switch..
Or, if the destination network is not hosted on this switch, the switch will send the packets to the central gateway to be routed.
The issue here- if you have multiple layer-3 switches in this way- the traffic going between switches MUST pass through the gateway. This causes additional latency, and load, especially when you do not need to apply ACLs between lan networks.
Typically, in most enterprise networks, you have a "Core Network" which consists of inter-connected, meshed switches. All of your routing will occur here in the network core.
Other Complaints about Unifi in General¶
UXG-Lite "does not support SNMP"¶
Notice
This feature has been added via software updates.
The update occurred sometime between me writing the post in July 2024, and me publishing this post, in December 2024.
While, this is a pretty minor compliant- You cannot enable SNMP on the UXG-Lite via the Unifi interface.
Although, you can enable it manually pretty easily. It just will not persist across reboots.
root@UniFiNext-GenGatewayLite:/var/log# apt-get install snmp
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following NEW packages will be installed:
snmp
0 upgraded, 1 newly installed, 0 to remove and 36 not upgraded.
Need to get 170 kB of archives.
After this operation, 639 kB of additional disk space will be used.
Get:1 https://deb.debian.org/debian bullseye/main arm64 snmp arm64 5.9+dfsg-4+deb11u1 [170 kB]
Fetched 170 kB in 0s (617 kB/s)
Selecting previously unselected package snmp.
(Reading database ... 24657 files and directories currently installed.)
Preparing to unpack .../snmp_5.9+dfsg-4+deb11u1_arm64.deb ...
Unpacking snmp (5.9+dfsg-4+deb11u1) ...
Setting up snmp (5.9+dfsg-4+deb11u1) ...
root@UniFiNext-GenGatewayLite:/var/log# service snmpd start
No support for GRE, GIF, or Tunnels in general.¶
So, you want IPv6. Your ISP does not offer IPv6. You pick up a /48 block of ip addresses from HE.Net's Tunnelbroker, which is delivered via a GIF tunnel.
Don't bother trying to set it up via Unifi. There is zero support.
Info
Although, as usual- you CAN manually add it via ssh/cli on your gateway.
Just- don't expect it to persist.
Real time metrics¶
Info
Unifi added Netflow recently, in Unifi Network Application 8.5.6
This- is an issue I ran across recently when I was working on my Packet Loss issue.
None of the data in Unifi is real-time. NONE of it.
There is no way, you can view, anywheres near a live-traffic view for debugging and diagnosing issues.

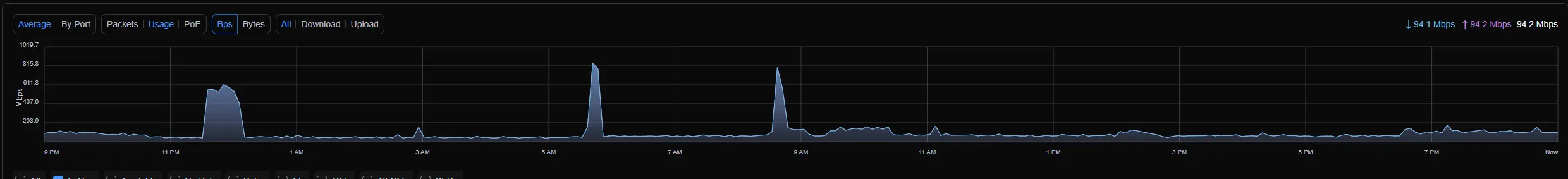

Sure, you can look at switch insights... But, this data is all aggregated, and does not update frequently.

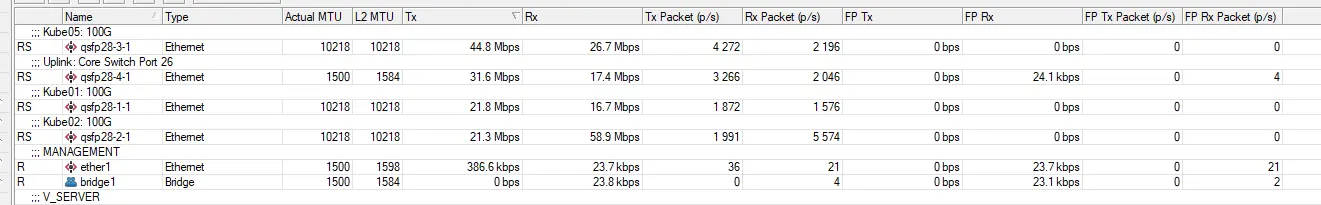

Meanwhile, compared to my Mikrotik, which updates every piece of data in the entire interface... every half second...
(Granted- this is a flat picture, which doesn't show updates.... But- know, those values update every half second or so.)

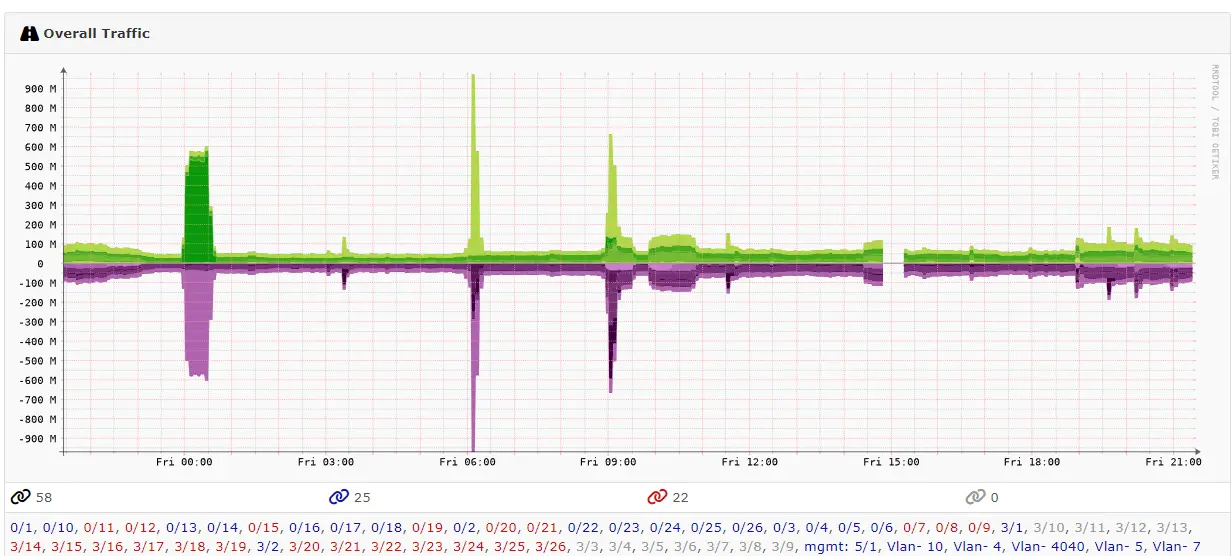

The best option you have, for getting any form of "Useful" diagnostics from Unifi- is by using a monitoring tool... Nagios, Zabbix, LibreNMS, etc.
Honestly, I am not kidding. I have to use a 3rd party tool to get any USEFUL metrics from Unifi.
Going back to my Packet Loss issue, One of the items I had to do for troubleshooting, was to look for STP issues, Packet drops, and delay issues.

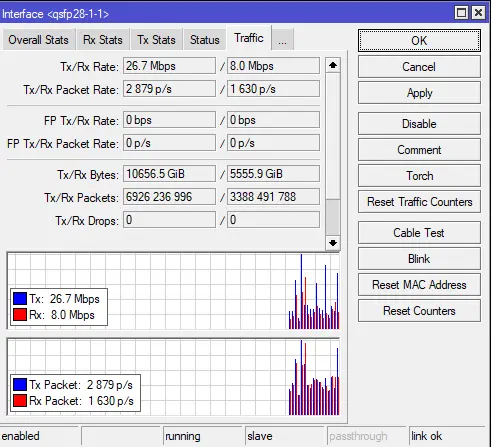

So, Mikrotik RouterOS makes it easy to view TX/RX drops...

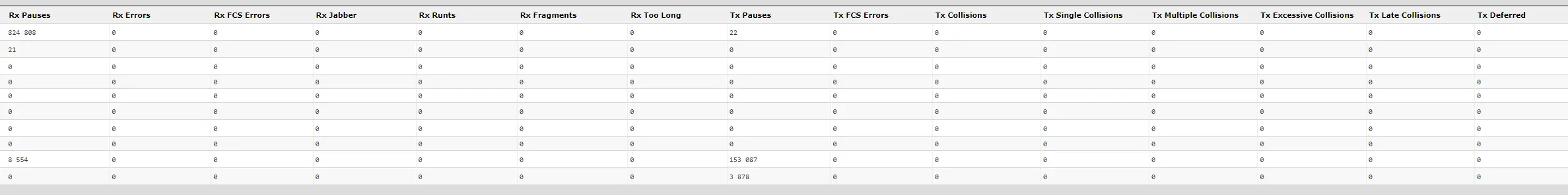

Mikrotik's SwOS also makes it easy to view Drops/Pauses/Issues.
So, one would think, it shouldn't be hard to do via Unifi, right?

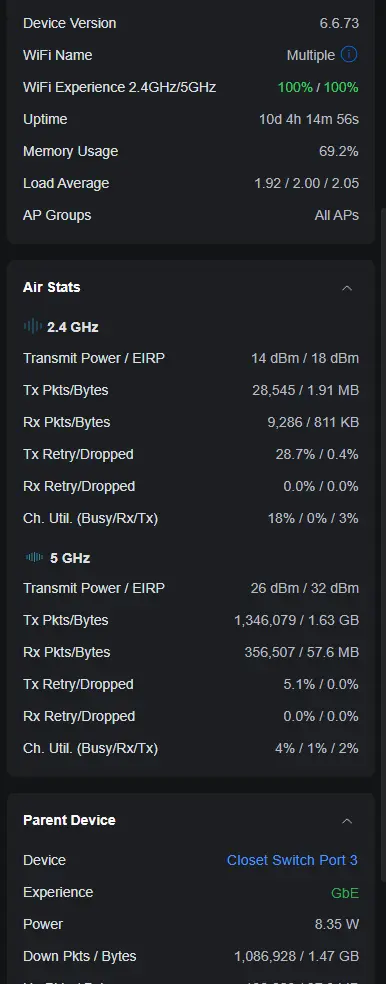

Well, the ONLY stats I can find in Unifi for packet issues, is when I click one of my APs from the Port Insights Page. And- it gives excellent information.
Info

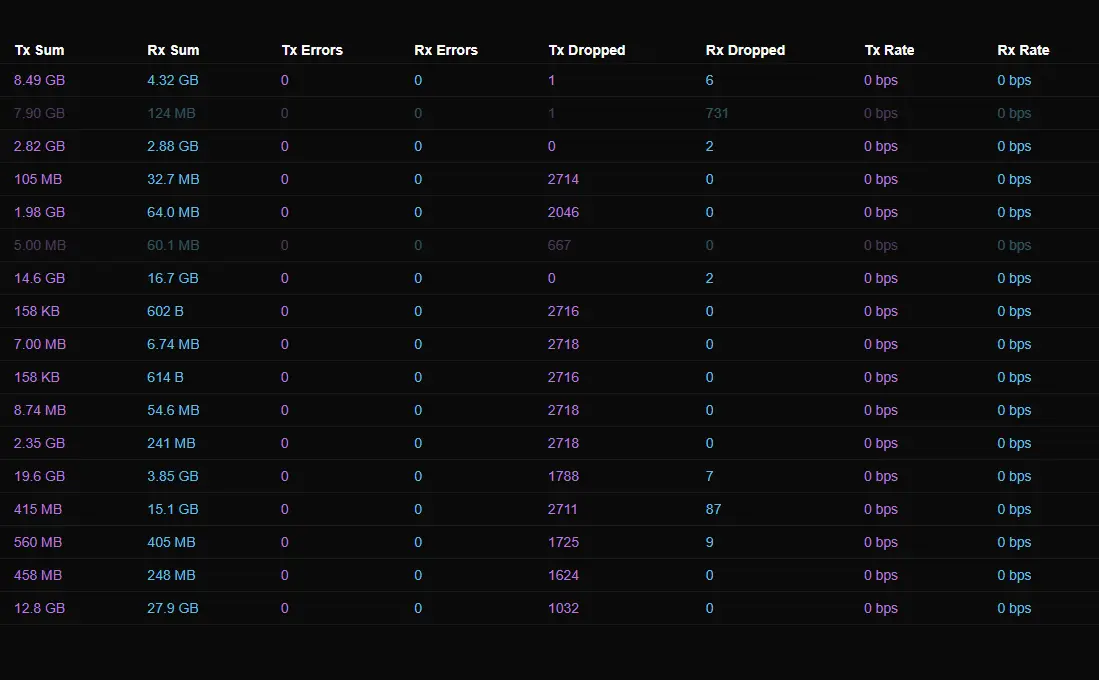

After some googling, I did manage to find where switch-port interface stats are, at least for tx/rx drops.
Turns out- the feature DOES exist. Port Insights, Top right, Enable the columns.
Oddly enough those, this is the only location I can find the view the stats. You cannot just click on a device and see the packet drops/pauses.
Still- there isn't a display to show paused packets.
If, you drop to a CLI, you can see TONS of useful information. Just- not on the GUI.
UXG-Lite:
root@UniFiNext-GenGatewayLite:/var/log# netstat --statistics
Ip:
Forwarding: 1
3785691 total packets received
3032238 forwarded
0 incoming packets discarded
729421 incoming packets delivered
3810233 requests sent out
33 outgoing packets dropped
10 dropped because of missing route
Icmp:
66129 ICMP messages received
16 input ICMP message failed
ICMP input histogram:
destination unreachable: 218
echo requests: 23591
echo replies: 42320
70112 ICMP messages sent
0 ICMP messages failed
ICMP output histogram:
destination unreachable: 4129
redirect: 17
echo requests: 42375
echo replies: 23591
IcmpMsg:
InType0: 42320
InType3: 218
InType8: 23591
OutType0: 23591
OutType3: 4129
OutType5: 17
OutType8: 42375
Tcp:
18429 active connection openings
8005 passive connection openings
9153 failed connection attempts
9 connection resets received
3 connections established
587307 segments received
595567 segments sent out
74 segments retransmitted
0 bad segments received
9368 resets sent
Udp:
45904 packets received
4239 packets to unknown port received
0 packet receive errors
123152 packets sent
0 receive buffer errors
0 send buffer errors
IgnoredMulti: 27650
UdpLite:
TcpExt:
8799 TCP sockets finished time wait in fast timer
15497 delayed acks sent
1619 delayed acks further delayed because of locked socket
Quick ack mode was activated 29 times
1282 packets directly queued to recvmsg prequeue
TCPDirectCopyFromPrequeue: 4460
214851 packet headers predicted
116260 acknowledgments not containing data payload received
123131 predicted acknowledgments
TCPTimeouts: 26
TCPLossProbes: 27
TCPDSACKOldSent: 29
TCPDSACKRecv: 25
1 connections reset due to early user close
1 connections aborted due to timeout
TCPDSACKIgnoredNoUndo: 17
IPReversePathFilter: 343
TCPRetransFail: 3
TCPRcvCoalesce: 12421
TCPOFOQueue: 136
TCPSpuriousRtxHostQueues: 16
TCPAutoCorking: 2132
TCPSynRetrans: 49
TCPOrigDataSent: 342918
TCPHystartTrainDetect: 4
TCPHystartTrainCwnd: 64
TCPACKSkippedSeq: 3
TCPKeepAlive: 79
IpExt:
InNoRoutes: 2682
InMcastPkts: 2450
OutMcastPkts: 6852
InBcastPkts: 32217
OutBcastPkts: 4406
InOctets: 2409440431
OutOctets: 4166885278
InMcastOctets: 168688
OutMcastOctets: 310328
InBcastOctets: 2731381
OutBcastOctets: 146366
InNoECTPkts: 3957265
InECT1Pkts: 9
InECT0Pkts: 3646
USW-PRO-24 (via CLI)
Again, TONS of information to see here.
(UBNT) #show interface ethernet 0/1
Total Packets Received (Octets)................ 4738969822
Packets Received 64 Octets..................... 19047
Packets Received 65-127 Octets................. 1118147
Packets Received 128-255 Octets................ 212154
Packets Received 256-511 Octets................ 274117
Packets Received 512-1023 Octets............... 99508
Packets Received 1024-1518 Octets.............. 2382400
Packets Received 1519-2047 Octets.............. 680274
Packets Received 2048-4095 Octets.............. 0
Packets Received 4096-9216 Octets.............. 0
Good Packets Received > 1518 Octets............ 680274
Packets RX and TX 64 Octets.................... 315750
Packets RX and TX 65-127 Octets................ 1822694
Packets RX and TX 128-255 Octets............... 398190
Packets RX and TX 256-511 Octets............... 348459
Packets RX and TX 512-1023 Octets.............. 163115
Packets RX and TX 1024-1518 Octets............. 2960678
Packets RX and TX 1519-2047 Octets............. 0
Packets RX and TX 2048-4095 Octets............. 0
Packets RX and TX 4096-9216 Octets............. 0
Total Packets Received Without Errors.......... 4785647
Unicast Packets Received....................... 4777342
Multicast Packets Received..................... 4758
Broadcast Packets Received..................... 3547
Receive Packets Discarded...................... 6
Total Packets Received with MAC Errors......... 0
Jabbers Received............................... 0
Fragments Received............................. 0
Undersize Received............................. 0
Alignment Errors Received...................... 0
FCS Errors Received............................ 0
Overruns Received.............................. 0
URPF Discards.................................. 0
Total Received Packets Not Forwarded........... 6
802.3x Pause Frames Received................... 0
Unacceptable Frame Type........................ 6
Total Packets Transmitted (Octets)............. 9651421756
Packets Transmitted 64 Octets.................. 296703
Packets Transmitted 65-127 Octets.............. 704547
Packets Transmitted 128-255 Octets............. 186036
Packets Transmitted 256-511 Octets............. 74342
Packets Transmitted 512-1023 Octets............ 63607
Packets Transmitted 1024-1518 Octets........... 578278
Packets Transmitted > 1518 Octets.............. 5671553
Max Frame Size................................. 1518
Maximum Transmit Unit.......................... 1500
Total Packets Transmitted Successfully......... 7575066
Unicast Packets Transmitted.................... 7561291
Multicast Packets Transmitted.................. 2281
Broadcast Packets Transmitted.................. 11494
Transmit Packets Discarded..................... 1
Total Transmit Errors.......................... 0
FCS Errors Transmitted......................... 0
Transmit errors................................ 0
Jabbers Transmitted............................ 0
Total Transmit Packets Discarded............... 0
Single Collision Frames........................ 0
Multiple Collision Frames...................... 0
Excessive Collision Frames..................... 0
802.3x Pause Frames Transmitted................ 0
GVRP PDUs received............................. 0
GVRP PDUs Transmitted.......................... 0
GVRP Failed Registrations...................... 0
GMRP PDUs Received............................. 0
GMRP PDUs Transmitted.......................... 0
GMRP Failed Registrations...................... 0
STP BPDUs Transmitted.......................... 0
STP BPDUs Received............................. 0
RSTP BPDUs Transmitted......................... 0
RSTP BPDUs Received............................ 0
MSTP BPDUs Transmitted......................... 0
MSTP BPDUs Received............................ 0
SSTP BPDUs Transmitted......................... 0
SSTP BPDUs Received............................ 0
EAPOL Frames Transmitted....................... 0
EAPOL Start Frames Received.................... 0
Load Interval.................................. 300
Bits Per Second Received....................... 6714128
Bits Per Second Transmitted.................... 16502240
Packets Per Second Received.................... 928
Packets Per Second Transmitted................. 1589
Percent Utilization Received................... 0%
Percent Utilization Transmitted................ 1%
Time Since Counters Last Cleared............... 0 day 1 hr 37 min 35 sec
(UBNT) #
Routing - BGP/OSPF/etc.¶
Info
Note- BGP routing WAS added recently. However, it is only supported for "Enterprise" gateways.
BGP was added in Unifi Network Application release 8.2.93
Unifi DID recently release OSPF routing.
And, while its a very basic implementation, it does work, mostly.
But, it does NOT support the layer 3 switches, which is a shame as any routes you are passing back to Unifi, will route through your gateway, instead of your 10G layer 3 unifi switch.
If- this was supported on the Layer 3 switches, I don't think this post would have even been written, let alone published.
BGP- Supposedly- BGP is coming in a future update.
Addition of the BGP Dynamic Routing Protocol is scheduled for an upcoming release.
My complaint here, It took nearly a decade before we got support for a single dynamic routing protocol.
