Reusing EMC Drives in other systems¶
So, I picked up a EMC-branded 1.92TB PM1633 SAS drive off of ebay, to toss into my ceph cluster.
After acquiring it, I slapped it into my Dell MD1220, and was surprised that it was not appearing in proxmox.
This is a short post to help correct this issue.

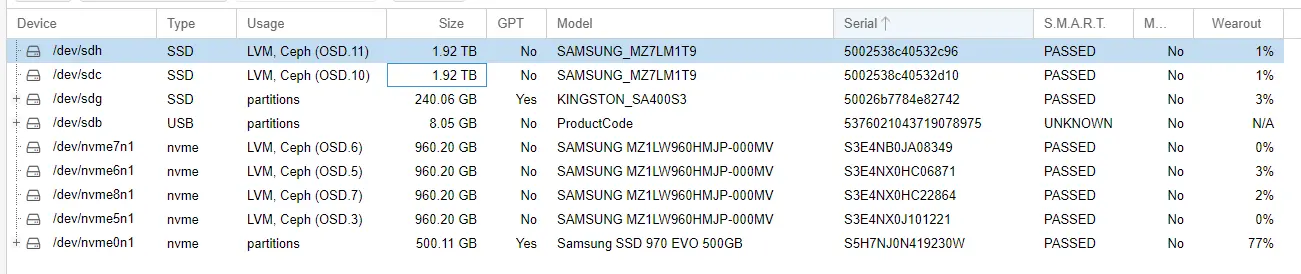

First- here are the available drives showing inside of Proxmox
Note- the 1.92T drives being displayed are a pair of Samsung PM863A SSDs which are also mounted inside of the MD1220.
Lets run a lsblk to view the currently detected block devices.
root@kube02:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sdb 8:16 1 7.5G 0 disk
└─sdb1 8:17 1 7.5G 0 part /mnt/thumbdrive
sdc 8:32 0 1.7T 0 disk
sdf 8:80 0 0B 0 disk
sdg 8:96 0 223.6G 0 disk
├─sdg1 8:97 0 1007K 0 part
├─sdg2 8:98 0 1G 0 part
└─sdg3 8:99 0 222.6G 0 part
sdh 8:112 0 1.7T 0 disk
rbd0 251:0 0 8G 0 disk
rbd1 251:16 0 16G 0 disk
rbd2 251:32 0 8G 0 disk
nvme0n1 259:0 0 465.8G 0 disk
├─nvme0n1p1 259:1 0 1007K 0 part
├─nvme0n1p2 259:2 0 1G 0 part /boot/efi
└─nvme0n1p3 259:3 0 464.8G 0 part
├─pve-swap 252:0 0 8G 0 lvm [SWAP]
├─pve-root 252:1 0 96G 0 lvm /
├─pve-data_tmeta 252:6 0 3.4G 0 lvm
│ └─pve-data 252:8 0 337.9G 0 lvm
└─pve-data_tdata 252:7 0 337.9G 0 lvm
└─pve-data 252:8 0 337.9G 0 lvm
nvme6n1 259:4 0 894.3G 0 disk
└─ceph--8e2310de--b5ed--46bd--a32e--5048af46cfe0-osd--block--e06ae6d2--d881--40a0--adcd--2c55020474d5 252:3 0 894.3G 0 lvm
nvme7n1 259:5 0 894.3G 0 disk
└─ceph--126d8000--5cdd--4ced--ab77--38893cd88dc8-osd--block--6db92940--fc38--4b0b--9fb4--4c5ac6742921 252:2 0 894.3G 0 lvm
nvme5n1 259:6 0 894.3G 0 disk
└─ceph--3f428911--5213--461d--a5fd--029f673d7ad2-osd--block--e65f3c81--23de--4f81--af2b--be185f6fef42 252:4 0 894.3G 0 lvm
nvme8n1 259:7 0 894.3G 0 disk
└─ceph--25d71cae--e648--4a95--ae1f--c45f8fa547d7-osd--block--ae41fc24--8408--4656--8310--58e00a2a146b 252:5 0 894.3G 0 lvm
I am assuming /dev/sdf is the missing drive, but, it is reporting a size of 0B.
So, lets resolve this issue.
Info
Note- This guide assumes you are using a DAS / Disk-shelf, and uses sg3-utils to interact directly with the scsi device.
For using local disks, there are easier methods to interact.
TLDR - Too Long, didn't read¶
If- you don't want to read, and just want to get straight to the point, here is the summary. Otherwise, you can skip this section.
This issue occurs because EMC, Netapp, (and others), use a non-standard block size for their drives. We can easily correct this issue by reformatting the drive, with the correct block-size.
- Install sg3-utils
apt-get install sg3-utils
- Identify the drive using
sg_scansg_scan -i
- Identify the current block size using
sg_readcapsg_readcap /dev/sg2
- Reformat the drive wit the correct block-size using
sg_formatsg_format --format --size=512 /dev/sg2
- Done.
Getting Started¶
Install sg3-utils¶
This will add the commands needed to interact with SCSI devices.
apt-get install sg3-utils
Step 1. Scan SCSI using sg_scan¶
Next, lets scan for scsi drives, using sg_scan
root@kube02:~# sg_scan -i
/dev/sg0: scsi12 channel=0 id=0 lun=0 [em]
VendorCo ProductCode 2.00 [rmb=1 cmdq=0 pqual=0 pdev=0x0]
/dev/sg1: scsi11 channel=0 id=60 lun=0
ATA SAMSUNG MZ7LM1T9 104Q [rmb=0 cmdq=1 pqual=0 pdev=0x0]
/dev/sg2: scsi11 channel=0 id=65 lun=0
SAMSUNG P1633N19 EMC1920 EQPC [rmb=0 cmdq=1 pqual=0 pdev=0x0]
/dev/sg3: scsi11 channel=0 id=62 lun=0
ATA KINGSTON SA400S3 T1A3 [rmb=0 cmdq=1 pqual=0 pdev=0x0]
/dev/sg4: scsi11 channel=0 id=63 lun=0
ATA SAMSUNG MZ7LM1T9 204Q [rmb=0 cmdq=1 pqual=0 pdev=0x0]
/dev/sg5: scsi11 channel=0 id=64 lun=0
DELL MD1220 1.05 [rmb=0 cmdq=0 pqual=0 pdev=0xd]
We can clearly see /dev/sg2 is indeed the missing PM1633.
Step 2. Identify the block size using sg_readcap¶
From previous experiences with Netapp / EMC, Its not uncommon for those drives to use non-standard / unusual block sizes, which causes issues when you try to reuse the drives.
We can use sg_readcap to detect this.
Looking at known-working drives, we can see a standard blocksize of 512.
root@kube02:~# sg_readcap /dev/sg3
Read Capacity results:
Last LBA=468862127 (0x1bf244af), Number of logical blocks=468862128
Logical block length=512 bytes
Hence:
Device size: 240057409536 bytes, 228936.6 MiB, 240.06 GB
root@kube02:~# sg_readcap /dev/sg4
Read Capacity results:
Last LBA=3750748847 (0xdf8fe2af), Number of logical blocks=3750748848
Logical block length=512 bytes
Hence:
Device size: 1920383410176 bytes, 1831420.3 MiB, 1920.38 GB
However, looking at the EMC-branded drive, we get a returned block size of 520 bytes.
root@kube02:~# sg_readcap /dev/sg2
Read Capacity results:
Last LBA=3674210303 (0xdaffffff), Number of logical blocks=3674210304
Logical block length=520 bytes
Hence:
Device size: 1910589358080 bytes, 1822080.0 MiB, 1910.59 GB
Step 3. Reformat the drive with the correct block size using sg_format¶
To reformat the drive, we can use sg_format, which will allow us to format the SCSI disk, with the correct block size.
The command we will use, is sg_format --format --size=512 /dev/sg2 which will format /dev/sg2, with a new blocksize of 512bytes.
root@kube02:~# sg_format --format --size=512 /dev/sg2
SAMSUNG P1633N19 EMC1920 EQPC peripheral_type: disk [0x0]
<< supports protection information>>
Unit serial number: P0NA0H905801
LU name: 5002538a06950fb0
Mode Sense (block descriptor) data, prior to changes:
Number of blocks=3674210304 [0xdb000000]
Block size=520 [0x208]
A FORMAT UNIT will commence in 15 seconds
ALL data on /dev/sg2 will be DESTROYED
Press control-C to abort
A FORMAT UNIT will commence in 10 seconds
ALL data on /dev/sg2 will be DESTROYED
Press control-C to abort
A FORMAT UNIT will commence in 5 seconds
ALL data on /dev/sg2 will be DESTROYED
Press control-C to abort
Format unit has started
After, sending the command, it will take a while to format, and will occasionally yield a progress message.
Format unit has started
Format unit in progress, 2.76% done
Format unit in progress, 5.90% done
Format unit in progress, 9.01% done
Format unit in progress, 12.11% done
Format unit in progress, 15.23% done
Format unit in progress, 18.33% done
Format unit in progress, 21.45% done
Format unit in progress, 24.55% done
Format unit in progress, 27.66% done
...
Afterwards, you can verify is now has the correct block size.
root@kube02:~# sg_readcap /dev/sg2
Read Capacity results:
Last LBA=3751804927 (0xdf9fffff), Number of logical blocks=3751804928
Logical block length=512 bytes
Hence:
Device size: 1920924123136 bytes, 1831936.0 MiB, 1920.92 GB
All Done.¶
After removing the HDD, and re-inserting it, the drive correctly appeared within Proxmox.

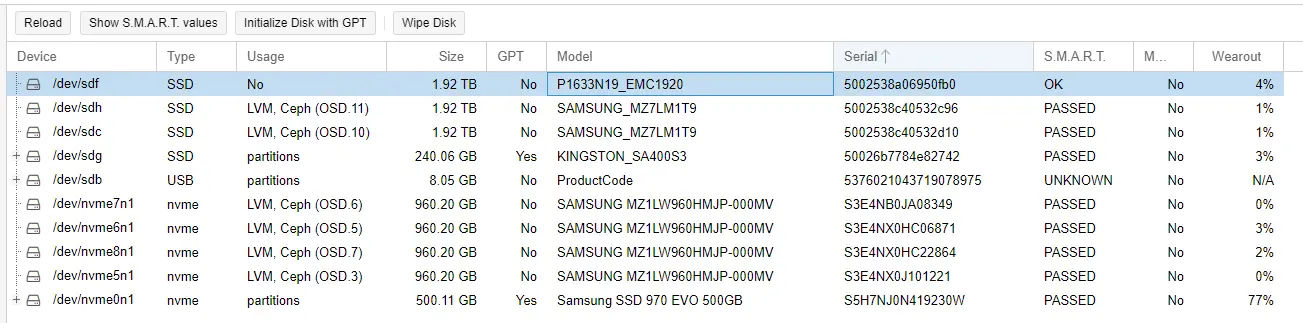

lsblk also now correctly identifies the drive's size. (/dev/sdf)
