Adding "Bifurcation" to a Dell R720XD¶
Wait, the R720XD doesn’t support bifurcation?
And- you would be correct by saying that.
However- There are special PCIe cards you can acquire, which will perform the bifurcation.
Credit for this idea goes to THIS POST which was brought to my attention by a fellow redditor. (I couldn’t find the comment from a month ago..)
As a note- this isn't specific to the R720XD, this guide/hardware should work in any hardware with the proper PCIe slots, which does not support bifurcation out of the box.
If your hardware does support native bifurcation, I would recommend using it, with something such as the ASUS Hyper M.2. However, this hardware should still work even if you do have on-board bifurcation as well.
Why Bifurcate?¶
By default, without bifurcation, you can use one PCIe slot, for one device. This means, despite having a16 lane slot, you can only use a single NVMe (which only requires 4 lanes). With bifurcation, you can use all 16 lanes for 4 individual devices.
My r720XD has… 6 usable PCIe slots. Two are 16 lanes, the rest are 8 lanes. My current needs involves 4x NVMe devices, a dual port 40G NIC, and a USB 3.1 type-c card. In my current setup, this consumes all of my available slots, despite having many free lanes.
Bifurcation isn’t only for NVME, however, this is generally the most popular use for it.
I would explain exactly how this works with a non-bifurcation motherboard…. however, I would just be repeating what I read from the original Serve The Home post. So, please look at the original post.
I will note- what I am doing below, isn’t actually bifurcation. But, PCIe switching. If you are more interested to know the technical details, I recommend you read the PEX 8748 Product Brief or PEX 8724 Product Brief.
Getting Started¶
- https://www.aliexpress.com/item/1005001344675103.html
- This is the one used for now.
- https://www.aliexpress.com/item/1005001889076788.html
- I picked up this one as a backup.
Regarding shipping, both cards ended up arriving at my house in the same package, only 2 weeks later. For- shipping from China, I was quite amazed at how quickly they arrived. Packaging was good.
To note, the cards did seem to go out of stock. However, see the Serve The Home post for other potential cards.
Step 1. Remove the old hardware¶

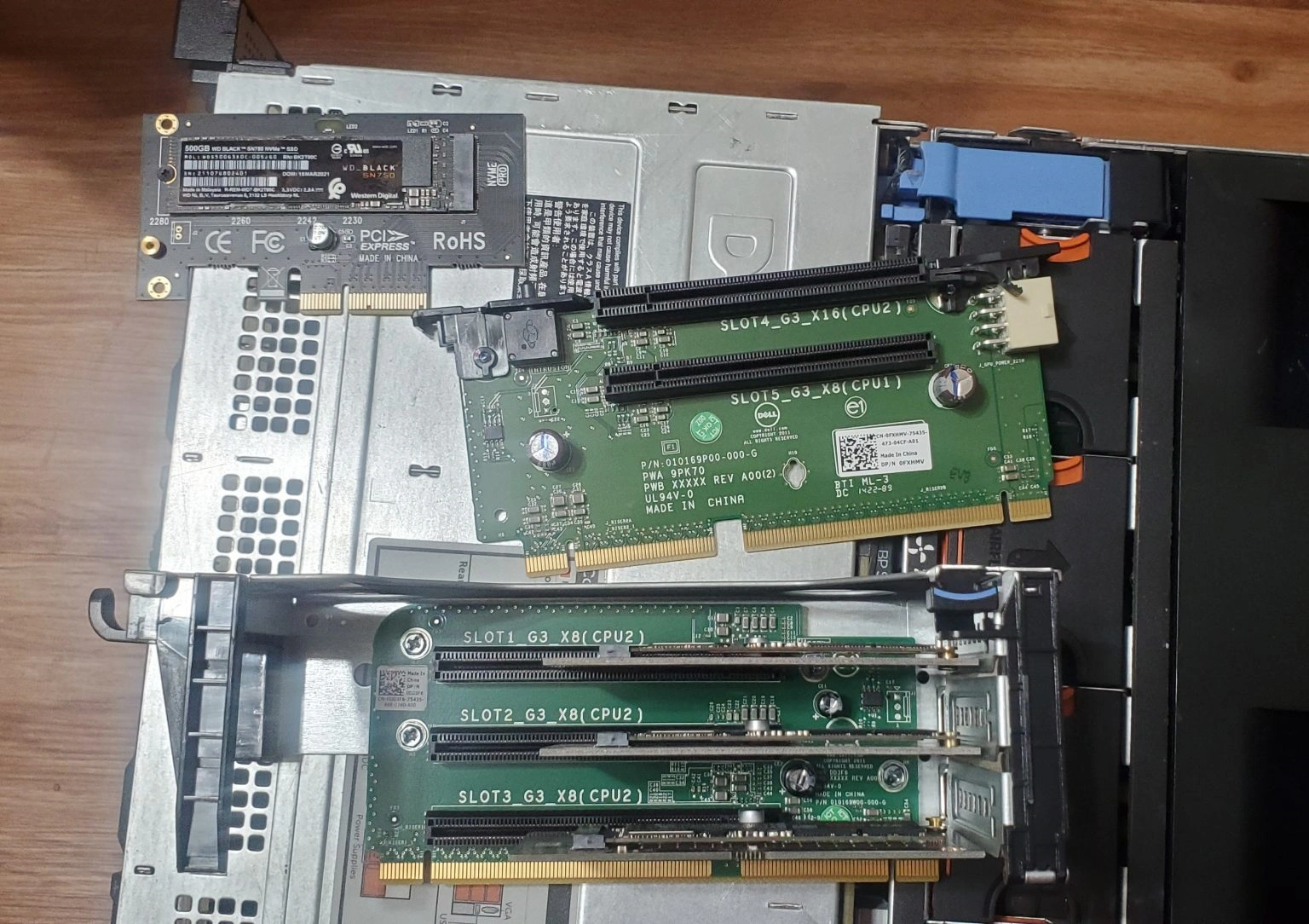

I started the process by removing all of the riser boards from my server. As you can see, I had a lot of adaptors using an entire PCIe slot for a single NVMe drive before.

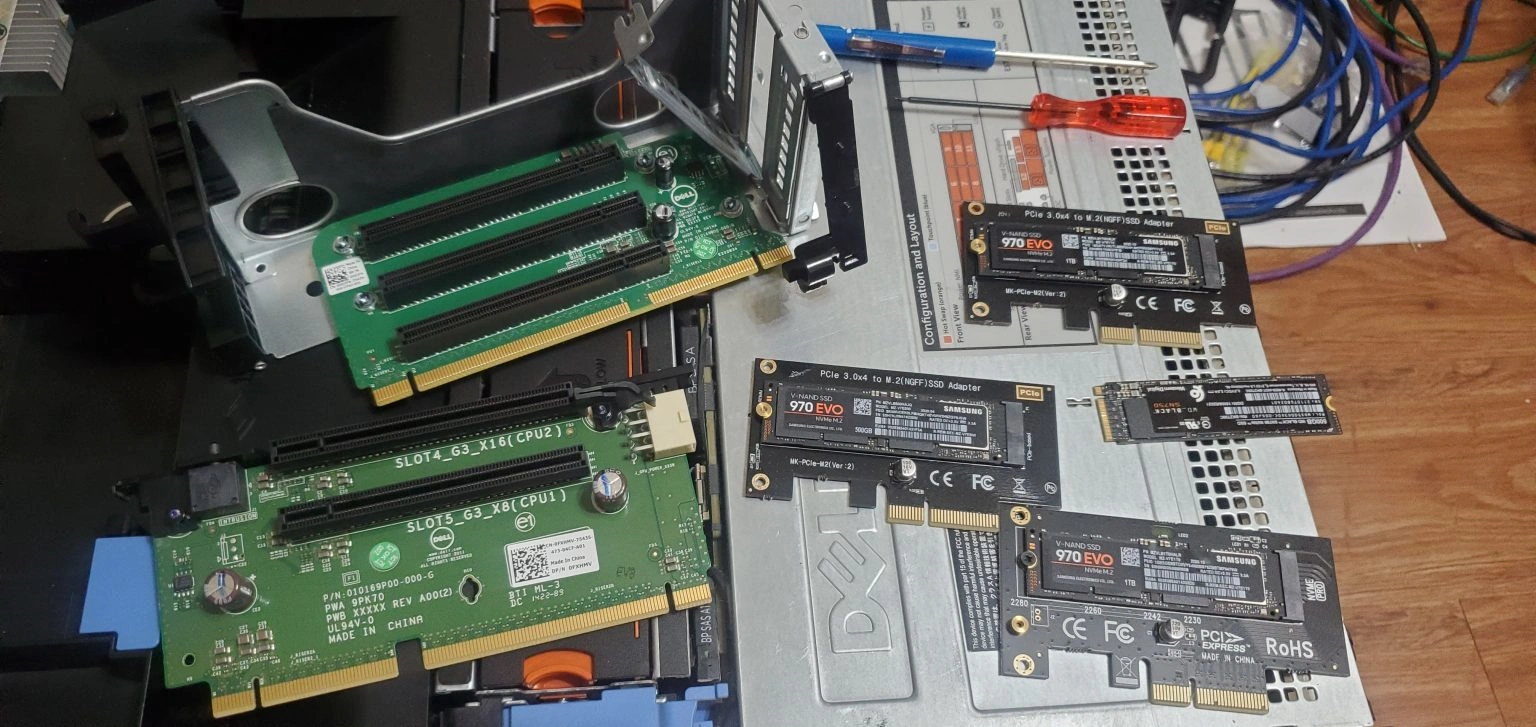

Next- I started removing the NVMe adaptors from the risers.

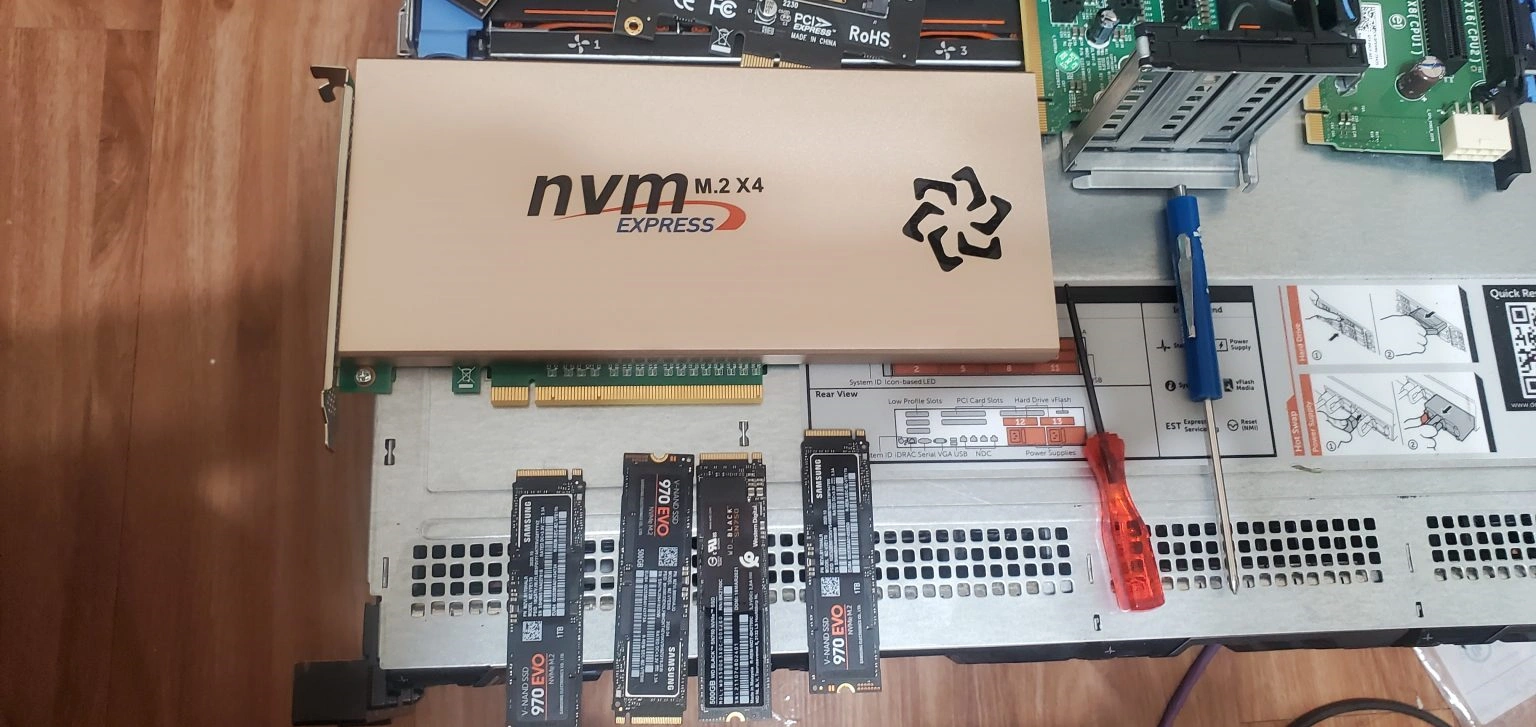

After a few minutes…. I had my pile of NVMe devices ready to go into the new card.

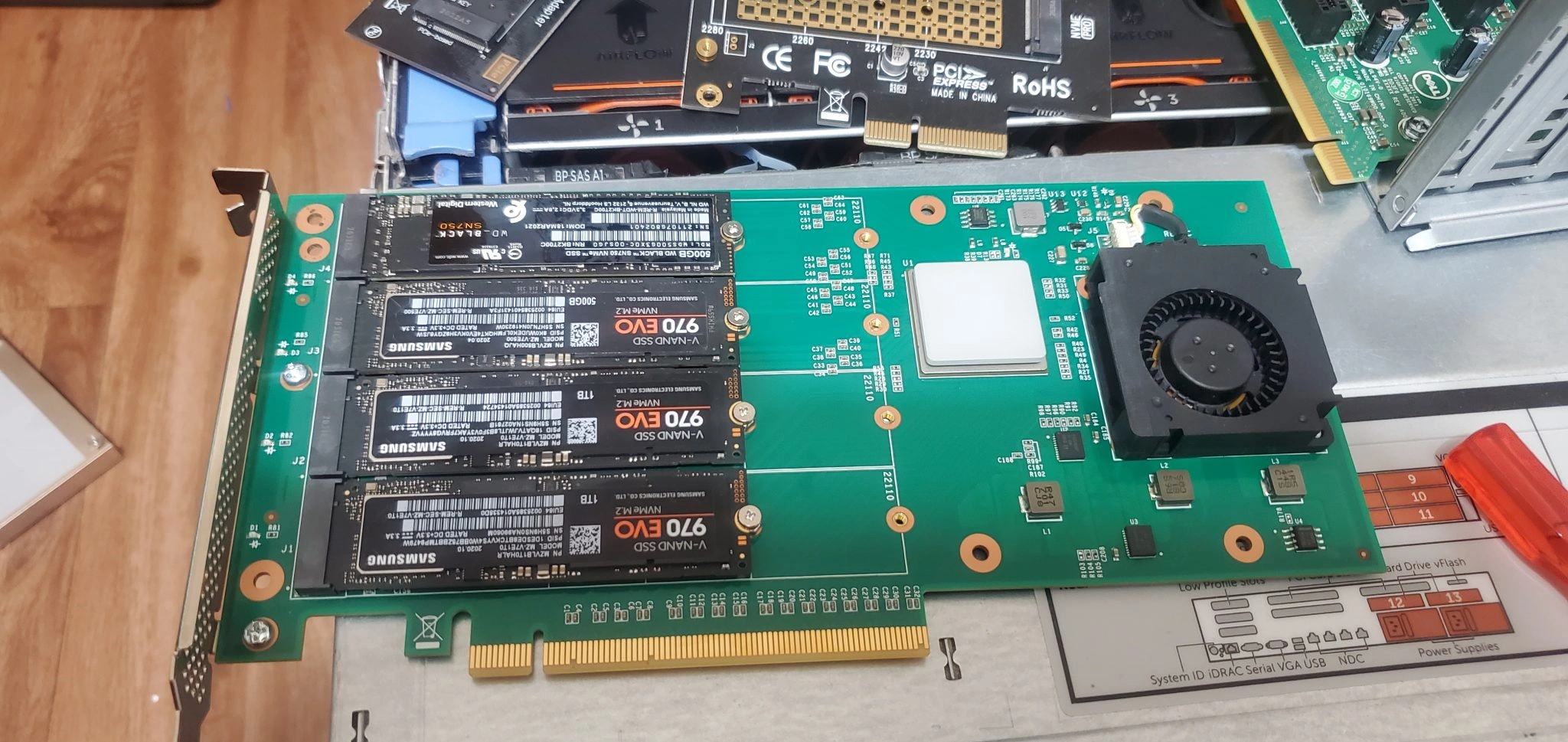

After removing the 6 screws on the back of the new device, I installed all 4 of my NVMe devices. The backside of the aluminum cover does have heat-sink pads, which hopefully should help keep my devices running a tad cooler.

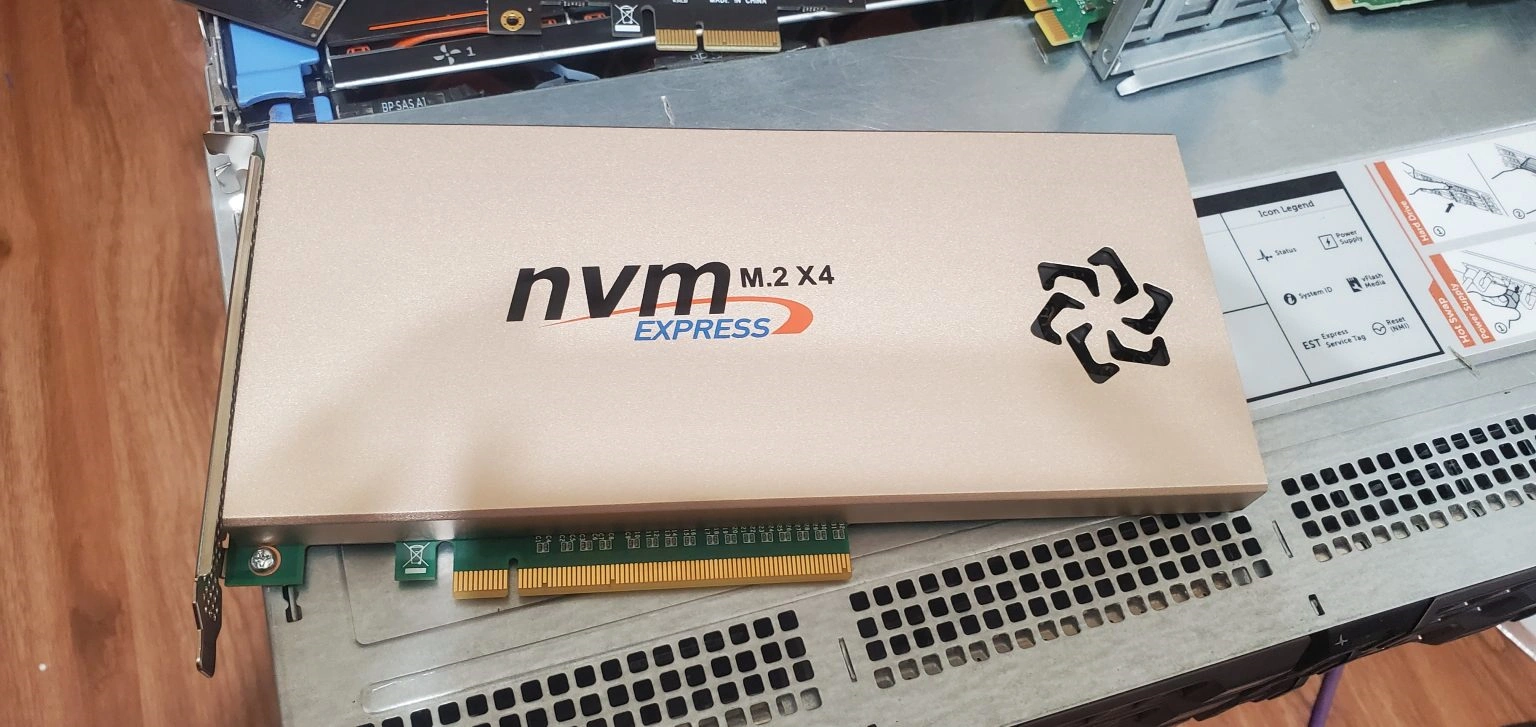

And… all buttoned up, ready to be installed.
The final part of this process, was to re-install all of the devices into the chassis.

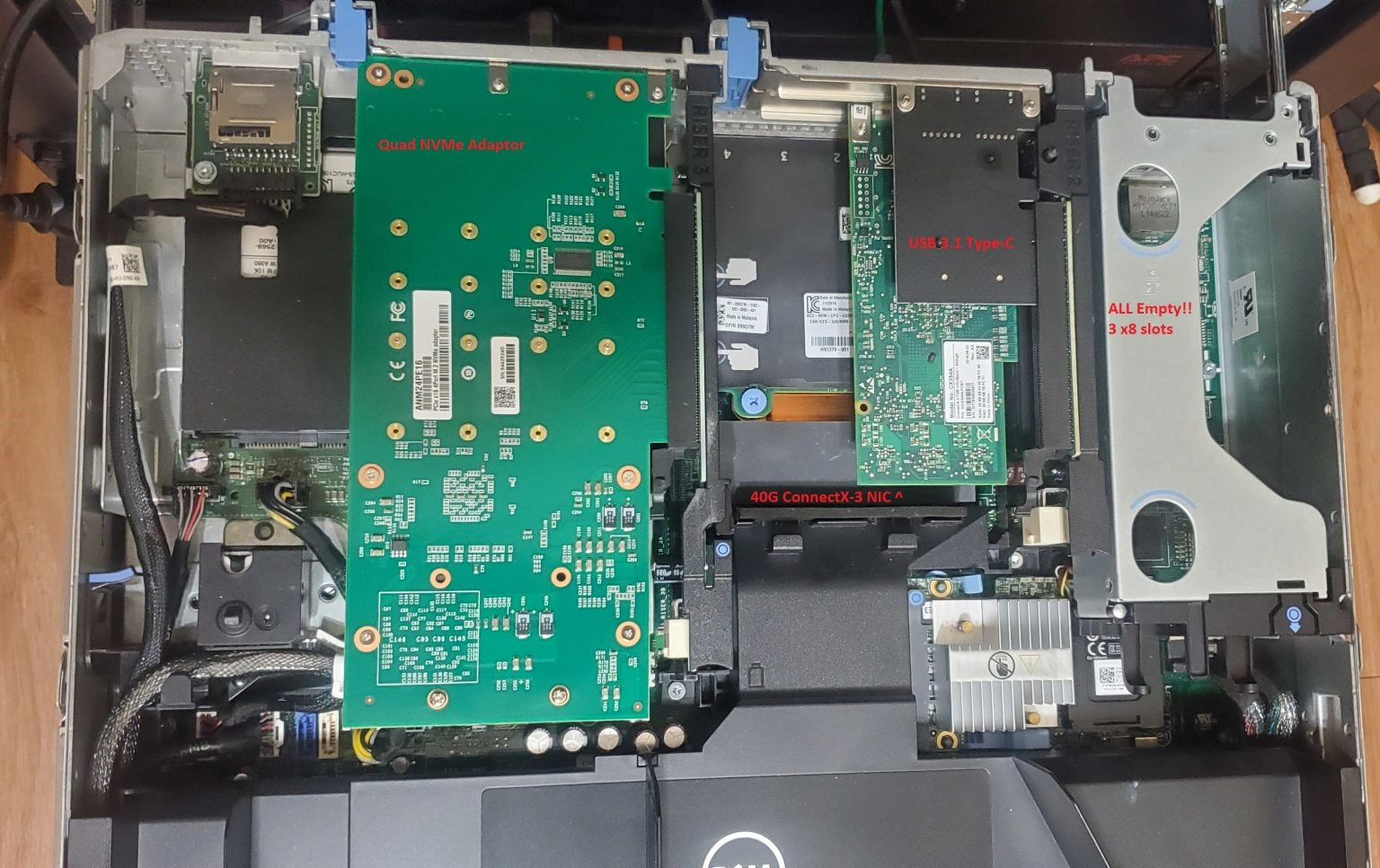

After adding everything back into the chassis, I still have three open PCIe slots.
In the future, when I decide to add more stripes to my NVMe/Flash pool, I will move the USB Type-C adaptor over to the half-width slots. But, for now, this is fine.
If the mspaint labels are not readable, the card on the left is the new quad NVMe switch, in the middle, I have a dual port 40Gbit ConnectX-3 NIC, with a USB 3.1 Type-C on top. The riser on the right has all three slots completely empty.
Does it boot?¶
Yes!
TrueNAS booted right up, without issues. My existing Flash/Cache pools were imported right away, without any issues at all.
As well, all of the NVMe disks were detected just like nothing had changed.
Does it perform?¶
Without going too deep into benchmarks….
iSCSI Benchmark¶

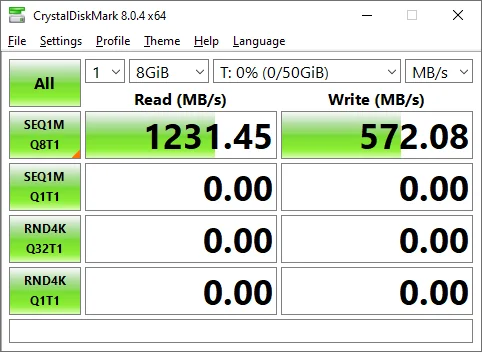

iSCSI across my flash pool benchmarked exactly the same as in my Previous Benchmarks after removing my brocade ICX-6610.
As noted before, I am bottlenecked by my 10Gbe connection. I have still not tracked down the issue limited all of my iSCSI write speeds to 570MB/s.
(Edit from 2023- This post came before I upgraded to 40GBe)
FIO Sequential Benchmark¶
truenas[/mnt/Cache]# fio --name=seqread --rw=read --direct=1 --ioengine=libaio --bs=8k --numjobs=8 --size=1G --runtime=600 --group_reporting
seqread: (g=0): rw=read, bs=(R) 8192B-8192B, (W) 8192B-8192B, (T) 8192B-8192B, ioengine=libaio, iodepth=1
...
fio-3.25
Starting 8 processes
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
Jobs: 8 (f=8)
seqread: (groupid=0, jobs=8): err= 0: pid=1319720: Sat Jan 8 11:52:23 2022
read: IOPS=686k, BW=5361MiB/s (5622MB/s)(8192MiB/1528msec)
slat (usec): min=3, max=661, avg= 9.33, stdev=20.50
clat (nsec): min=661, max=59010, avg=878.93, stdev=459.30
lat (usec): min=4, max=664, avg=10.34, stdev=20.69
clat percentiles (nsec):
| 1.00th=[ 748], 5.00th=[ 764], 10.00th=[ 772], 20.00th=[ 780],
| 30.00th=[ 788], 40.00th=[ 796], 50.00th=[ 804], 60.00th=[ 812],
| 70.00th=[ 828], 80.00th=[ 844], 90.00th=[ 1020], 95.00th=[ 1352],
| 99.00th=[ 1656], 99.50th=[ 1960], 99.90th=[ 9792], 99.95th=[11456],
| 99.99th=[15936]
bw ( MiB/s): min= 5423, max= 5743, per=100.00%, avg=5583.70, stdev=23.59, samples=16
iops : min=694204, max=735222, avg=714713.00, stdev=3019.26, samples=16
lat (nsec) : 750=0.84%, 1000=89.04%
lat (usec) : 2=9.66%, 4=0.31%, 10=0.06%, 20=0.09%, 50=0.01%
lat (usec) : 100=0.01%
cpu : usr=17.78%, sys=82.04%, ctx=47, majf=16, minf=153
IO depths : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued rwts: total=1048576,0,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=1
Run status group 0 (all jobs):
READ: bw=5361MiB/s (5622MB/s), 5361MiB/s-5361MiB/s (5622MB/s-5622MB/s), io=8192MiB (8590MB), run=1528-1528msec
root@truenas[/mnt/Cache]#
Based on FIO, I am receiving the full expected performance from a single drive. But- this doesn’t tell me if I am receiving full performance from multiple drives. SO…. lets benchmark my Flash pool, which is mirrored across two NVMes on this card.
truenas[/mnt/Flash]# fio --name=seqread --rw=read --direct=1 --ioengine=libaio --bs=8k --numjobs=24 --size=1G --runtime=600 --group_reporting
seqread: (g=0): rw=read, bs=(R) 8192B-8192B, (W) 8192B-8192B, (T) 8192B-8192B, ioengine=libaio, iodepth=1
...
fio-3.25
Starting 24 processes
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
seqread: Laying out IO file (1 file / 1024MiB)
Jobs: 24 (f=21): [R(8),f(1),R(6),f(2),R(7)][-.-%][r=7881MiB/s][r=1009k IOPS][eta 00m:00s]
seqread: (groupid=0, jobs=24): err= 0: pid=1663699: Sat Jan 8 12:06:40 2022
read: IOPS=959k, BW=7490MiB/s (7854MB/s)(24.0GiB/3281msec)
slat (usec): min=3, max=11418, avg=20.72, stdev=52.72
clat (nsec): min=735, max=582467, avg=1466.79, stdev=1155.76
lat (usec): min=4, max=11431, avg=22.42, stdev=53.14
clat percentiles (nsec):
| 1.00th=[ 804], 5.00th=[ 820], 10.00th=[ 828], 20.00th=[ 852],
| 30.00th=[ 876], 40.00th=[ 980], 50.00th=[ 1224], 60.00th=[ 1384],
| 70.00th=[ 1576], 80.00th=[ 1880], 90.00th=[ 2448], 95.00th=[ 3056],
| 99.00th=[ 4768], 99.50th=[ 5600], 99.90th=[ 8384], 99.95th=[12224],
| 99.99th=[27008]
bw ( MiB/s): min= 6418, max= 9478, per=100.00%, avg=7725.06, stdev=53.06, samples=135
iops : min=821626, max=1213256, avg=988808.13, stdev=6791.08, samples=135
lat (nsec) : 750=0.01%, 1000=40.74%
lat (usec) : 2=41.92%, 4=15.39%, 10=1.88%, 20=0.04%, 50=0.02%
lat (usec) : 100=0.01%, 250=0.01%, 500=0.01%, 750=0.01%
cpu : usr=13.68%, sys=85.88%, ctx=1005, majf=0, minf=522
IO depths : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued rwts: total=3145728,0,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=1
Run status group 0 (all jobs):
READ: bw=7490MiB/s (7854MB/s), 7490MiB/s-7490MiB/s (7854MB/s-7854MB/s), io=24.0GiB (25.8GB), run=3281-3281msec
Nearly 8GB/s. I am satisfied with this performance. This should have no issues at all saturating a 40G connection with iSCSI traffic.
Lastly, I wanted to perform a simple write test to see how well it performs. SINCE, there is ZFS overhead when writing, checksums, etc… and a mirror has to write to both disks at once, I am not expecting dramatic numbers here.
truenas[/mnt/Flash]# fio --name=seqwrite --rw=write --direct=1 --ioengine=libaio --bs=8k --numjobs=16 --size=1G --runtime=600 --group_reporting
seqwrite: (g=0): rw=write, bs=(R) 8192B-8192B, (W) 8192B-8192B, (T) 8192B-8192B, ioengine=libaio, iodepth=1
...
fio-3.25
Starting 16 processes
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
seqwrite: Laying out IO file (1 file / 1024MiB)
Jobs: 16 (f=16): [W(16)][100.0%][w=3218MiB/s][w=412k IOPS][eta 00m:00s]
seqwrite: (groupid=0, jobs=16): err= 0: pid=1680991: Sat Jan 8 12:07:53 2022
write: IOPS=398k, BW=3110MiB/s (3261MB/s)(16.0GiB/5268msec); 0 zone resets
slat (usec): min=6, max=108192, avg=36.06, stdev=429.09
clat (nsec): min=834, max=17356k, avg=1526.14, stdev=15762.08
lat (usec): min=7, max=108208, avg=37.90, stdev=429.63
clat percentiles (nsec):
| 1.00th=[ 916], 5.00th=[ 940], 10.00th=[ 956], 20.00th=[ 988],
| 30.00th=[ 1048], 40.00th=[ 1160], 50.00th=[ 1304], 60.00th=[ 1448],
| 70.00th=[ 1592], 80.00th=[ 1768], 90.00th=[ 2128], 95.00th=[ 2608],
| 99.00th=[ 4320], 99.50th=[ 5600], 99.90th=[11840], 99.95th=[16768],
| 99.99th=[33536]
bw ( MiB/s): min= 2074, max= 3972, per=100.00%, avg=3145.32, stdev=37.36, samples=158
iops : min=265492, max=508464, avg=402599.37, stdev=4781.81, samples=158
lat (nsec) : 1000=22.22%
lat (usec) : 2=64.94%, 4=11.60%, 10=1.10%, 20=0.13%, 50=0.01%
lat (usec) : 100=0.01%, 250=0.01%, 500=0.01%, 750=0.01%, 1000=0.01%
lat (msec) : 2=0.01%, 4=0.01%, 10=0.01%, 20=0.01%
cpu : usr=8.90%, sys=66.20%, ctx=41092, majf=0, minf=402
IO depths : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued rwts: total=0,2097152,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=1
Run status group 0 (all jobs):
WRITE: bw=3110MiB/s (3261MB/s), 3110MiB/s-3110MiB/s (3261MB/s-3261MB/s), io=16.0GiB (17.2GB), run=5268-5268msec
But, I am quite pleased to report around 3GB/s.
Based on previous benchmarks I have performed against 970 evo NVMes… these numbers are extremely good.
Results¶
Based on the small amount of performance testing, I believe these devices are meeting my expectations of performance. Everything seems to be working at the same speed I was achieving before, and I successfully freed up 3 entire PCIe slots on my server.
You may or may not have noticed- but, in a previous post, I powered down my brocade ICX6610 which was providing the 40Gbit connectivity. You may have also noticed, I reinstalled the 40G ConnectX-3 NIC during this post….
And- moreso, if you have paid attention to my reddit comments, you may have picked up future 40Gbit connectivity to my main computer. To confirm, I do have 50 feet of fiber cable in the mail to complete this project… So, if anyone is curious to see iSCSI benchmarks over 40Gbit, stay tuned! Also- you may notice earlier in this post, I ordered TWO quad NVMe cards…. More to come on this as well.
